Engine Coolant Temperature Sensor: Components

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (1 Of 2)
G04061657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

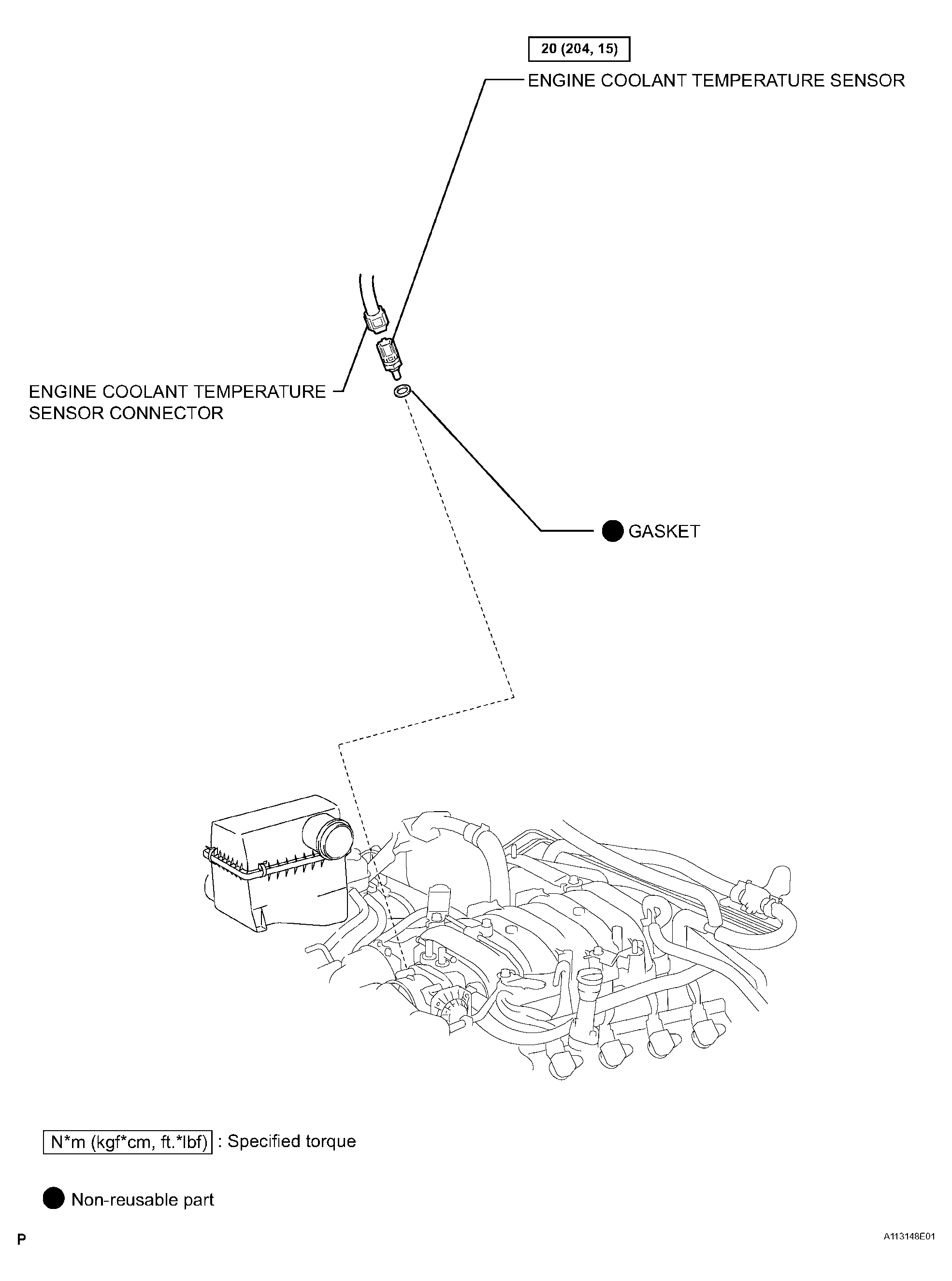

Fig 2: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
G04061658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
