System Diagram

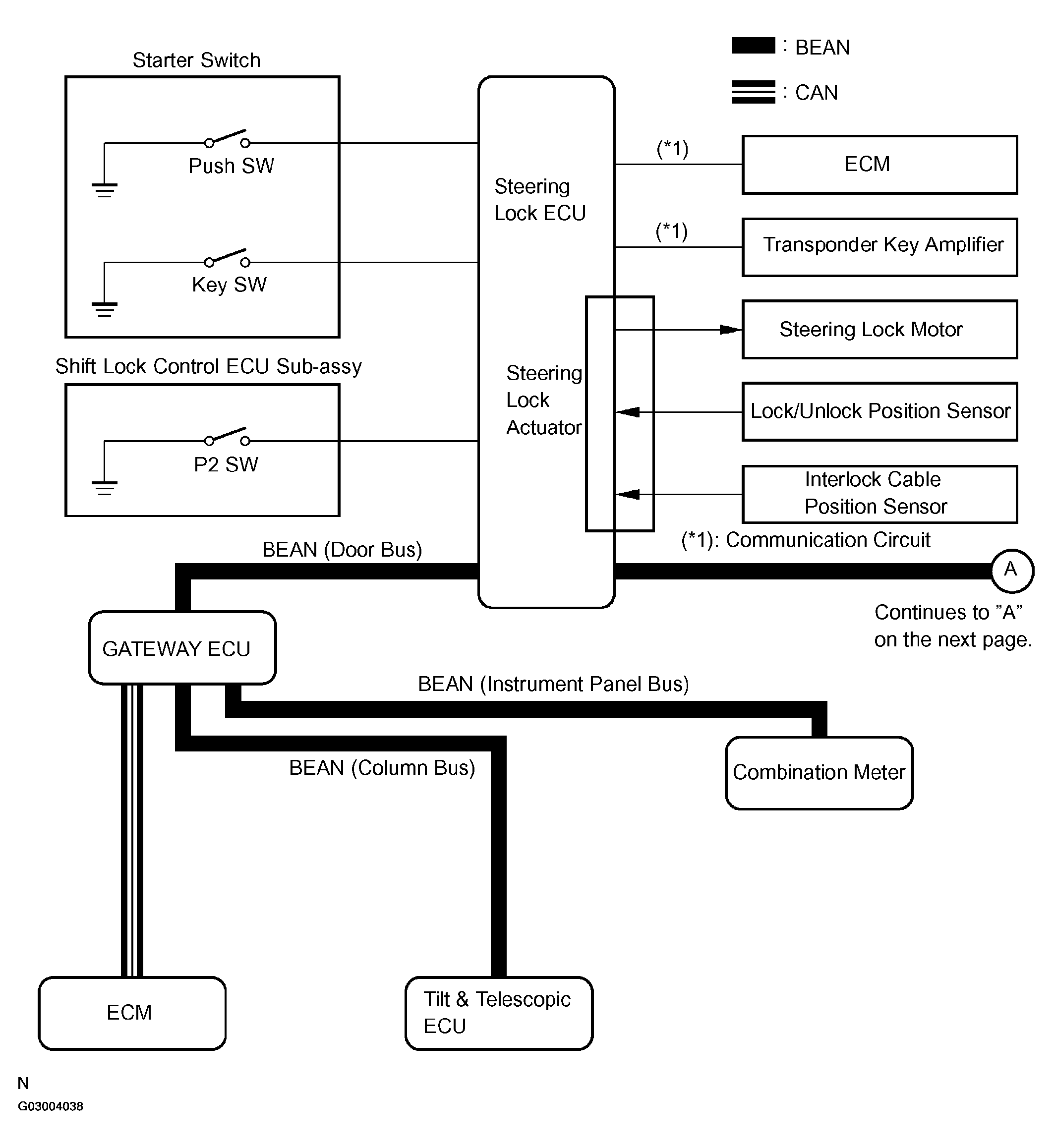

Fig 1: Steering Lock System Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

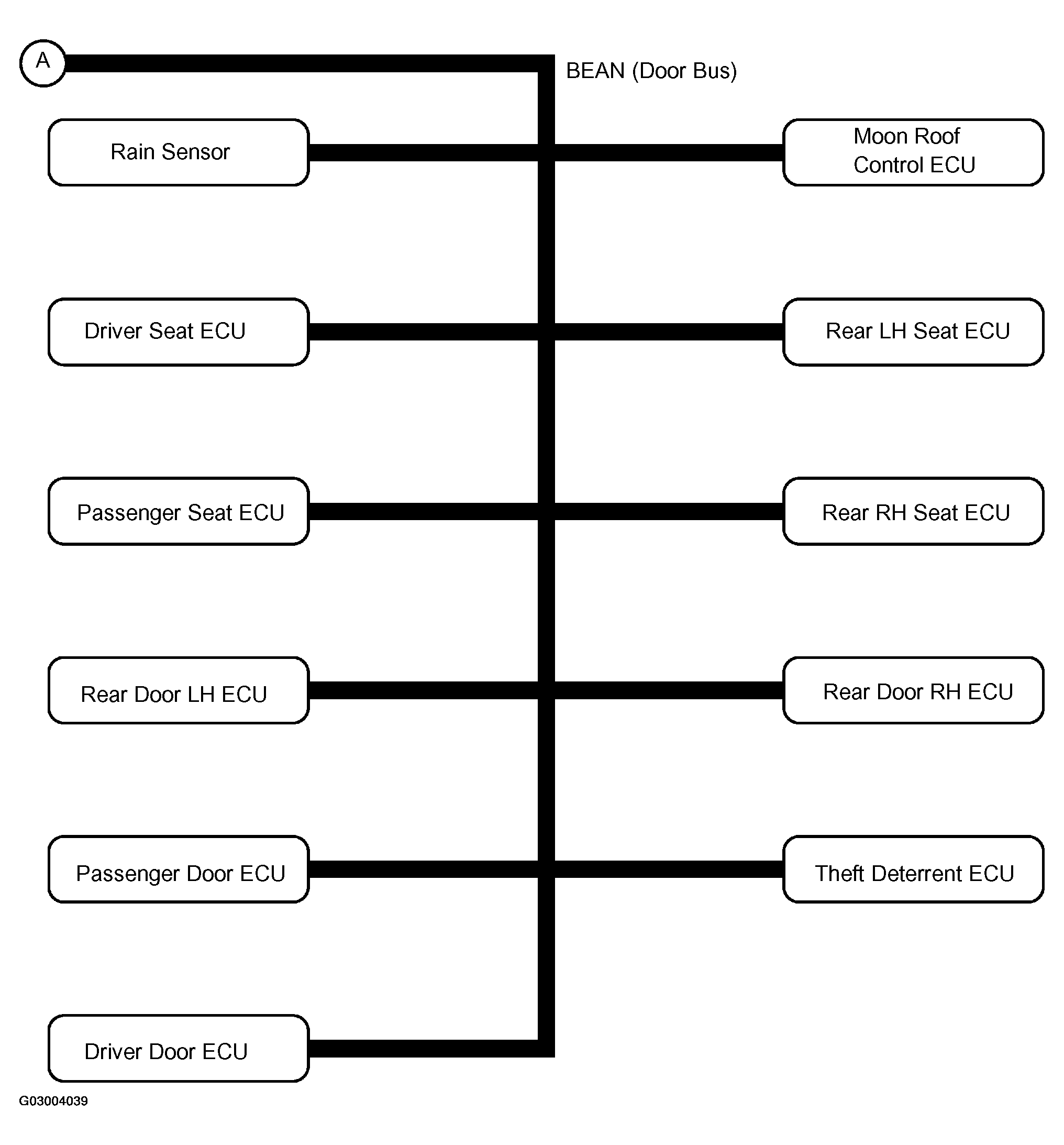

Fig 2: Steering Lock System Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Input and output signals of each ECU.

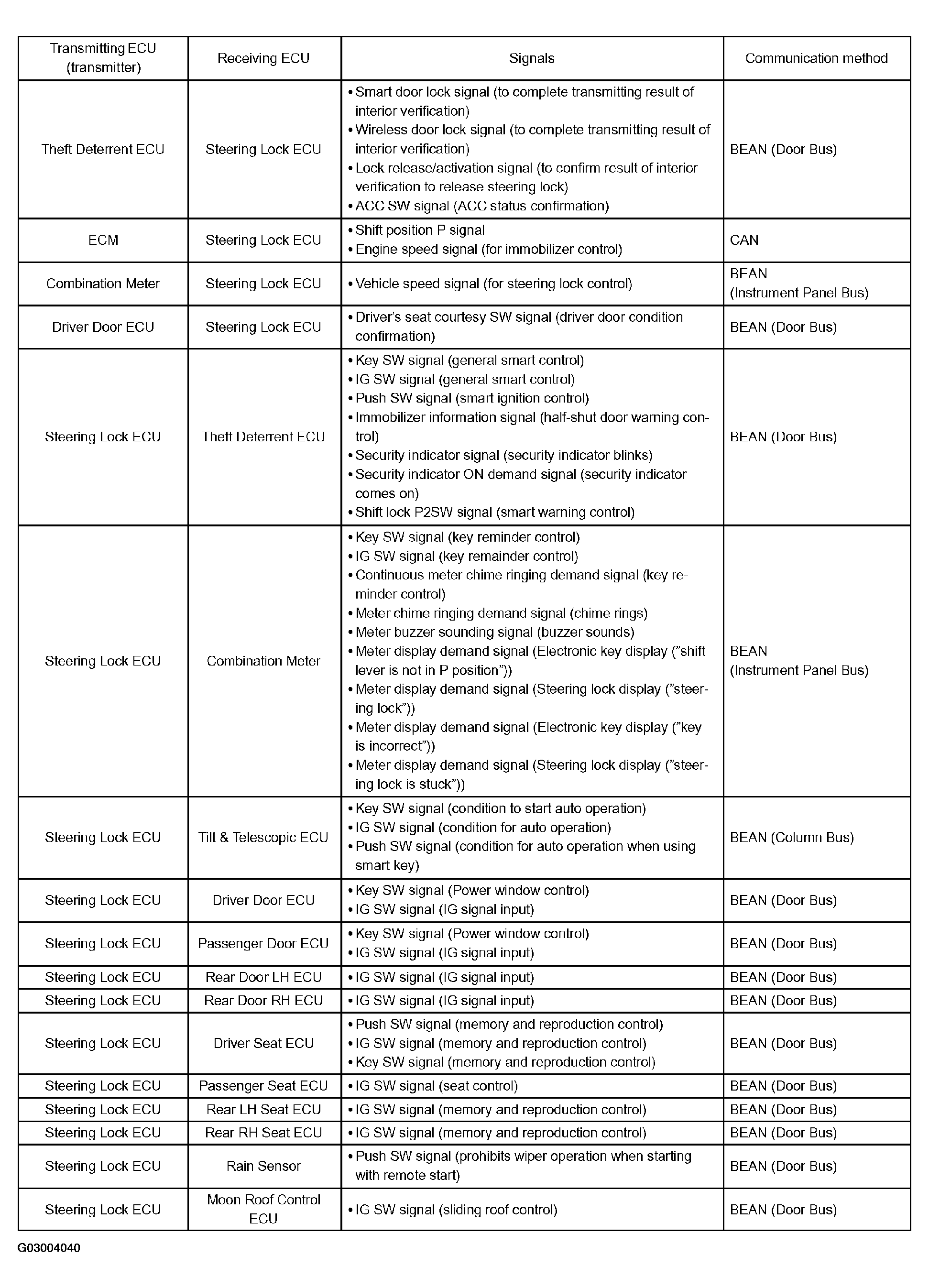

Fig 3: Each ECU Input And Output Signals Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
