DTC B2780: Push Switch/Key Unlock Warning Switch Malfunction: Wiring Diagram

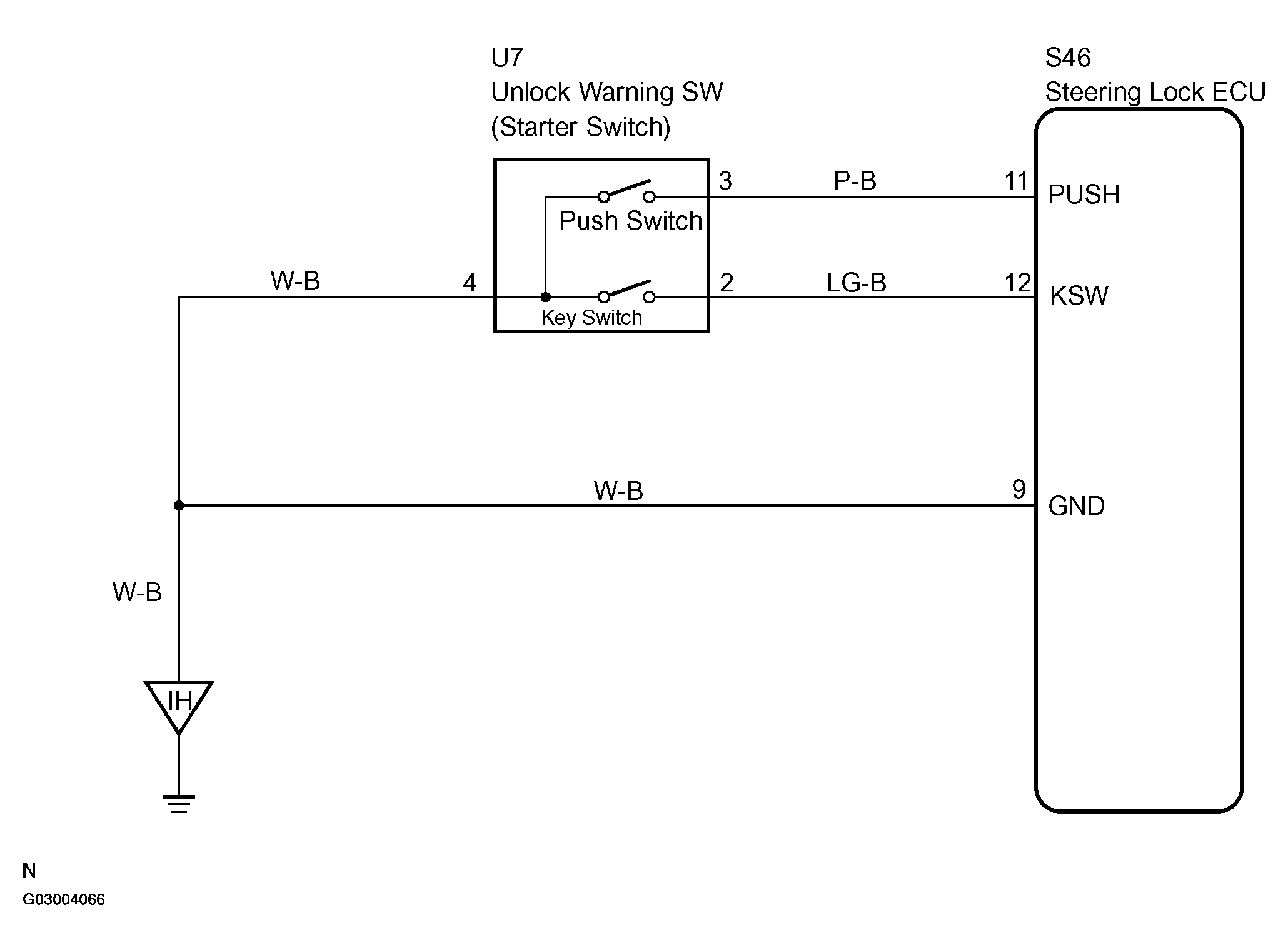

Fig 1: Push Switch/Key Unlock Warning Switch Circuit
G03004066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
