ECM Power Source Circuit: Wiring Diagram

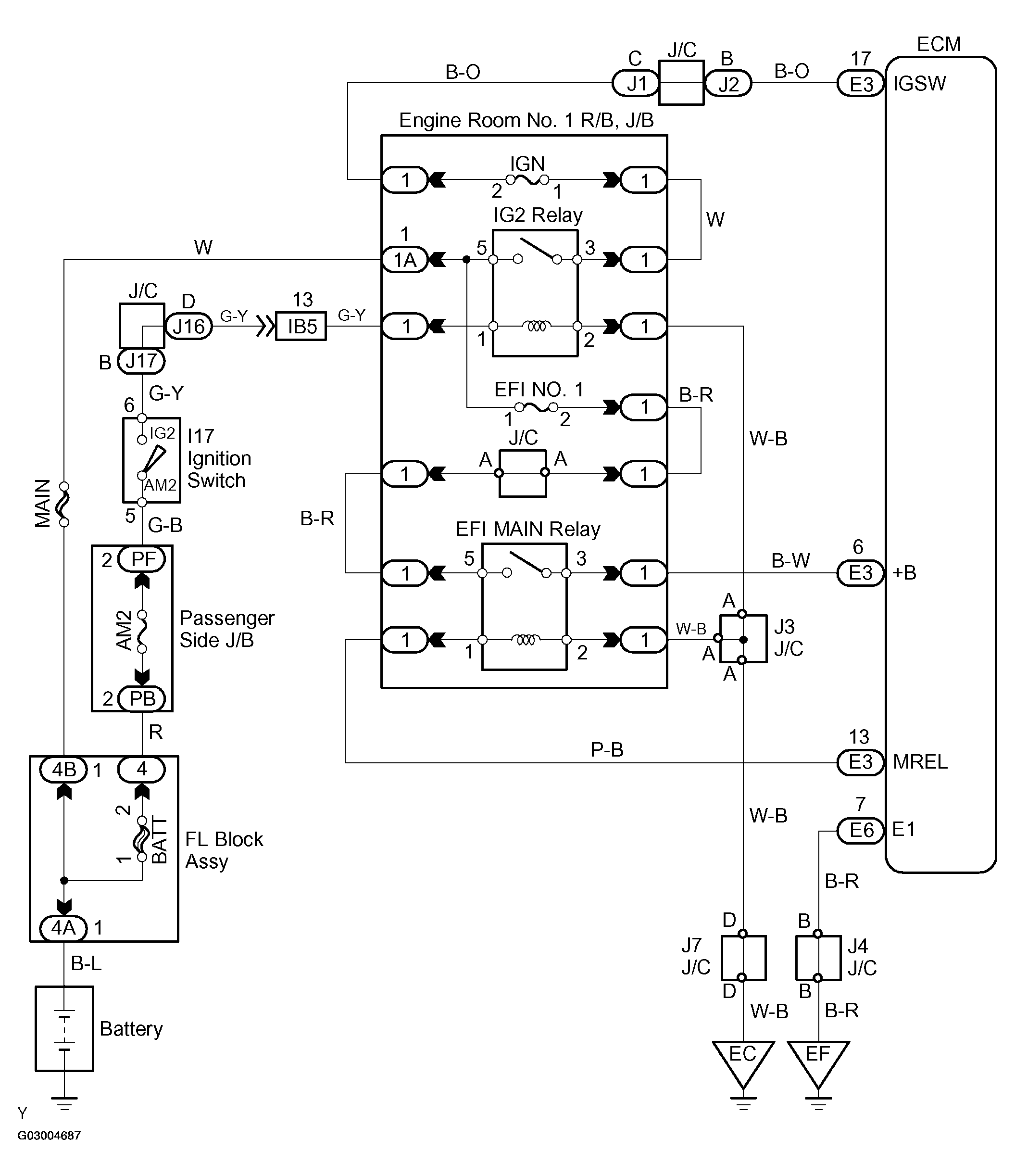

Fig 1: DTC U0001 - Wiring Diagram

G03004687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
