DTC P0121: Throttle Pedal Position Sensor/Switch "A" Circuit Range/Performance Problem: Wiring Diagram

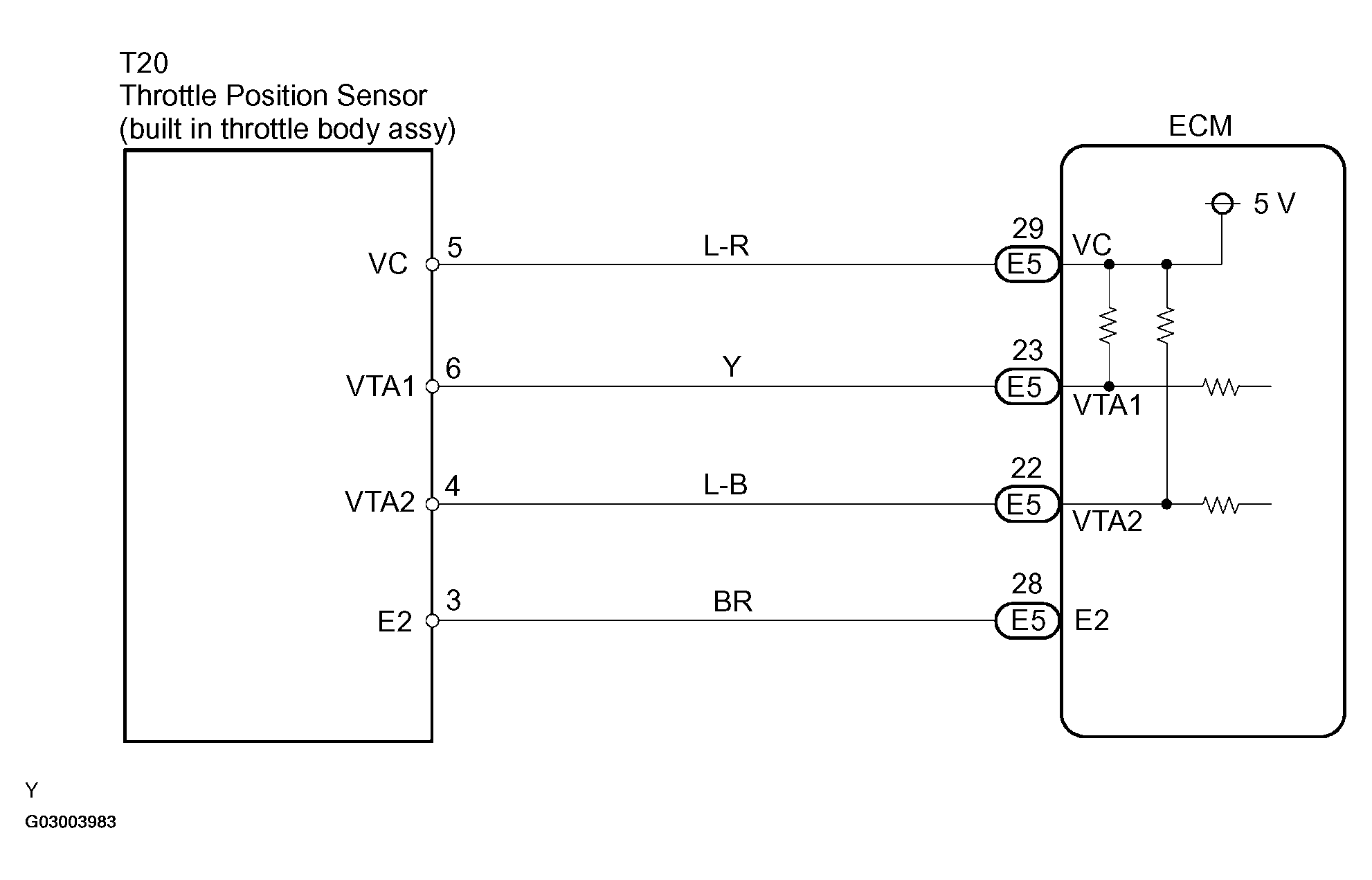

Fig 1: DTC P0121 - Wiring Diagram

G03003983

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
