Front Seat ASSY: Components

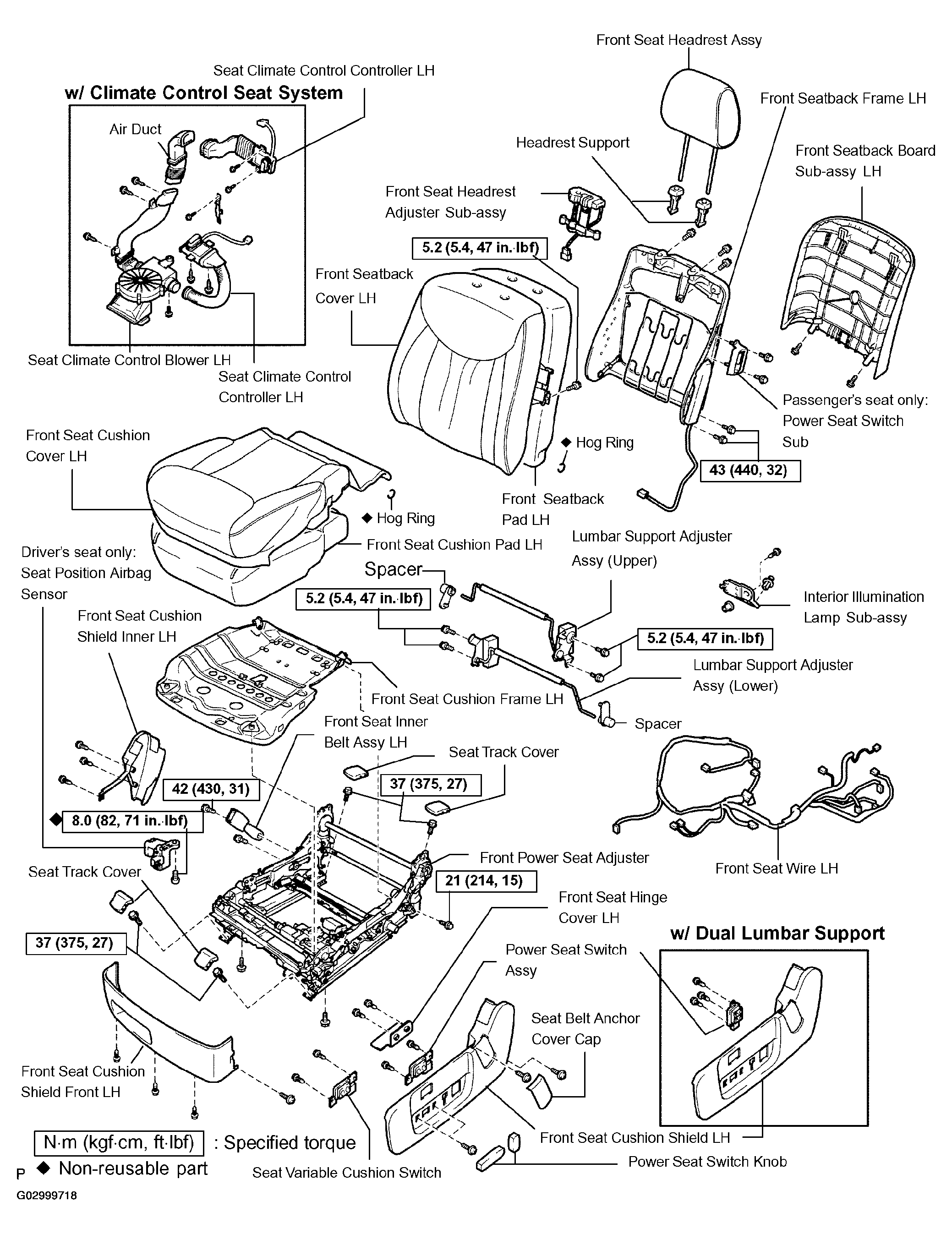

Fig 1: Identifying Front Seat Assy Components (1 Of 2)
G02999718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

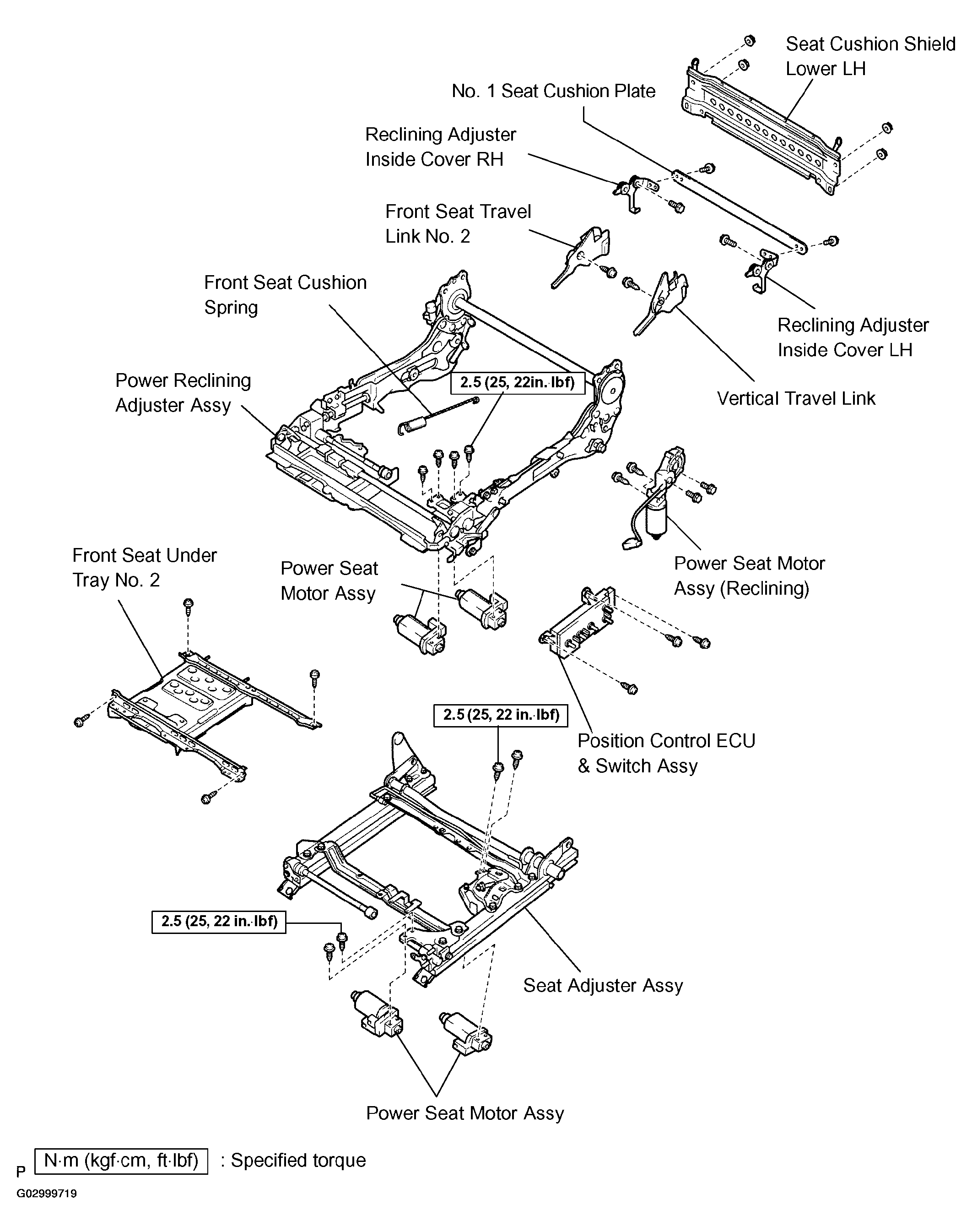

Fig 2: Identifying Front Seat Assy Components (2 Of 2)
G02999719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
