Wireless Door Lock Control System (W/Smart Key System): Location

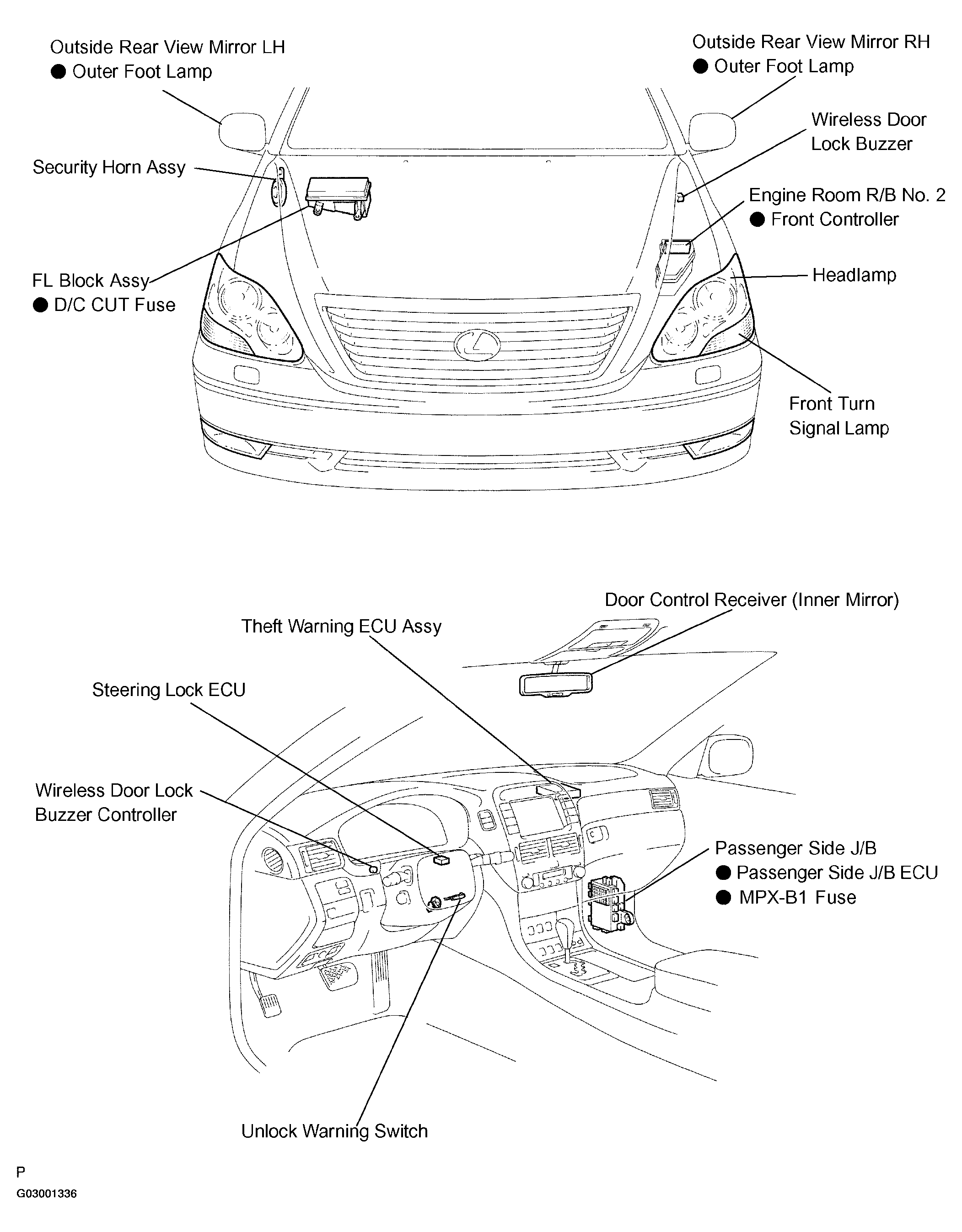

Fig 1: Identifying Wireless Door Lock Control System Components Location (1 Of 2)
G03001336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

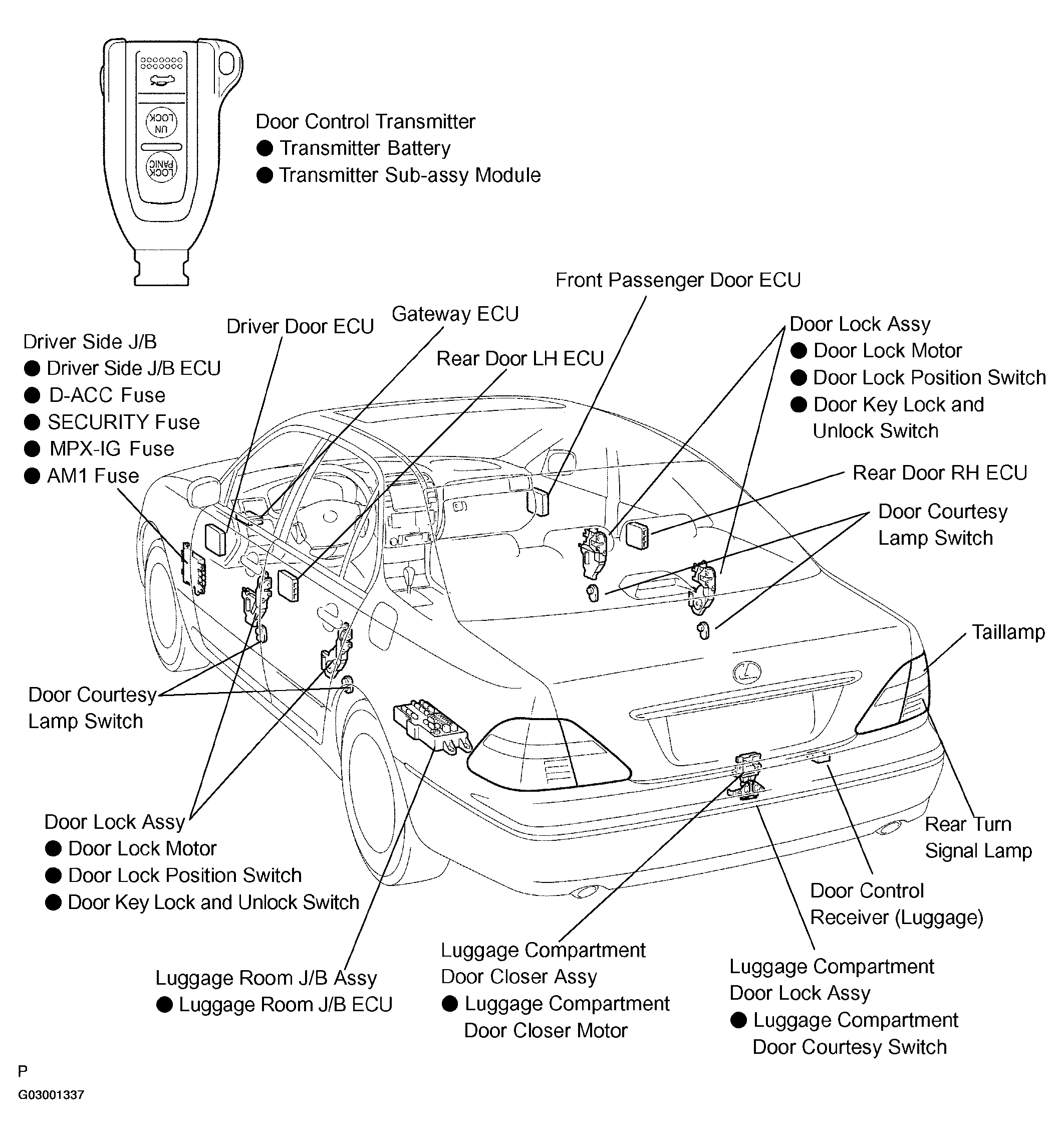

Fig 2: Identifying Wireless Door Lock Control System Components Location (2 Of 2)
G03001337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
