POWER SOURCE CIRCUIT (DRIVER SIDE Junction Block ECU): Wiring Diagram

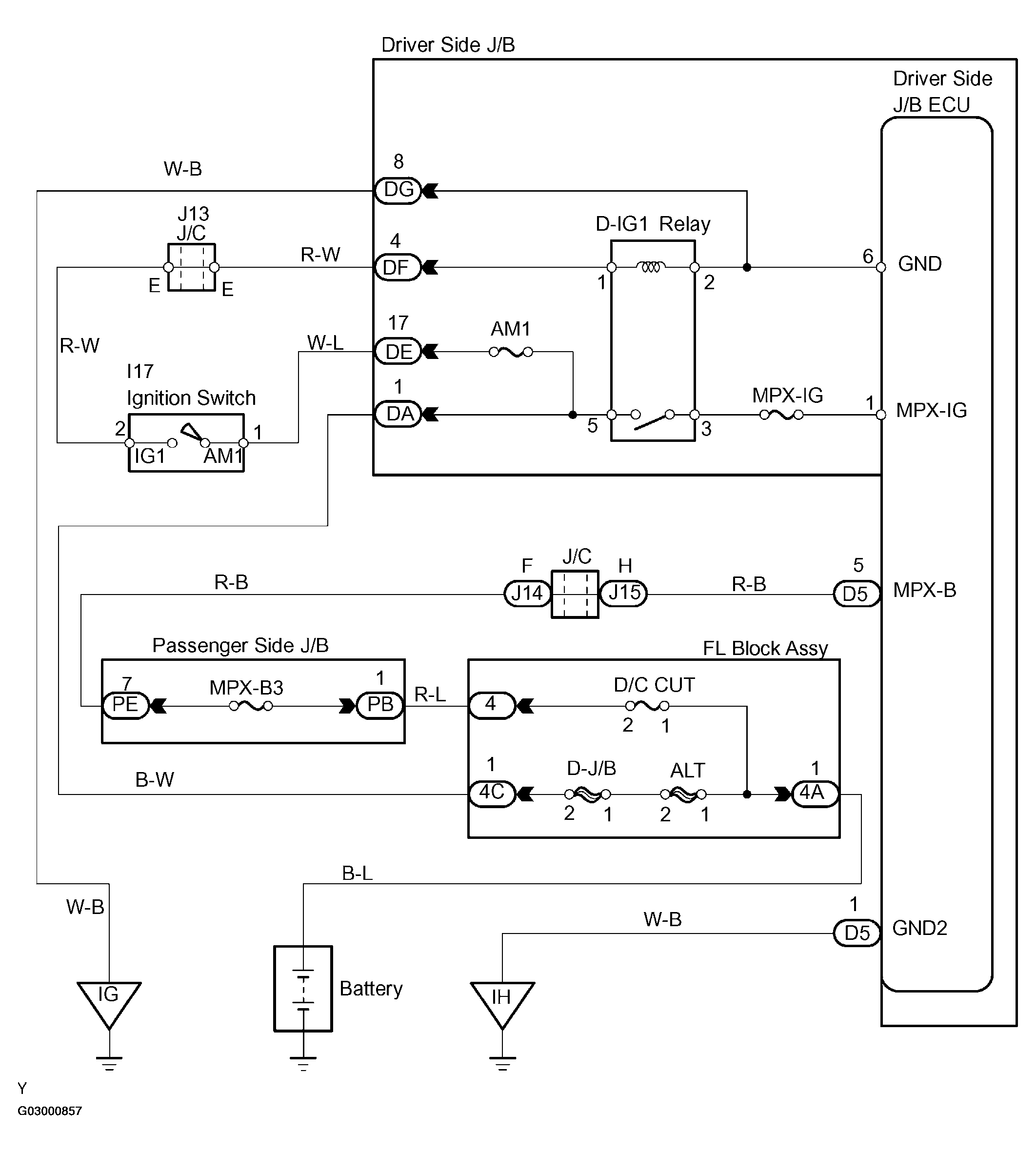

Fig 1: Power Source Circuit Wiring Diagram (Driver Side J/B ECU)

G03000857

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
