Mirror Retract Switch Circuit: Wiring Diagram

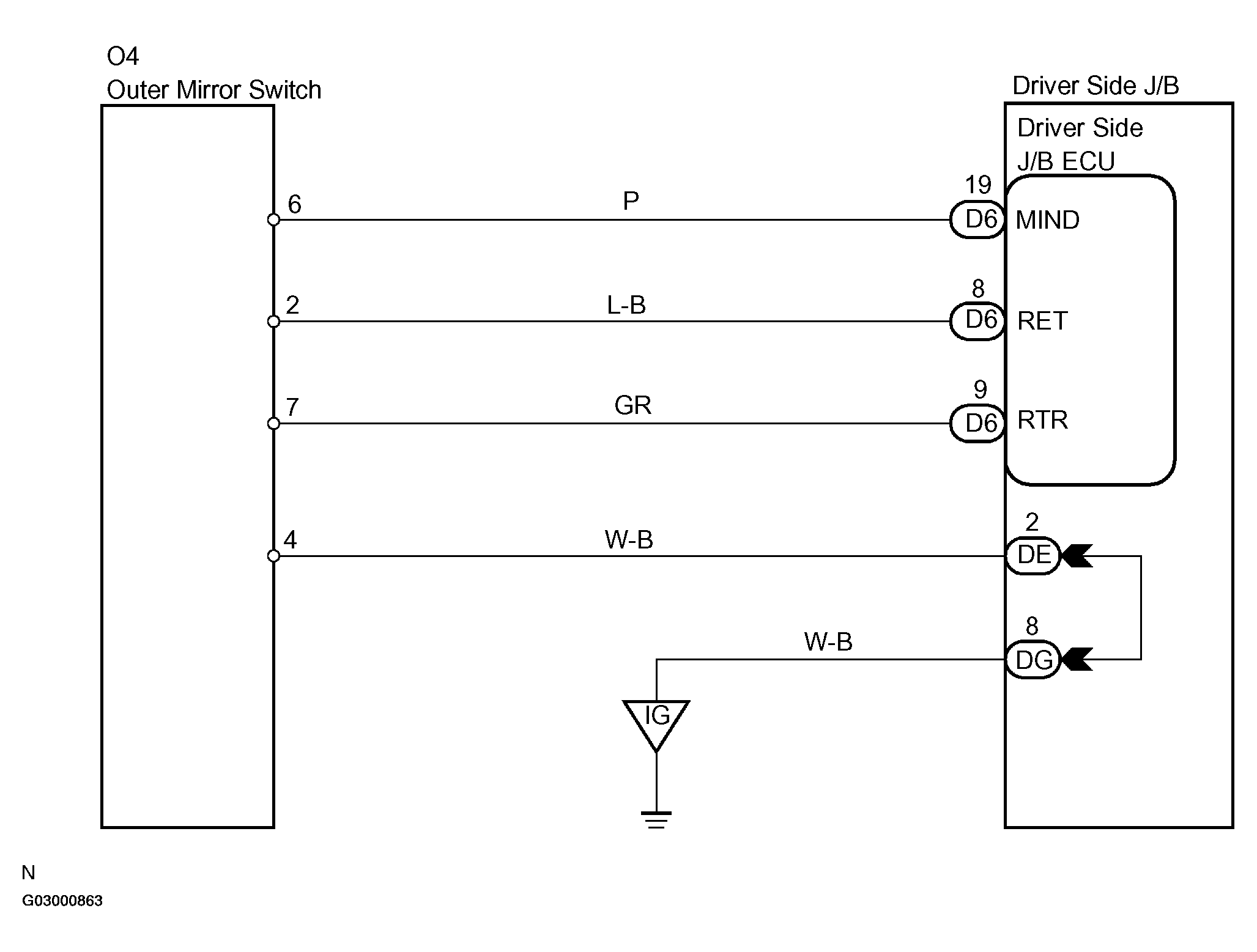

Fig 1: Mirror Retract Switch Circuit Wiring Diagram

G03000863

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
