System Diagram

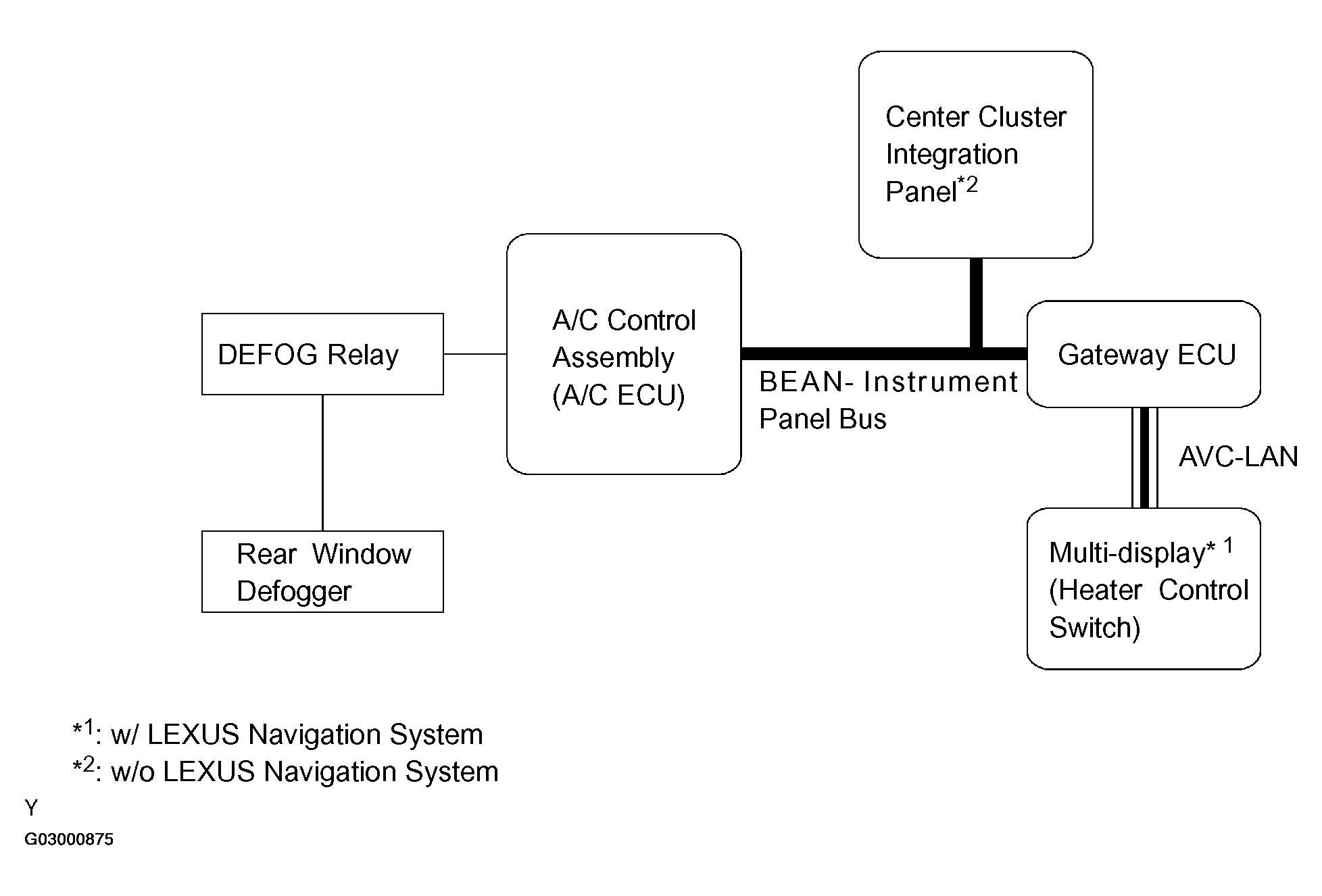

Fig 1: Defogger System Diagram
G03000875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION TABLE

Sender Receiver Signal Line
Multi-display(1) A/C control assembly Rear defogger switch signal BEAN
Center cluster integration panel (2) A/C control assembly Rear defogger switch signal BEAN/AVC-LAN
(1) w/ LEXUS navigation system
(2) w/o LEXUS navigation system
