Defogger System - Diagnostics: Location

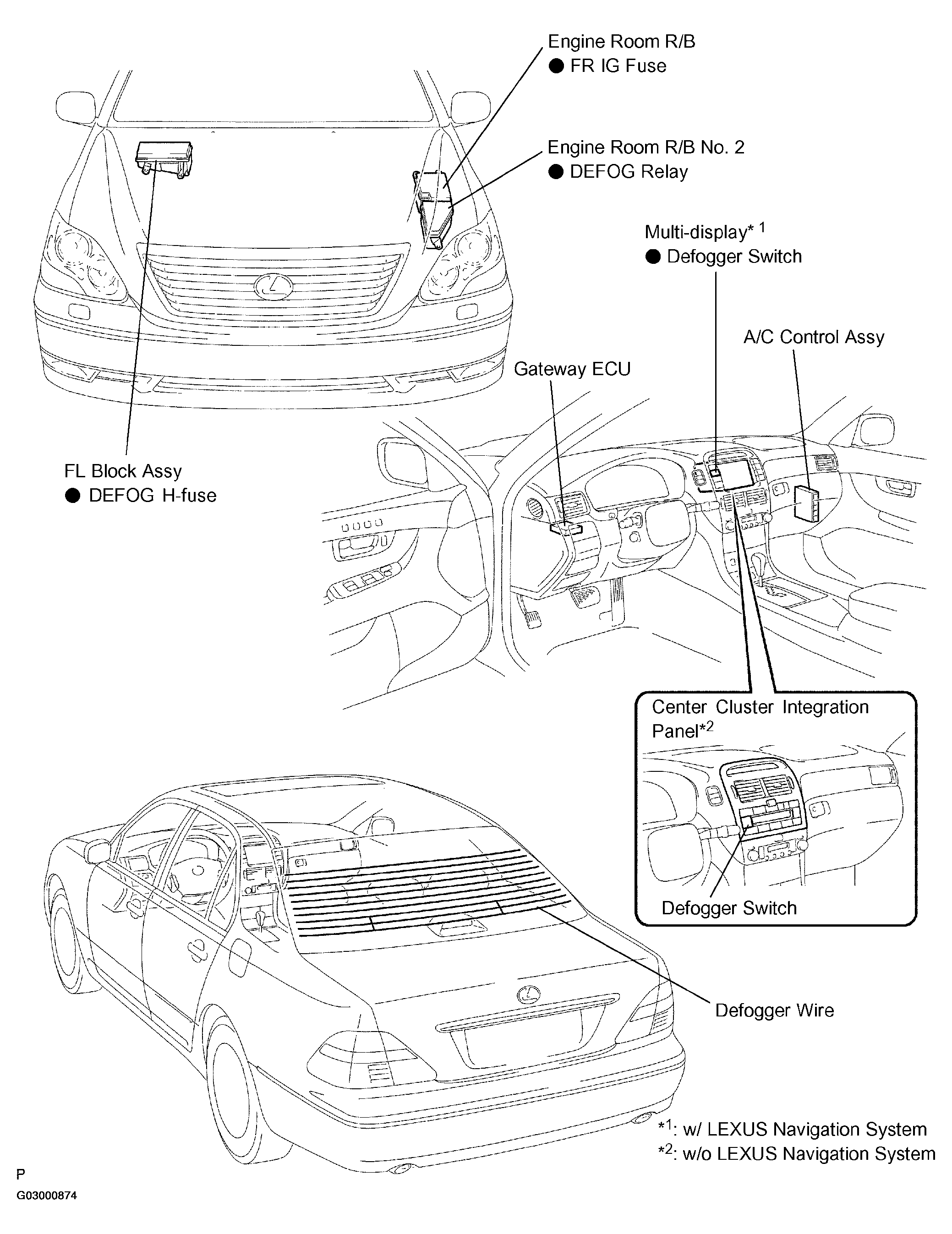

Fig 1: Identifying Defogger System Components And Replacements Location

G03000874

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
