DTC P2121: Throttle/Pedal Position Sensor/Switch "D" Circuit Range/Performance: Wiring Diagram

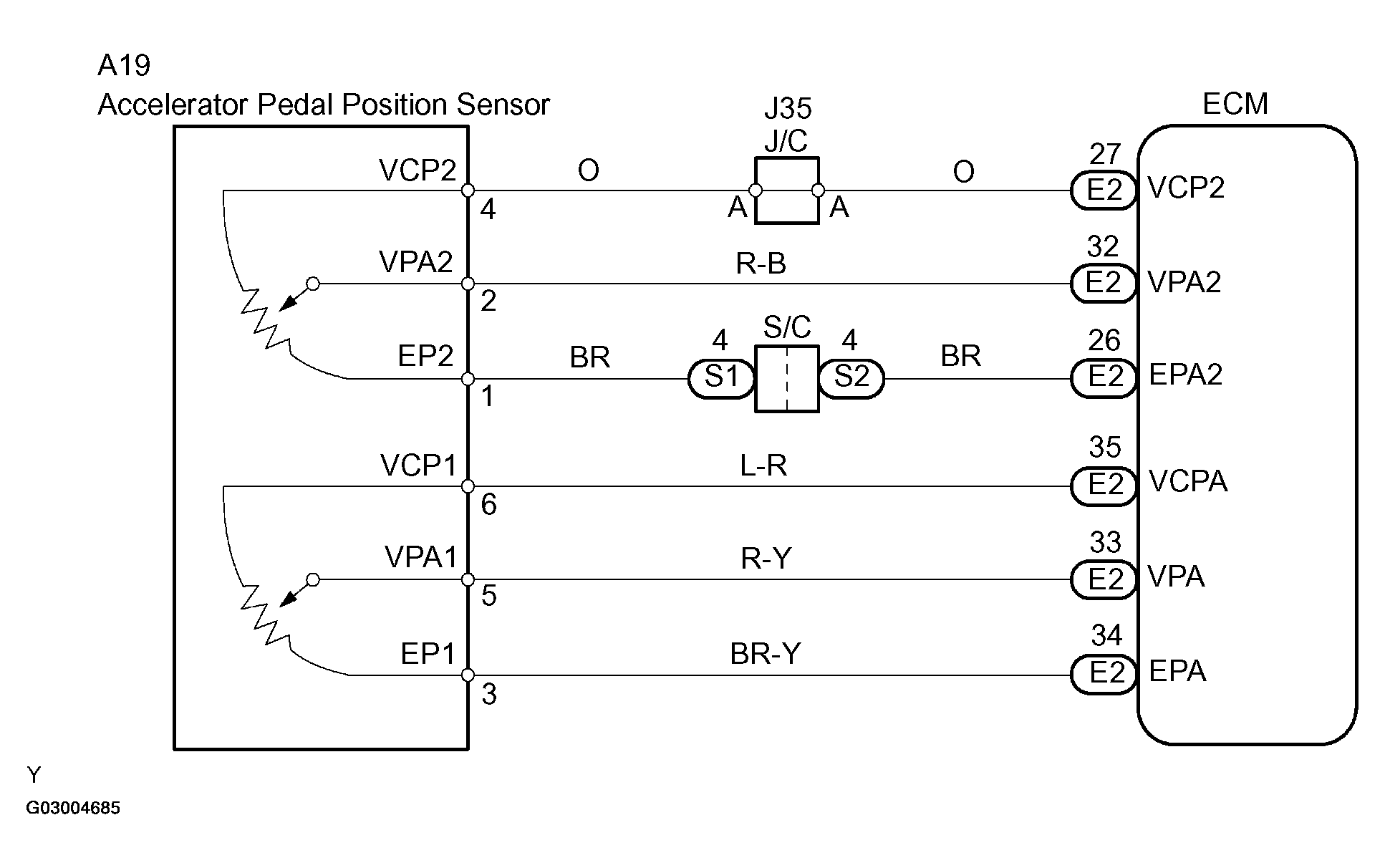

Fig 1: DTC P2121 - Wiring Diagram

G03004685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
