Inspection Procedure

  1. CHECK CAN BUS LINES FOR SHORT CIRCUIT (DLC3 SUB BUS LINE)

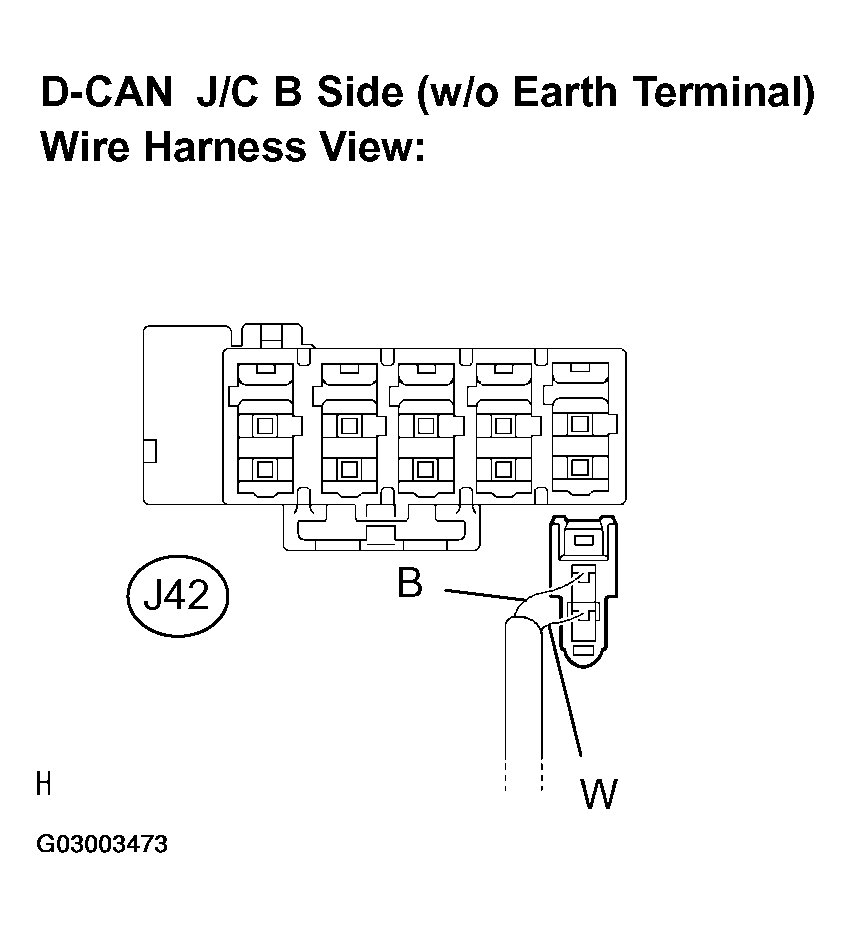

    Fig 1: Disconnecting DLC3 Sub Bus Line Connector (J42) From D-CAN J/C B Side (W/O Earth Terminal)
    G03003473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch to the LOCK position.
    2. Disconnect the DLC3 sub bus line connector (J42) from the D-CAN J/C B side (w/o earth terminal).
      NOTE:
      • Before disconnecting the connector, make a note of where it is connected.
      • Reconnect the connector to its original position.
      Fig 2: Identifying DLC3 Connector terminals
      G03003474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 1 MΩ or more

    NG: REPAIR OR REPLACE DLC3 SUB BUS LINE OR CONNECTOR (CAN-H, CANL)

    OK: GO TO NEXT STEP

  2. CONNECT CONNECTOR
    1. Reconnect the DLC3 sub bus line connector (J42) to the D-CAN J/C B side (w/o earth terminal).
  3. CHECK CAN BUS LINES FOR SHORT CIRCUIT (CAN BUSES TO D-CAN J/C)
    Fig 3: Disconnecting CAN Main Bus Line Connector (J45) From P-CAN J/C A Side (W/Earth Terminal)
    G03003475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the CAN main bus line connector (J45) from the P-CAN J/C A side (w/earth terminal).
      NOTE:
      • Before disconnecting the connector, make a note of where it is connected.
      • Reconnect the connector to its original position.
      Fig 4: Identifying DLC3 Connector terminals
      G03003476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 108 to 132 Ω

    OK: Go to step   26

    NG: GO TO NEXT STEP

  4. CONNECT CONNECTOR
    1. Reconnect the CAN main bus line connector (J45) to the P-CAN J/C A side (w/earth terminal).
  5. CHECK CAN BUS LINES FOR SHORT CIRCUIT (SUSPENSION CONTROL ECU SUB BUS LINE)
    Fig 5: Disconnecting Suspension Control ECU Sub Bus Line Connector (J38) From D-CAN J/C A Side (W/Earth Terminal)
    G03003477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: For vehicles without electronic modulated air suspension, go to step  7.
    1. Disconnect the suspension control ECU sub bus line connector (J38) from the D-CAN J/C A side (w/earth terminal).
      NOTE:
      • Before disconnecting the connector, make a note of where it is connected.
      • Reconnect the connector to its original position.
      Fig 6: Identifying DLC3 Connector terminals
      G03003478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: Go to step   16

    NG: GO TO NEXT STEP

  6. CONNECT CONNECTOR
    1. Reconnect the suspension control ECU sub bus line connector (J38) to the D-CAN J/C A side (w/earth terminal).
  7. CHECK CAN BUS LINES FOR SHORT CIRCUIT (GATEWAY ECU)

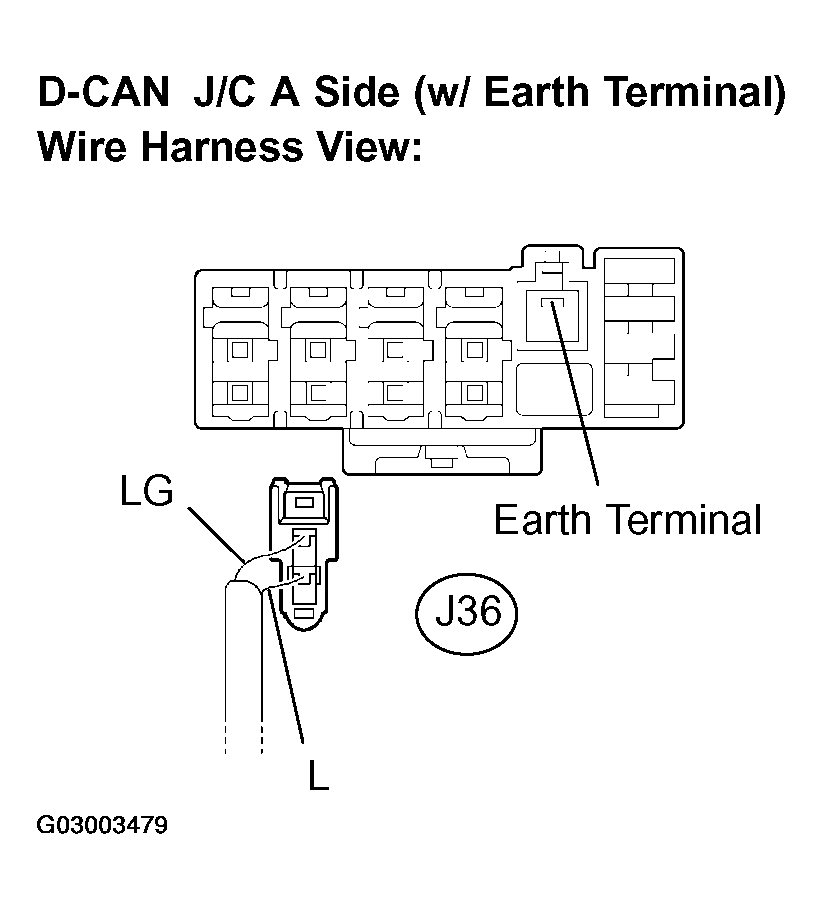

    Fig 7: Disconnecting Gateway ECU Sub Bus Line Connector (J36) From D-CAN J/C A Side (W/Earth Terminal)
    G03003479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the gateway ECU sub bus line connector (J36) from the D-CAN J/C A side (w/earth terminal).
      NOTE:
      • Before disconnecting the connector, make a note of where it is connected.
      • Reconnect the connector to its original position.
      Fig 8: Identifying DLC3 Connector terminals
      G03003480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: Go to step   18

    NG: GO TO NEXT STEP

  8. CONNECT CONNECTOR
    1. Reconnect the gateway ECU sub bus line connector (J36) to the D-CAN J/C A side (w/earth terminal).
  9. CHECK CAN BUS LINES FOR SHORT CIRCUIT (ECM SUB BUS LINE)
    Fig 9: Disconnecting ECM Sub Bus Line Connector (J40) From D-CAN J/C B Side (W/O Earth Terminal)
    G03003481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the ECM sub bus line connector (J40) from the D-CAN J/C B side (w/o earth terminal).
      NOTE:
      • Before disconnecting the connector, make a note of where it is connected.
      • Reconnect the connector to its original position.
      Fig 10: Identifying DLC3 Connector terminals
      G03003482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: Go to step   20

    NG: GO TO NEXT STEP

  10. CONNECT CONNECTOR
    1. Reconnect the ECM sub bus line connector (J40) to the D-CAN J/C B side (w/o earth terminal).
  11. CHECK CAN BUS LINES FOR SHORT CIRCUIT (SKID CONTROL ECU WITH ACTUATOR SUB BUS LINE)

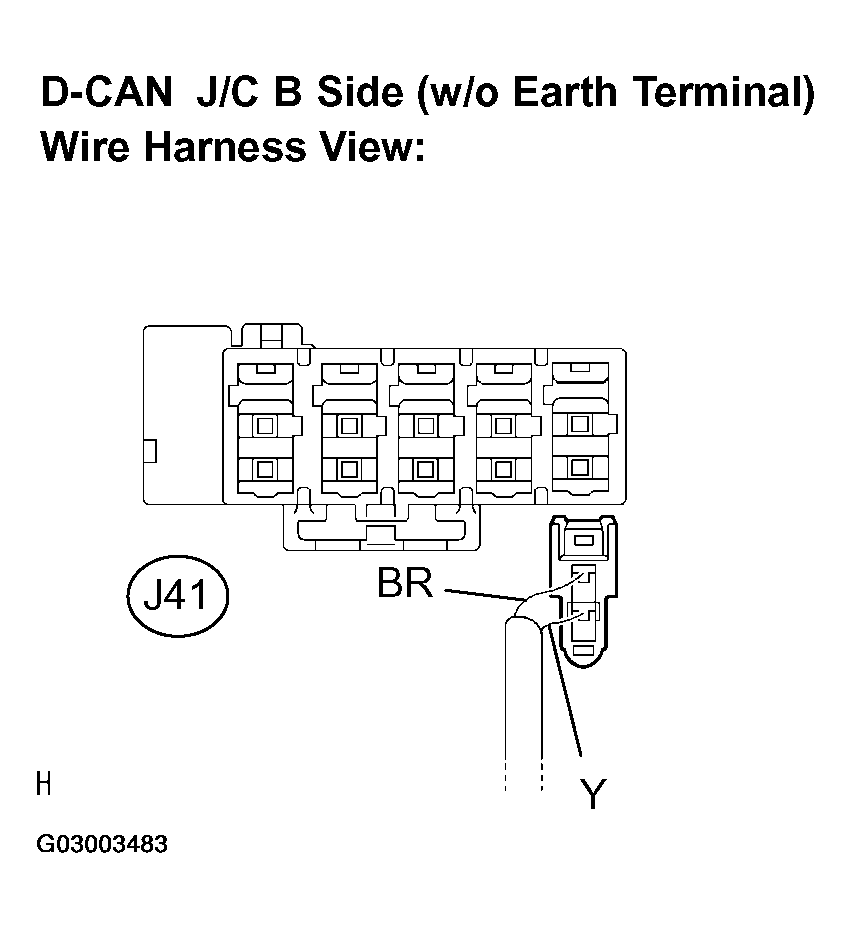

    Fig 11: Disconnecting Skid Control ECU Sub Bus Line Connector (J41) From D-CAN J/C (W/O Earth Terminal)
    G03003483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the skid control ECU sub bus line connector (J41) from the D-CAN J/C (w/o earth terminal).
      NOTE:
      • Before disconnecting the connector, make a note of where it is connected.
      • Reconnect the connector to its original position.
      Fig 12: Identifying DLC3 Connector terminals
      G03003484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: Go to step   22

    NG: GO TO NEXT STEP

  12. CONNECT CONNECTOR
    1. Reconnect the skid control ECU sub bus line connector (J41) to the D-CAN J/C B side (w/o earth terminal).
  13. CHECK CAN BUS LINES FOR SHORT CIRCUIT (STEERING SENSOR SUB BUS LINE)
    Fig 13: Disconnecting Steering Sensor Sub Bus Line Connector (J43) From D-CAN J/C B Side (W/O Earth Terminal)
    G03003485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the steering sensor sub bus line connector (J43) from the D-CAN J/C B side (w/o earth terminal).
      NOTE:
      • Before disconnecting the connector, make a note of where it is connected.
      • Reconnect the connector to its original position.
      Fig 14: Identifying DLC3 Connector terminals
      G03003486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: Go to step   24

    NG: GO TO NEXT STEP

  14. CONNECT CONNECTOR
    1. Reconnect the steering sensor sub bus line connector (J43) to the D-CAN J/C B side (w/o earth terminal).
  15. CHECK CAN BUS LINES FOR SHORT CIRCUIT (D-CAN J/C)

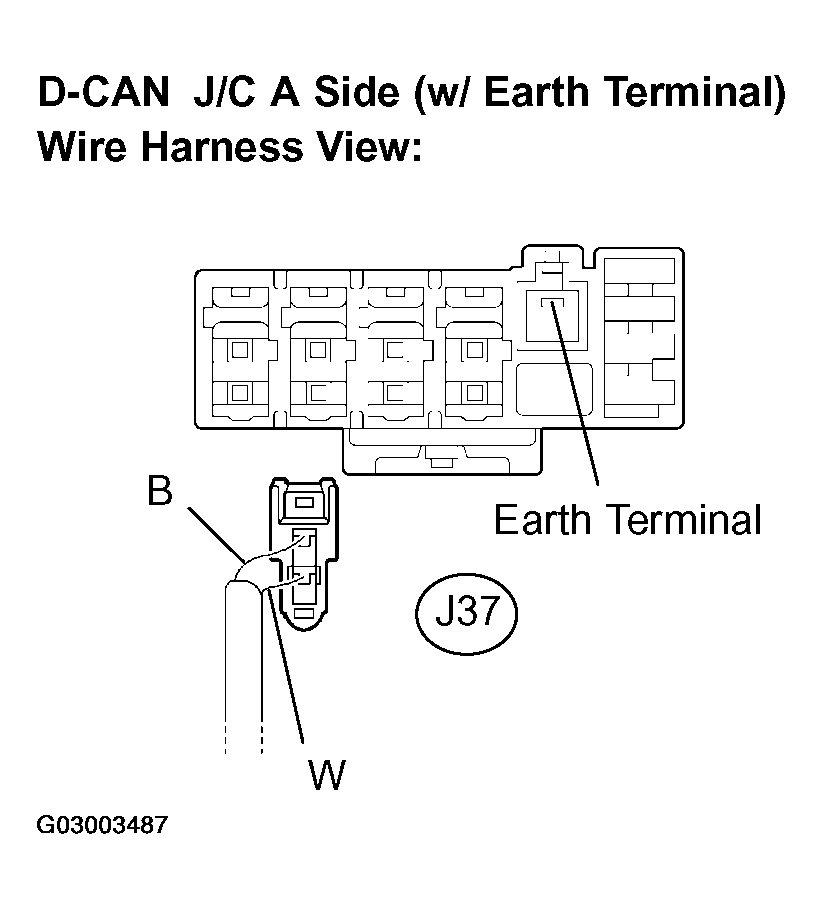

    Fig 15: Disconnecting CAN Main Bus Line Connector (J37) From D-CAN J/C A Side (W/Earth Terminal)
    G03003487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the CAN main bus line connector (J37) from the D-CAN J/C A side (w/earth terminal).
      NOTE:
      • Before disconnecting the connector, make a note of where it is connected.
      • Reconnect the connector to its original position.
      Fig 16: Identifying DLC3 Connector terminals
      G03003488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 108 to 132 Ω

    NG: REPLACE JUNCTION CONNECTOR (D-CAN J/C)

    OK: REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (D-CAN J/C - P-CAN J/C)

  16. CONNECT CONNECTOR
    1. Reconnect the suspension control ECU sub bus line connector (J38) to the D-CAN J/C A side (w/earth terminal).
  17. CHECK CAN BUS LINES FOR SHORT CIRCUIT (SUSPENSION CONTROL ECU SUB BUS LINE)
    Fig 17: Identifying DLC3 Connector terminals
    G03003489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the suspension control ECU connector (A20).
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: REPLACE SUSPENSION CONTROL ECU (SEE  REPLACEMENT  )

    OK: REPAIR OR REPLACE SUSPENSION CONTROL ECU SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)

  18. CONNECT CONNECTOR
    1. Reconnect the gateway ECU sub bus line connector (J36) to the D-CAN J/C (w/earth terminal).
  19. CHECK CAN BUS LINES FOR SHORT CIRCUIT (GATEWAY ECU SUB BUS LINE)
    Fig 18: Identifying DLC3 Connector terminals
    G03003490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the gateway ECU sub bus line connector (G3).
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: REPLACE GATEWAY ECU

    NG: GO TO NEXT STEP

    REPAIR OR REPLACE GATEWAY ECU SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)

  20. CONNECT CONNECTOR
    1. Reconnect the ECM sub bus line connector (J40) to the D-CAN J/C B side (w/o earth terminal).
  21. CHECK CAN BUS LINES FOR SHORT CIRCUIT (ECM SUB BUS LINE)
    Fig 19: Identifying DLC3 Connector terminals
    G03003491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the ECU connector (E3).
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: REPLACE ECM (SEE  REPLACEMENT  )

    NG: GO TO NEXT STEP

    REPAIR OR REPLACE ECM SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)

  22. CONNECT CONNECTOR
    1. Reconnect the skid control ECU sub bus line connector (J41) to the D-CAN J/C B side (w/o earth terminal).
  23. CHECK CAN BUS LINES FOR SHORT CIRCUIT (SKID CONTROL ECU SUB BUS LINE)
    Fig 20: Identifying DLC3 Connector terminals
    G03003492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the skid control ECU connector (S42).
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) -D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: REPLACE SKID CONTROL ECU WITH (SEE  REPLACEMENT  ) ACTUATOR

    NG: REPAIR OR REPLACE SKID CONTROL ECU SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)

  24. CONNECT CONNECTOR
    1. Reconnect the steering sensor sub bus line connector (J43) to the D-CAN J/C B side (w/o earth terminal).
  25. CHECK CAN BUS LINES FOR SHORT CIRCUIT (STEERING SENSOR SUB BUS LINE)
    Fig 21: Identifying DLC3 Connector terminals
    G03003493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the steering sensor connector (S16).
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: REPLACE STEERING SENSOR (SEE  REPLACEMENT  )

    NG: REPAIR OR REPLACE STEERING SENSOR SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)

  26. CONNECT CONNECTOR
    1. Reconnect the CAN main bus line connector (J45) to the P-CAN J/C A side (w/earth terminal).
  27. CHECK CAN BUS LINES FOR SHORT CIRCUIT (CAN BUSES TO LUG-CAN J/C)

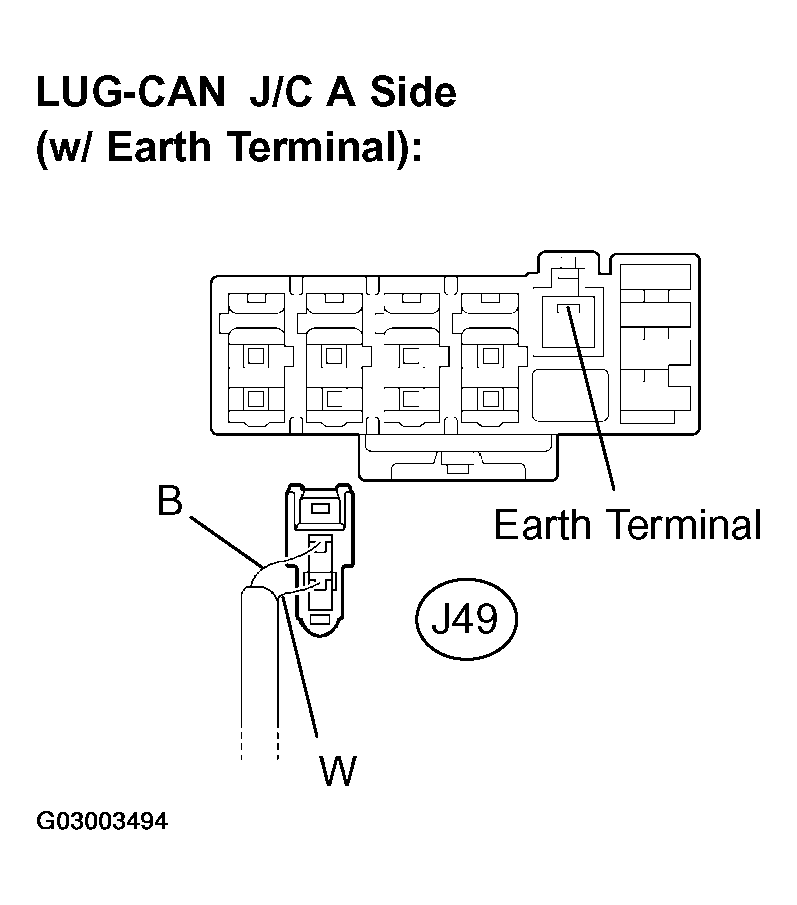

    Fig 22: Disconnecting CAN Main Bus Line Connector (J49) From LUG-CAN J/C A Side (W/Earth Terminal)
    G03003494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the CAN main bus line connector (J49) from the LUG-CAN J/C A side (w/earth terminal).
      NOTE:
      • Before disconnecting the connector, make a note of where it is connected.
      • Reconnect the connector to its original position.
      Fig 23: Identifying DLC3 Connector terminals
      G03003495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 108 to 132 Ω

    OK: Go to step   38

    NG: GO TO NEXT STEP

  28. CONNECT CONNECTOR
    1. Reconnect the CAN main bus line connector (J49) to the LUG-CAN J/C A side (w/earth terminal).
  29. CHECK CAN BUS LINES FOR SHORT CIRCUIT (DISTANCE CONTROL ECU SUB BUS LINE)
    NOTE: For vehicles without dynamic radar/laser cruise control, go to step  31.

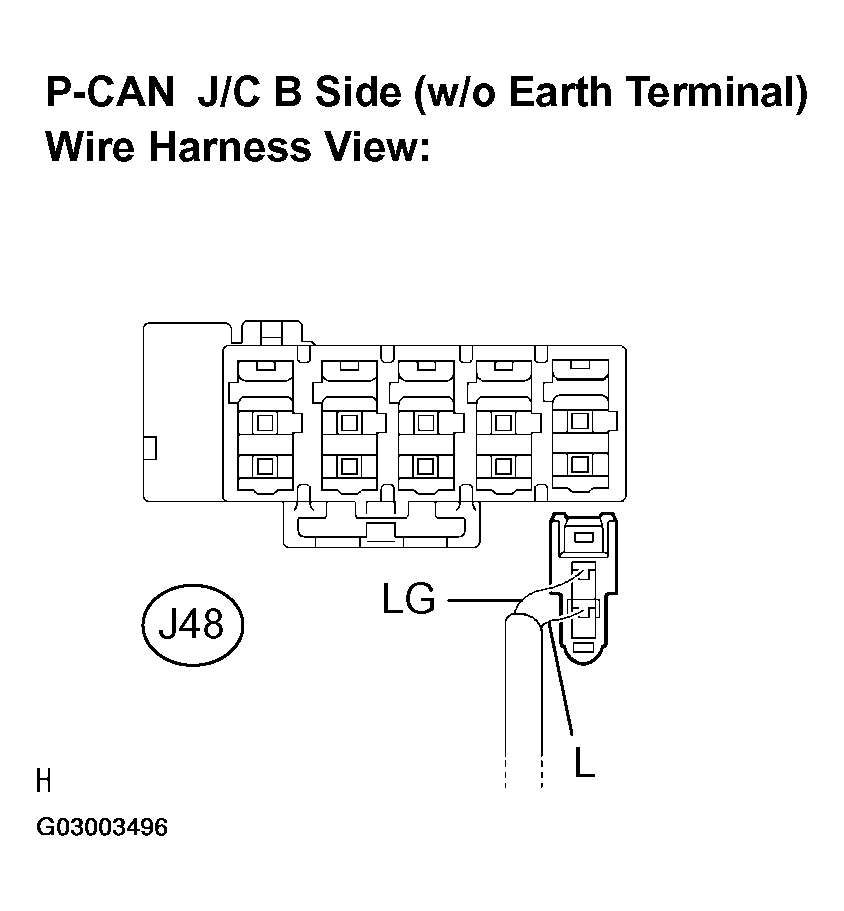

    Fig 24: Disconnecting Distance Control ECU Sub Bus Line Connector (J48) From P-CAN J/C B Side (W/O Earth Terminal)
    G03003496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the distance control ECU sub bus line connector (J48) from the P-CAN J/C B side (w/o earth terminal).
      NOTE:
      • Before disconnecting the connector, make a note of where it is connected.
      • Reconnect the connector to its original position.
      Fig 25: Identifying DLC3 Connector terminals
      G03003497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: Go to step   34

    NG: GO TO NEXT STEP

  30. CONNECT CONNECTOR
    1. Reconnect the distance control ECU sub bus line connector (J48) to the P-CAN J/C B side (w/o earth terminal).
  31. CHECK CAN BUS LINES FOR SHORT CIRCUIT (YAW RATE SENSOR SUB BUS LINE)

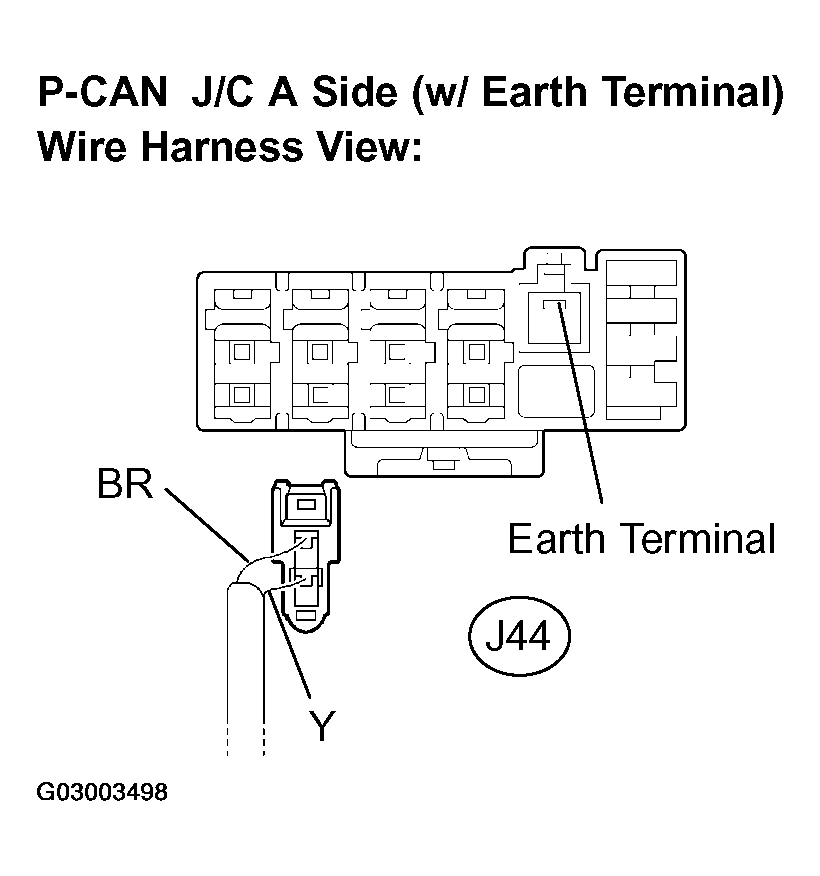

    Fig 26: Disconnecting Yaw Rate Sensor Sub Bus Line Connector (J44) From P-CAN J/C A Side (W/Earth Terminal)
    G03003498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the yaw rate sensor sub bus line connector (J44) from the P-CAN J/C A side (w/earth terminal).
      NOTE:
      • Before disconnecting the connector, make a note of where it is connected.
      • Reconnect the connector to its original position.
      Fig 27: Identifying DLC3 Connector terminals
      G03003499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: Go to step   36

    NG: GO TO NEXT STEP

  32. CONNECT CONNECTOR
    1. Reconnect the yaw rate sensor sub bus line connector (J44) to the P-CAN J/C A side (w/earth terminal).
  33. CHECK CAN BUS LINES FOR SHORT CIRCUIT (P-CAN J/C - LUG-CAN J/C)
    Fig 28: Disconnecting CAN Main Bus Line Connector (J47) From P-CAN J/C B Side (W/O Earth Terminal)
    G03003500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the CAN main bus line connector (J47) from the P-CAN J/C B side (w/o earth terminal).
      NOTE:
      • Before disconnecting the connector, make a note of where it is connected.
      • Reconnect the connector to its original position.
      Fig 29: Identifying DLC3 Connector terminals
      G03003501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 108 to 132 Ω

    NG: REPLACE JUNCTION CONNECTOR (P-CAN J/C)

    OK: GO TO NEXT STEP

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (CAN-H, CAN-L)

  34. CONNECT CONNECTOR
    1. Reconnect the distance control ECU sub bus line connector (J48) to the P-CAN J/C B side (w/earth terminal).
  35. CHECK CAN BUS LINES FOR SHORT CIRCUIT (DISTANCE CONTROL ECU SUB BUS LINE)
    Fig 30: Identifying DLC3 Connector terminals
    G03003502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the distance control ECU connector (D2).
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: REPLACE DISTANCE CONTROL ECU ASSY (SEE  REPLACEMENT  )

    NG: REPAIR OR REPLACE DISTANCE CONTROL ECU SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)

  36. CONNECT CONNECTOR
    1. Reconnect the yaw rate sensor sub bus line connector (J44) to the P-CAN J/C A side (w/earth terminal).
  37. CHECK CAN BUS LINES FOR SHORT CIRCUIT (YAW RATE SENSOR SUB BUS LINE)
    Fig 31: Identifying DLC3 Connector terminals
    G03003503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the yaw rate sensor connector (Y1).
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: REPLACE YAW RATE SENSOR (SEE  REPLACEMENT  )

    NG: REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)

  38. CONNECT CONNECTOR
    1. Reconnect the CAN main bus line connector (J49) to the LUG-CAN J/C A side (w/earth terminal).
  39. CHECK CAN BUS LINES FOR SHORT CIRCUIT (TELEVISION CAMERA ECU)
    Fig 32: Disconnecting Television Camera ECU Sub Bus Line Connector (J50) From LUG-CAN J/C A Side (W/Earth Terminal)
    G03003504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the television camera ECU sub bus line connector (J50) from the LUG-CAN J/C A side (w/earth terminal).
      Fig 33: Identifying DLC3 Connector terminals
      G03003505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    NG: REPLACE JUNCTION CONNECTOR (w/o Pre-collision safety system)

    NG: Go to step   42  (w/ Pre-collision safety system)

    OK: GO TO NEXT STEP

  40. CONNECT CONNECTOR
    1. Reconnect the television camera ECU sub bus line connector (J50) to the LUG-CAN J/C A side (w/earth terminal).
  41. CHECK CAN BUS LINES FOR SHORT CIRCUIT (TELEVISION CAMERA ECU SUB BUS LINE)
    Fig 34: Identifying DLC3 Connector terminals
    G03003506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the television camera ECU connector (T24).
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    OK: REPLACE TELEVISION CAMERA ECU (SEE  REPLACEMENT  )

    NG: REPAIR OR REPLACE TELEVISION CAMERA ECU SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)

  42. CONNECT CONNECTOR
    1. Reconnect the television camera ECU connector (T24).
  43. CHECK CAN BUS LINES FOR SHORT (LUG-CAN J/C)
    Fig 35: Disconnecting Television Camera ECU Sub Bus Line Connector (J52) From LUG-CAN J/C A Side (W/Earth Terminal)
    G03003507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the television camera ECU sub bus line connector (J52) from the LUG-CAN J/C A side (w/earth terminal).
      Fig 36: Identifying DLC3 Connector terminals
      G03003508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    NG: REPLACE JUNCTION CONNECTOR

    OK: GO TO NEXT STEP

  44. CONNECT CONNECTOR
    1. Reconnect the television camera ECU sub bus line connector (J52) to the LUG-CAN J/C A side (w/earth terminal).
  45. CHECK CAN BUS LINES FOR SHORT (SEAT BELT CONTROL ECU SUB BUS LINE)
    Fig 37: Identifying DLC3 Connector terminals
    G03003509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the seat belt control ECU connector (S63).
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    DLC3 CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified value
    D1-6 (CANH) - D1-14 (CANL) Ignition Switch OFF 54 to 69 Ω

    NG: REPLACE SEAT BELT CONTROL ECU

    OK: REPAIR OR REPLACE SEAT BELT CONTROL ECU SUB BUS LINE OR CONNECTOR

scientia non olet · About LEMON Manuals
