Parts Location

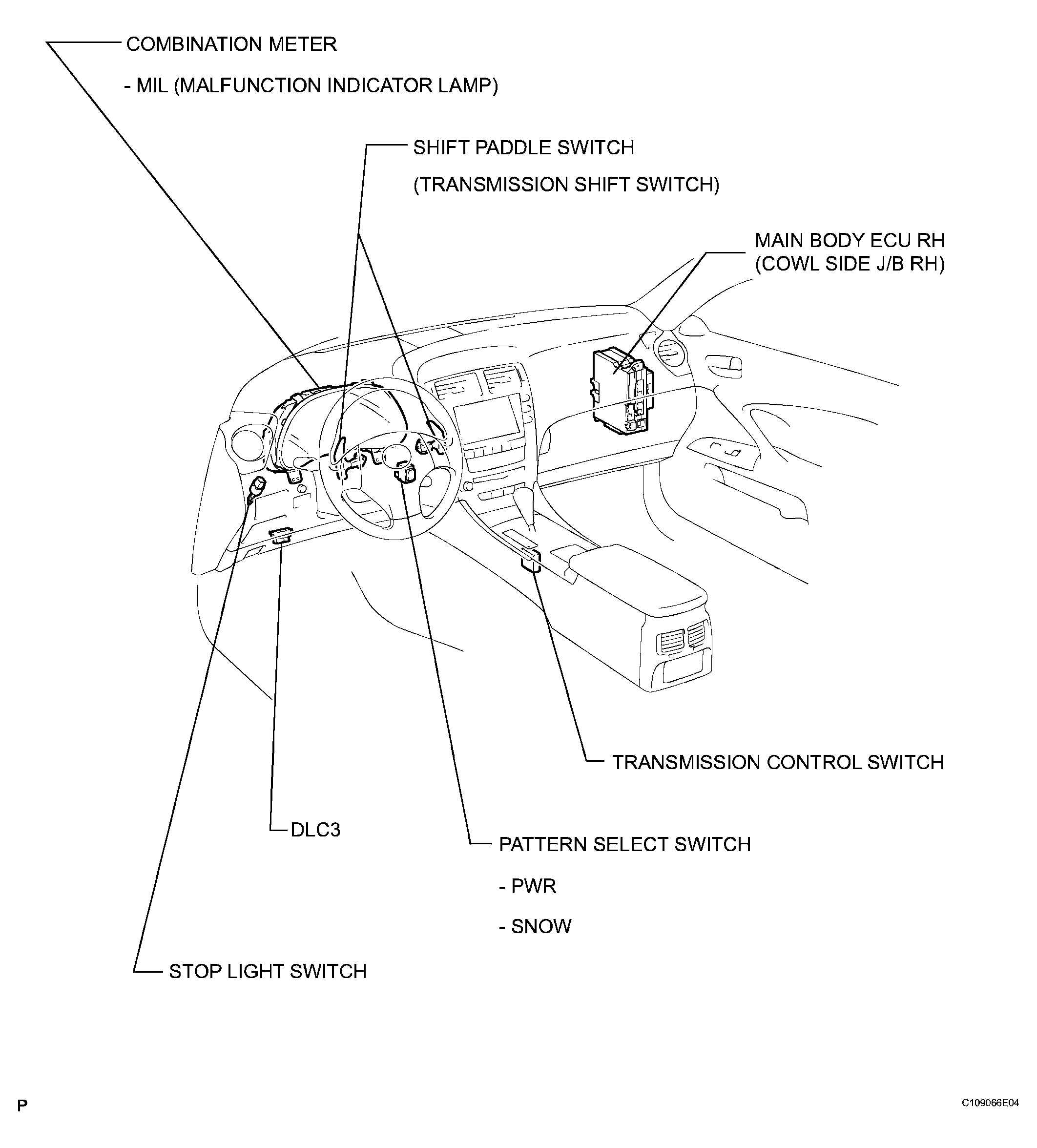

Fig 1: Identifying Automatic Transmission System Parts Location (1 Of 2)
G04052833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

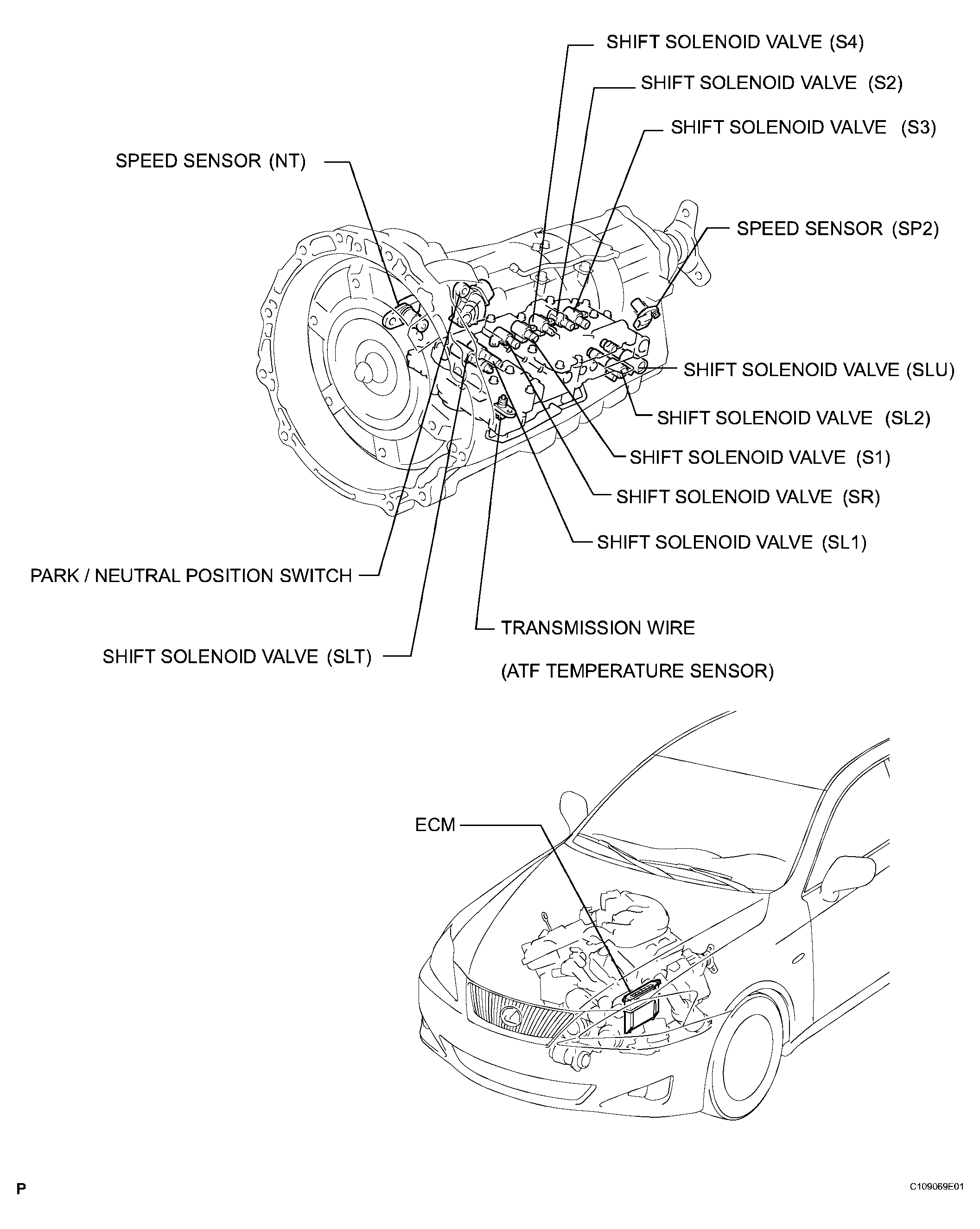

Fig 2: Identifying Automatic Transmission System Parts Location (2 Of 2)
G04052834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
