Steering Pad Switch: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment (See AIRBAG SYSTEM ).
  2. REMOVE NO. 3 LOWER STEERING WHEEL COVER (See  REMOVAL  )
  3. REMOVE NO. 2 LOWER STEERING WHEEL COVER (See  REMOVAL  )
  4. REMOVE STEERING PAD (See  REMOVAL  )
  5. REMOVE STEERING PAD SWITCH ASSEMBLY
    1. Disconnect the 2 connectors and disengage the clamp.

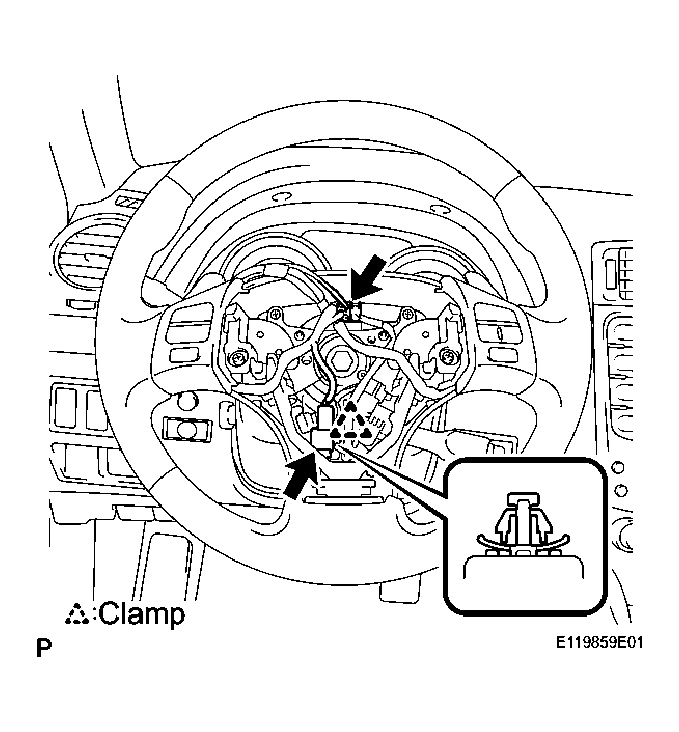

      Fig 1: Identifying Steering Pad Switch
      G04050056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
    3. Disengage the 4 pins and remove the steering pad switch assembly.

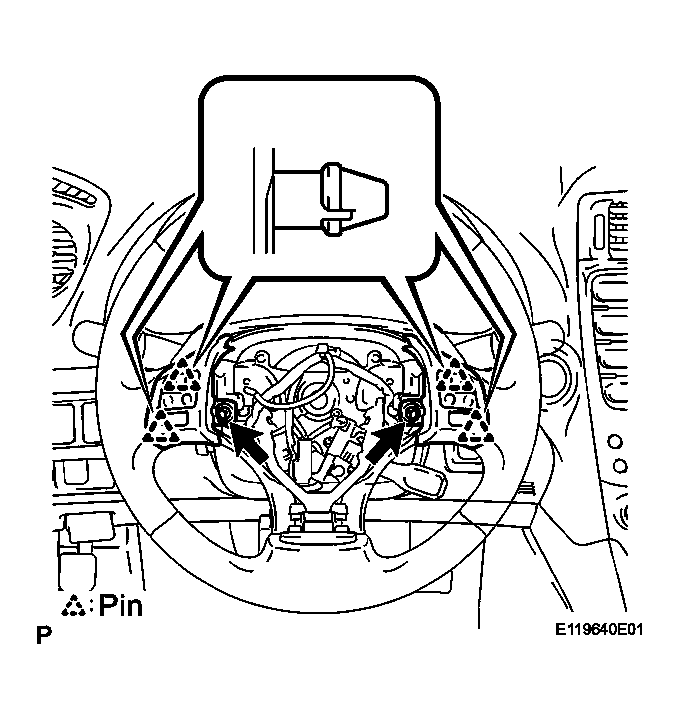

    Fig 2: Identifying Screws And Steering Pad Switch
    G04050057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
