FRONT SPEED SENSOR (for 2WD): Components

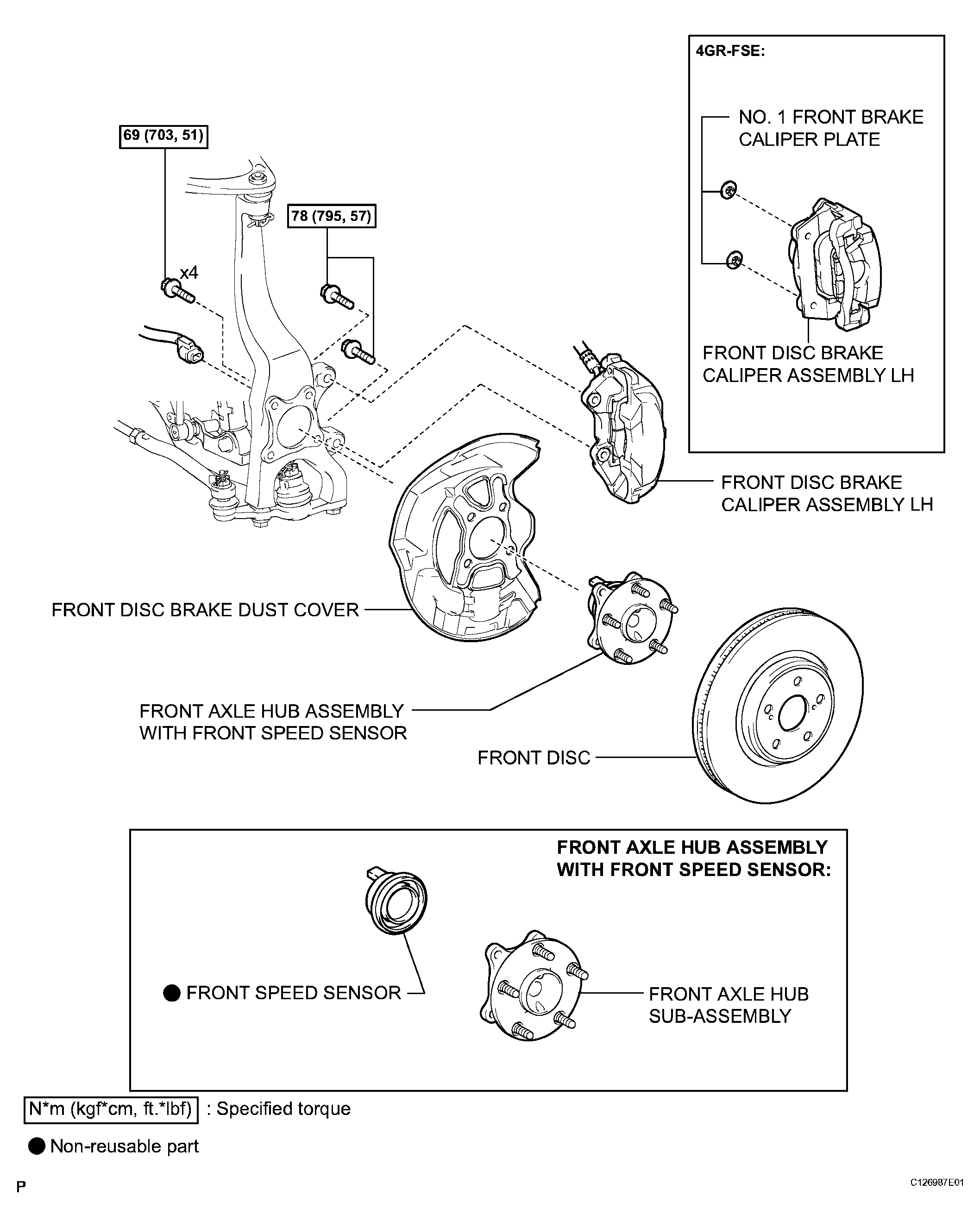

Fig 1: Identifying Front Speed Sensor (For 2WD) Components

G04052194

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
