Seat Heater Control: Installation

  1. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY
    1. Install the seat heater control sub-assembly with the clamp and claw.
    2. Connect the 2 connectors.

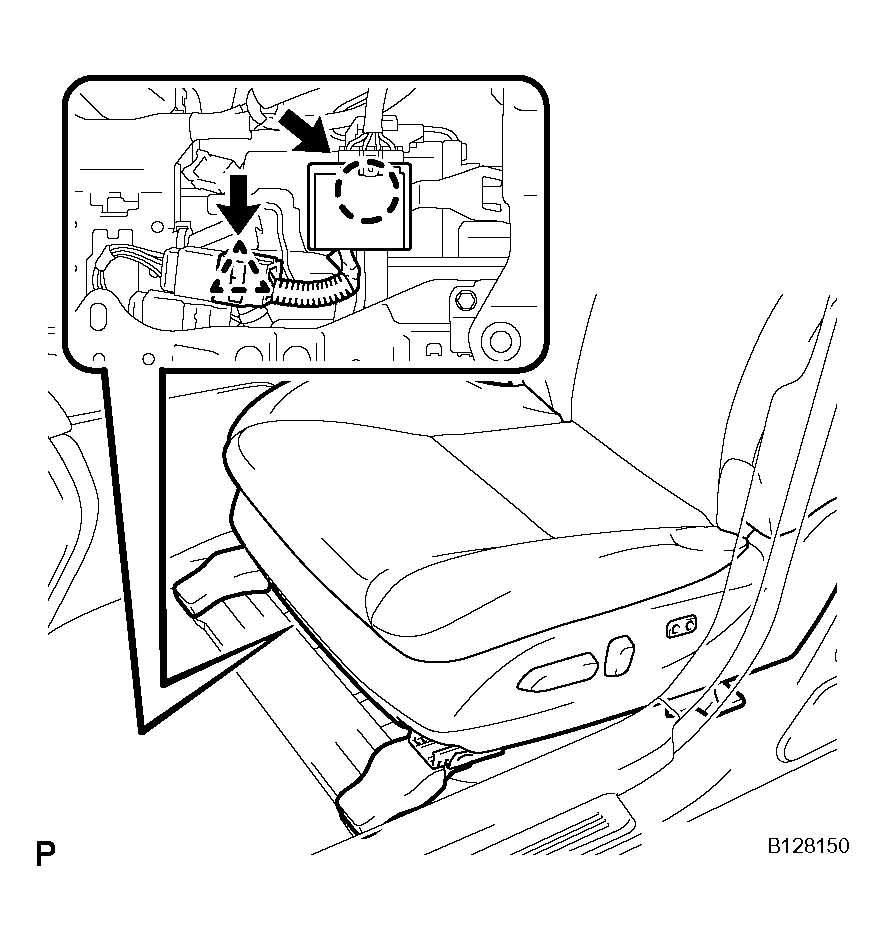

    Fig 1: Identifying 2 Connectors
    G04051275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
