Lumbar Support Adjuster Assembly: Reassembly

  1. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY
    1. Install the lumbar support adjuster with the 2 screws.
    2. Connect the connector.
  2. INSTALL FRONT SEPARATE TYPE SEATBACK ASSEMBLY (w/o Seatback Board) (See  REASSEMBLY   )

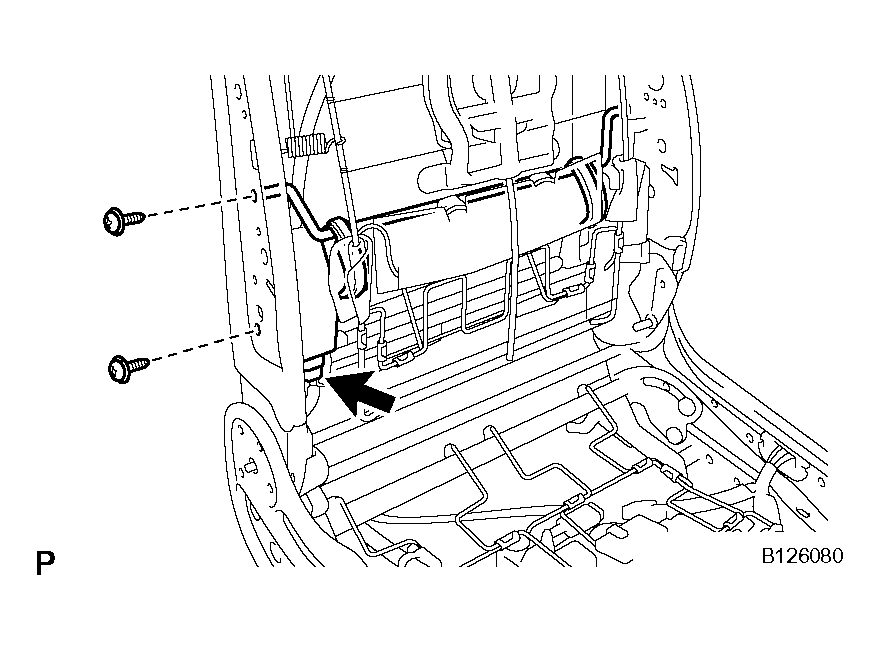

    Fig 1: View Of Lumbar Support Adjuster With 2 Screws
    G04051251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT SEPARATE TYPE SEATBACK ASSEMBLY (w/ Seatback Board) (See  REASSEMBLY   )
  4. INSTALL FRONT SEAT HEADREST SUPPORT
  5. INSTALL FRONT SEAT HEADREST SUPPORT
  6. INSTALL FRONT SEAT BACK BOARD SUBASSEMBLY (w/ Seatback Board)
  7. INSTALL FRONT INNER SEAT CUSHION SHIELD
  8. INSTALL FRONT SEAT CUSHION SHIELD WITH INNER NO. 1 CUSHION SHIELD
  9. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
  10. INSTALL RECLINING POWER SEAT SWITCH KNOB
  11. INSTALL FRONT SEAT INNER BELT ASSEMBLY
  12. INSTALL FRONT SEAT ASSEMBLY
  13. INSTALL REAR INNER SEAT TRACK COVER
  14. INSTALL REAR OUTER SEAT TRACK COVER
  15. INSTALL FRONT INNER SEAT TRACK BRACKET COVER
  16. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER
  17. INSTALL FRONT SEAT HEADREST ASSEMBLY
