Front Seatback Heater: Components

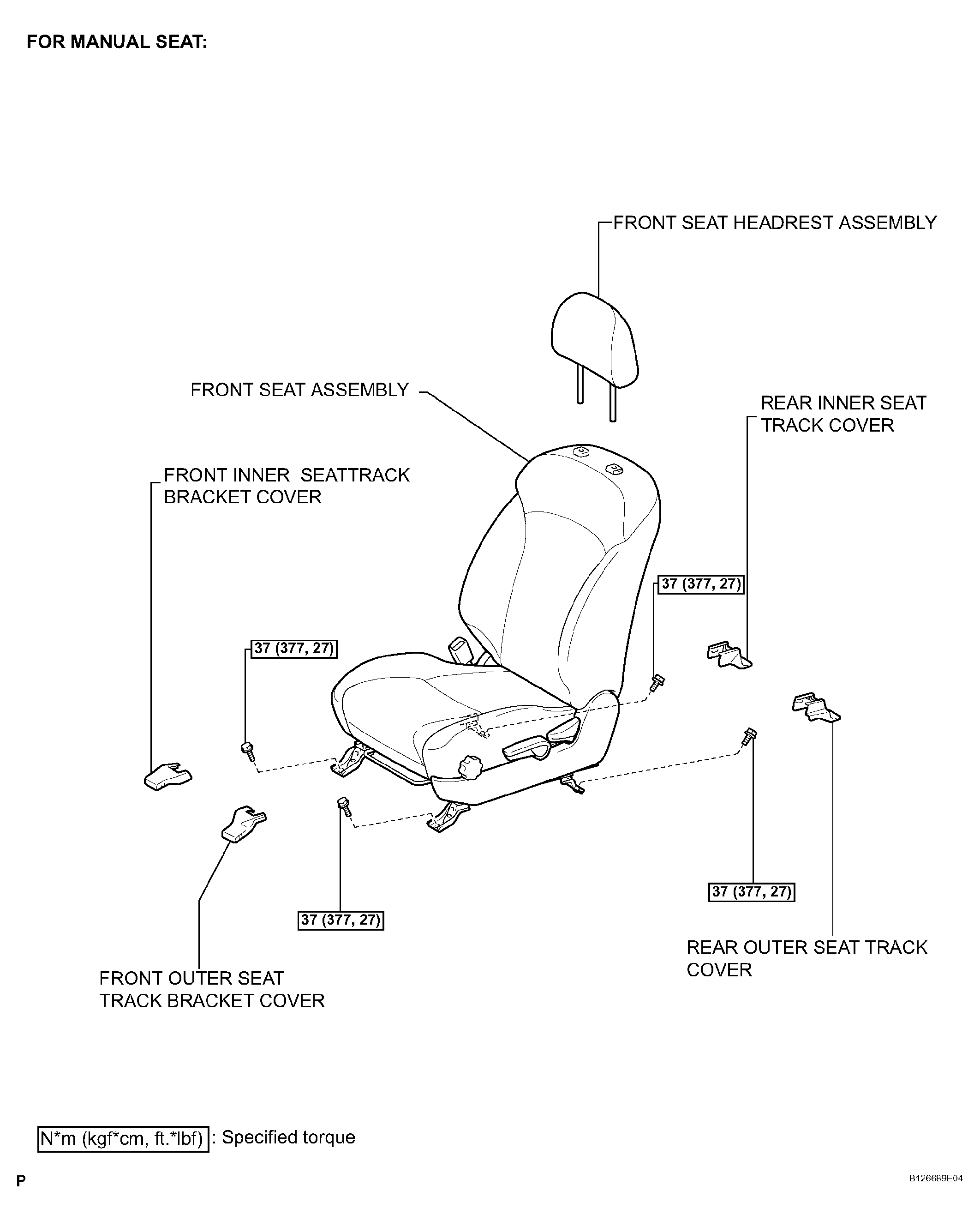

Fig 1: Front Seatback Heater Replacement Components With Torque Specifications (1 Of 5)
G04051256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

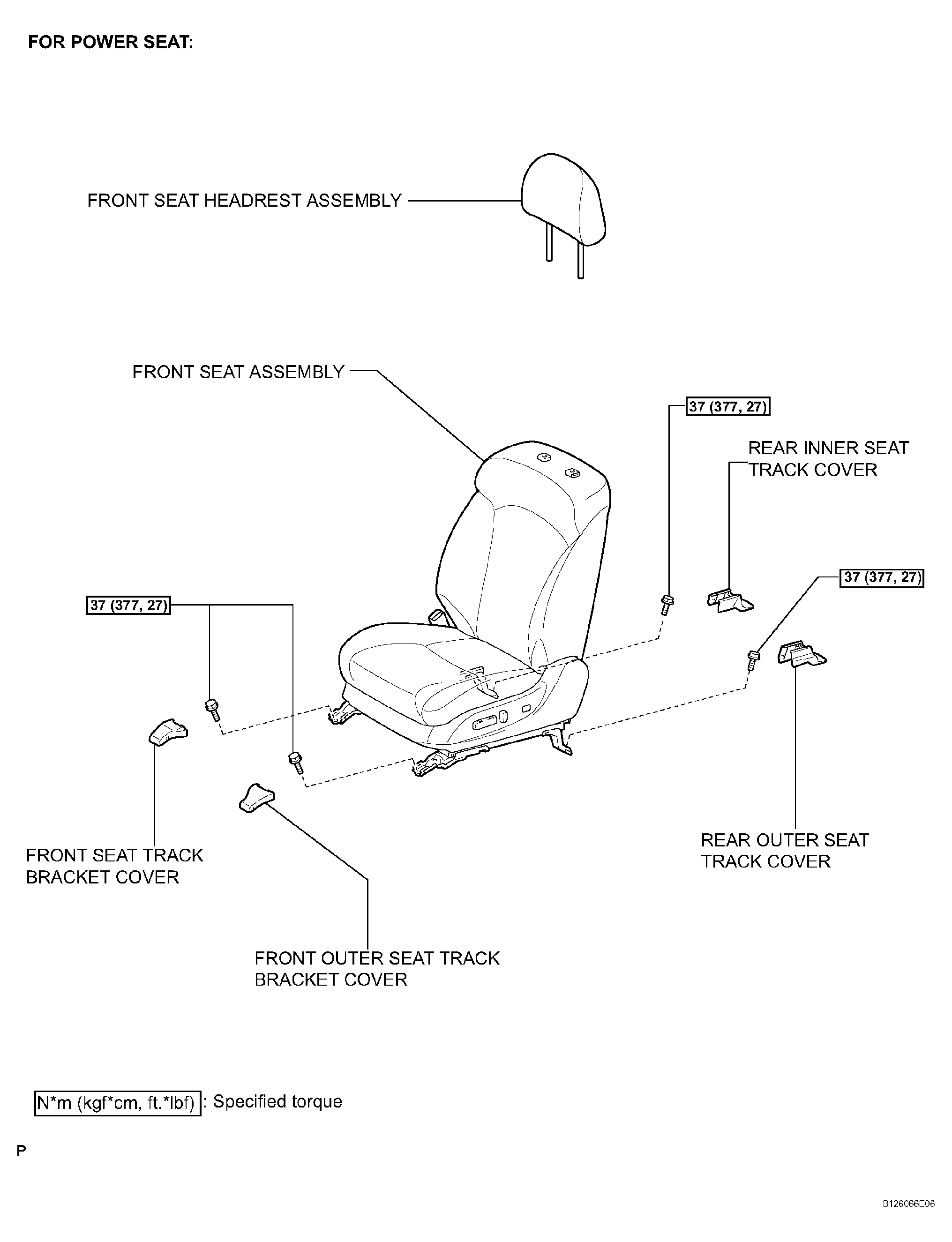

Fig 2: Front Seatback Heater Replacement Components With Torque Specifications (2 Of 5)
G04051257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

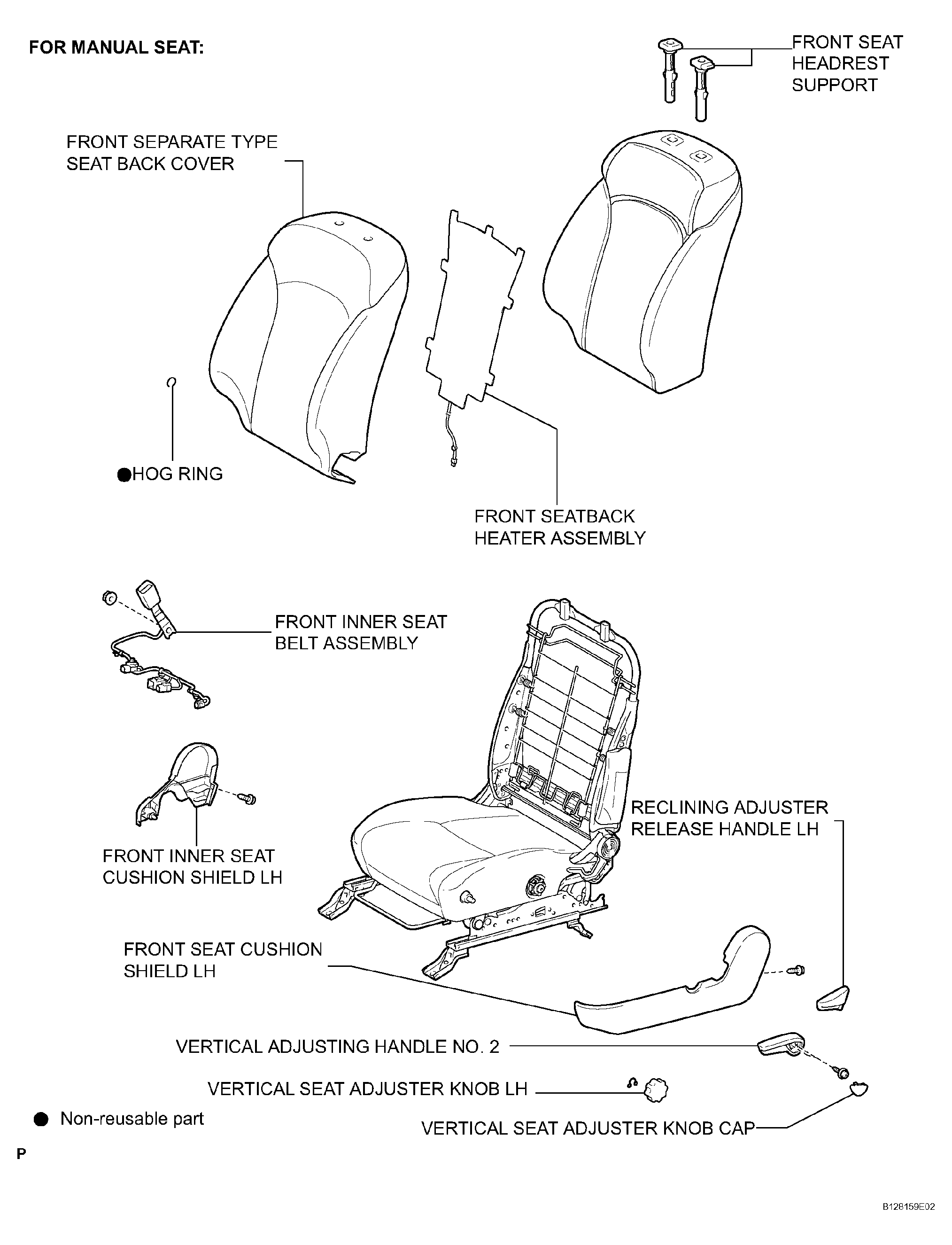

Fig 3: Front Seatback Heater Replacement Components With Torque Specifications (3 Of 5)
G04051258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

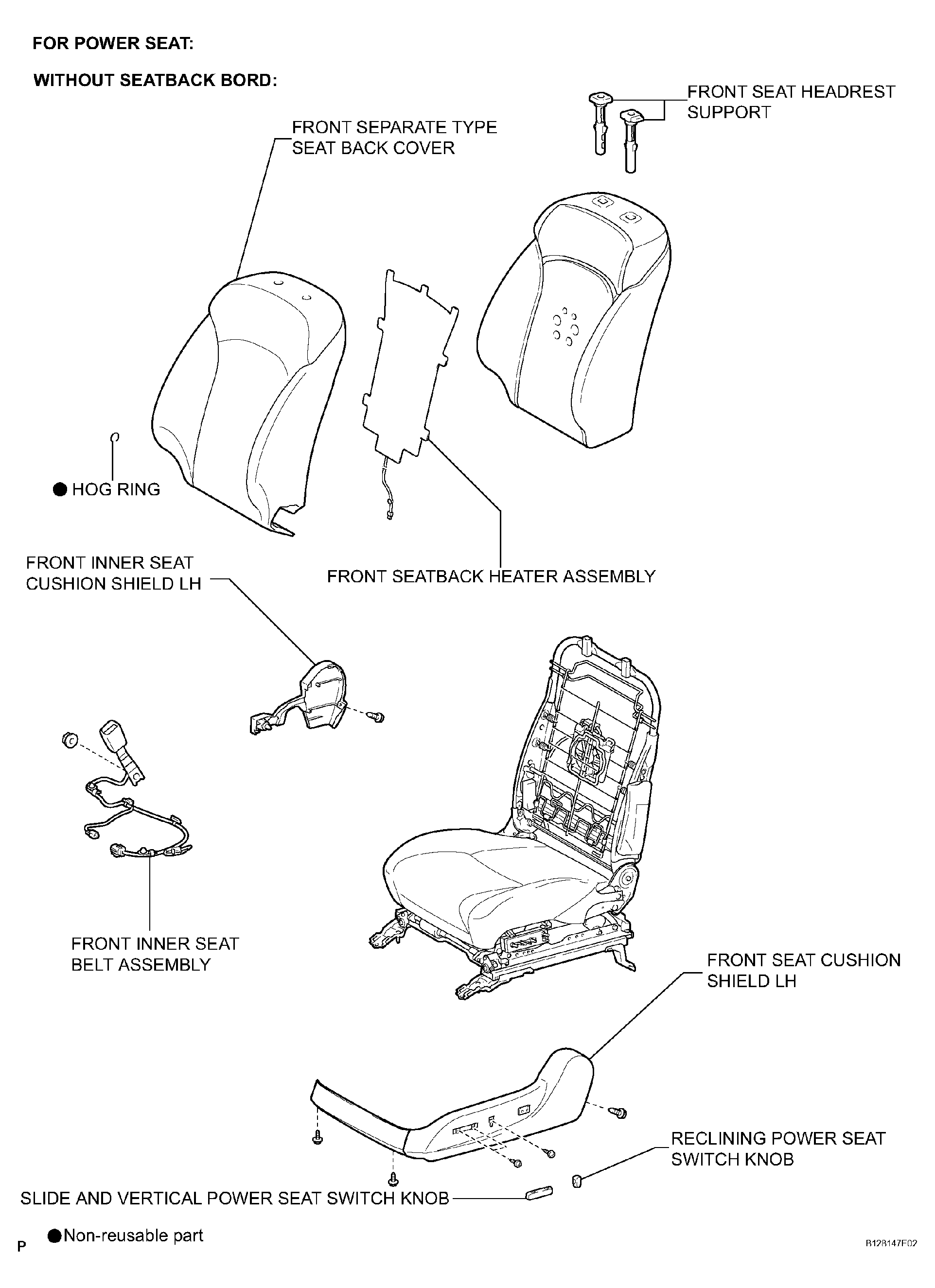

Fig 4: Front Seatback Heater Replacement Components With Torque Specifications (4 Of 5)
G04051259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

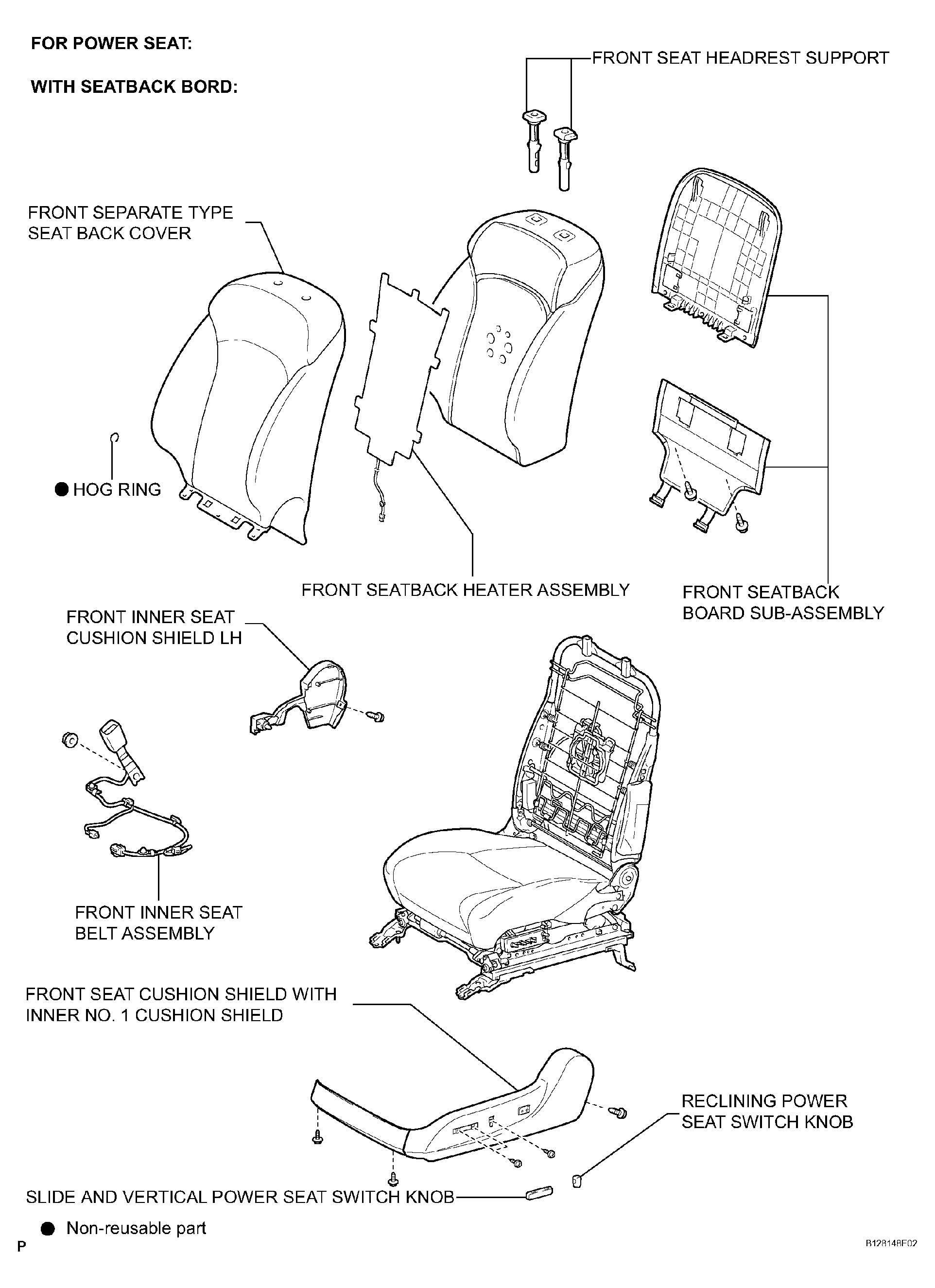

Fig 5: Front Seatback Heater Replacement Components With Torque Specifications (5 Of 5)
G04051260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
