System Diagram

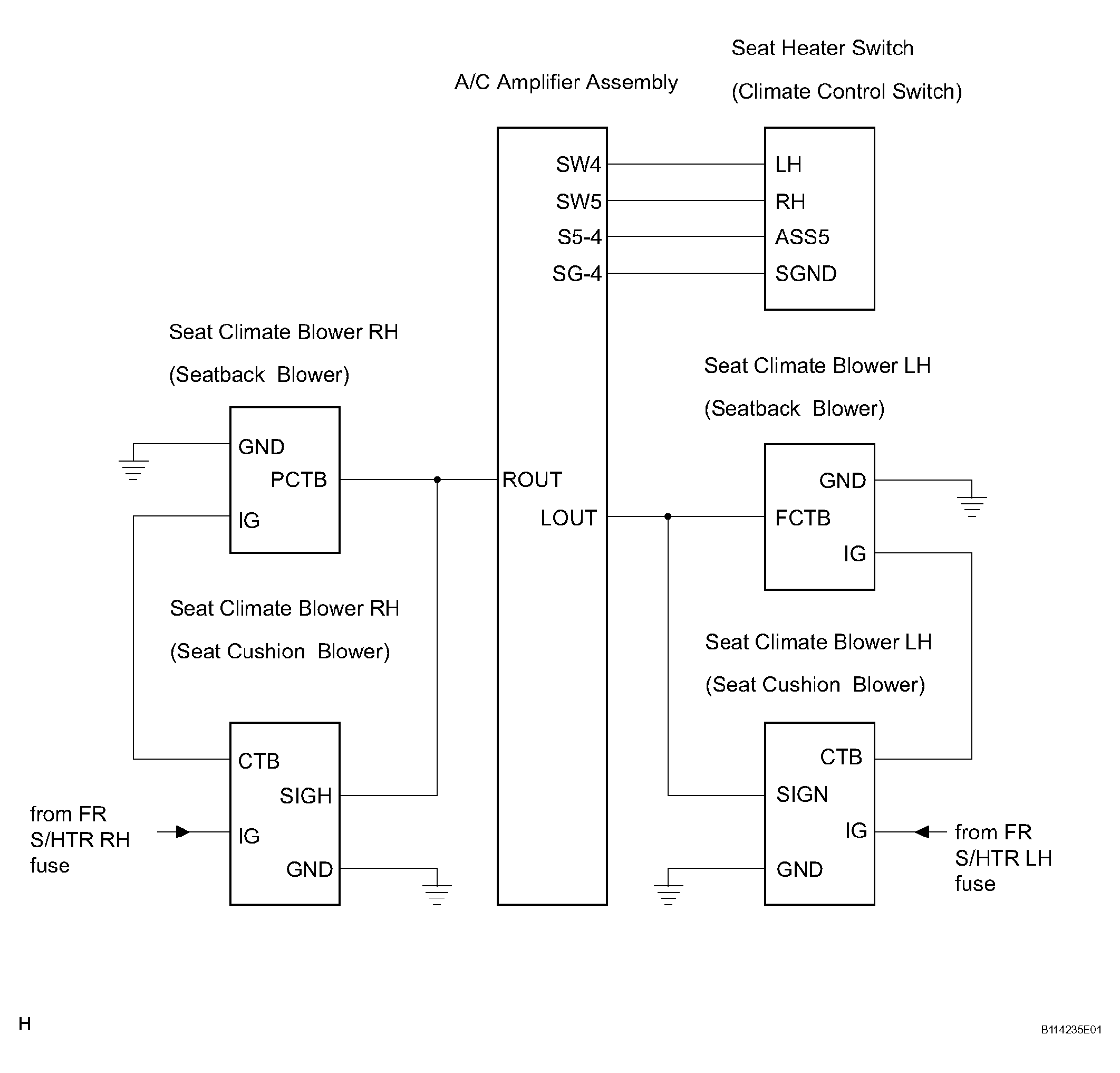

Fig 1: Climate Control Seat System Diagram

G04051045

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
