Home >> Lexus >> 2006 >> IS 350 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Door Lock >> Rear Door Lock >> Components

Rear Door Lock: Components

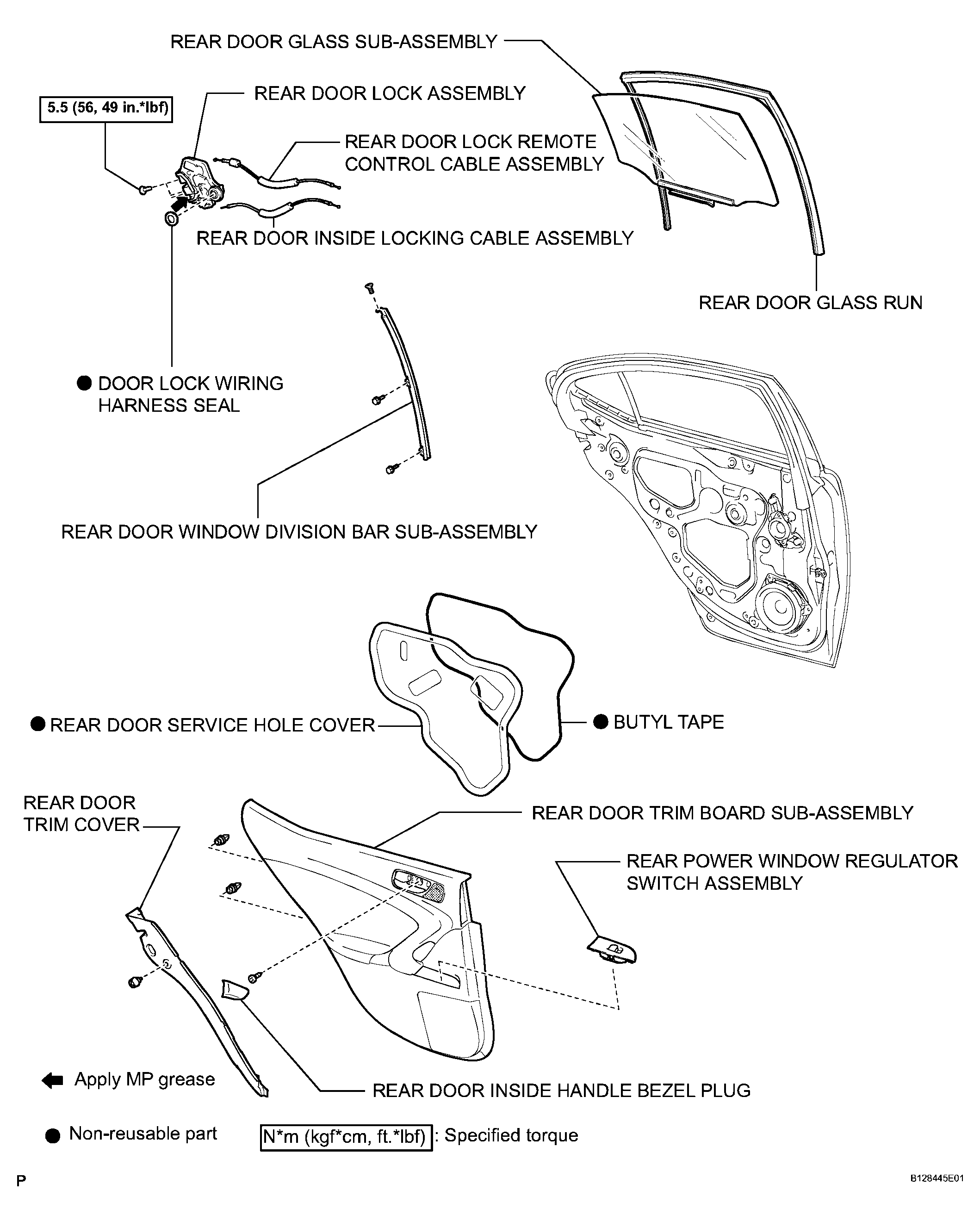

Fig 1: Identifying Rear Door Lock Component

G04049950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
