Front Door Lock: Components

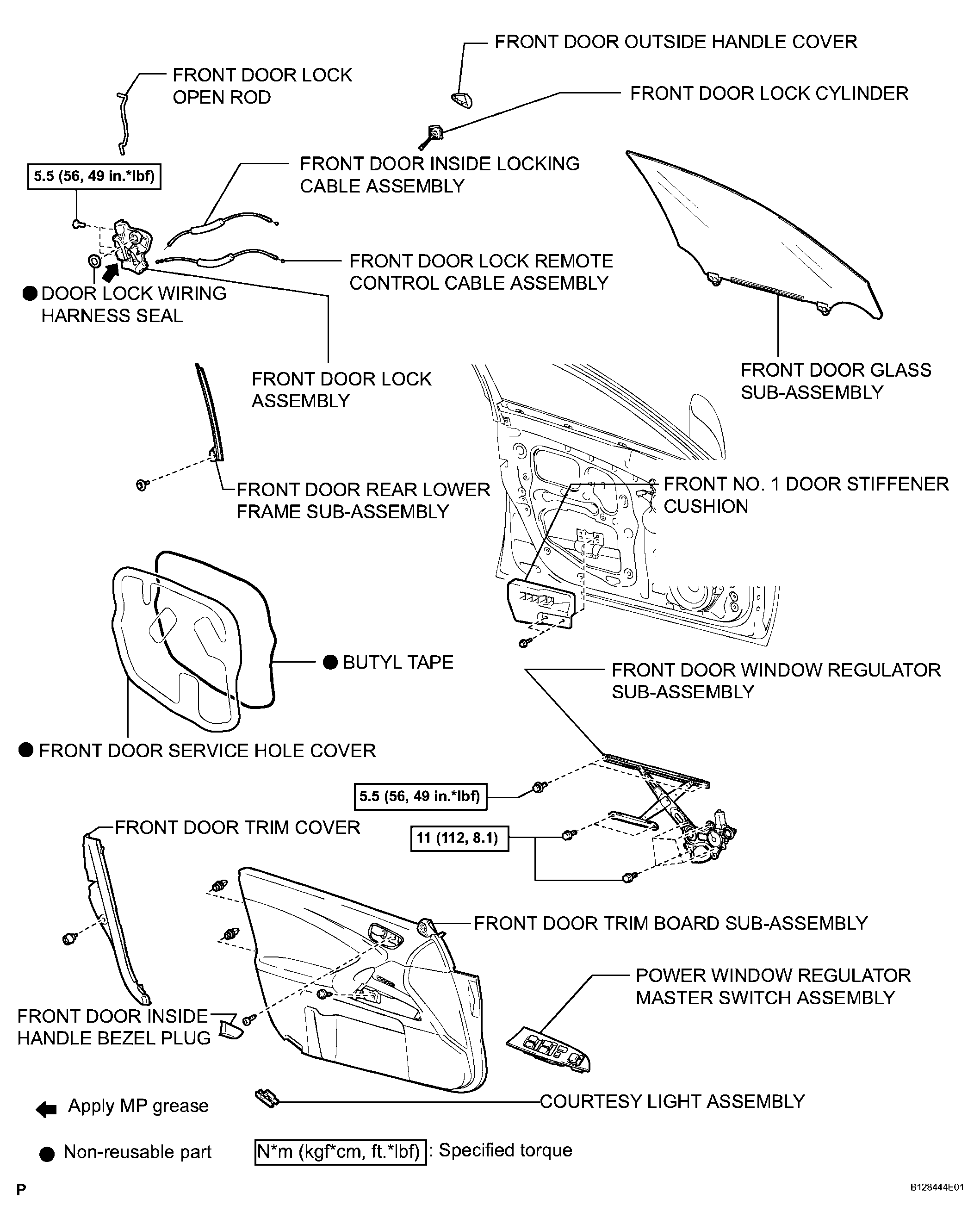

Fig 1: Front Door Lock And Components With Torque Specifications

G04049936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
