Navigation Ecu: Components

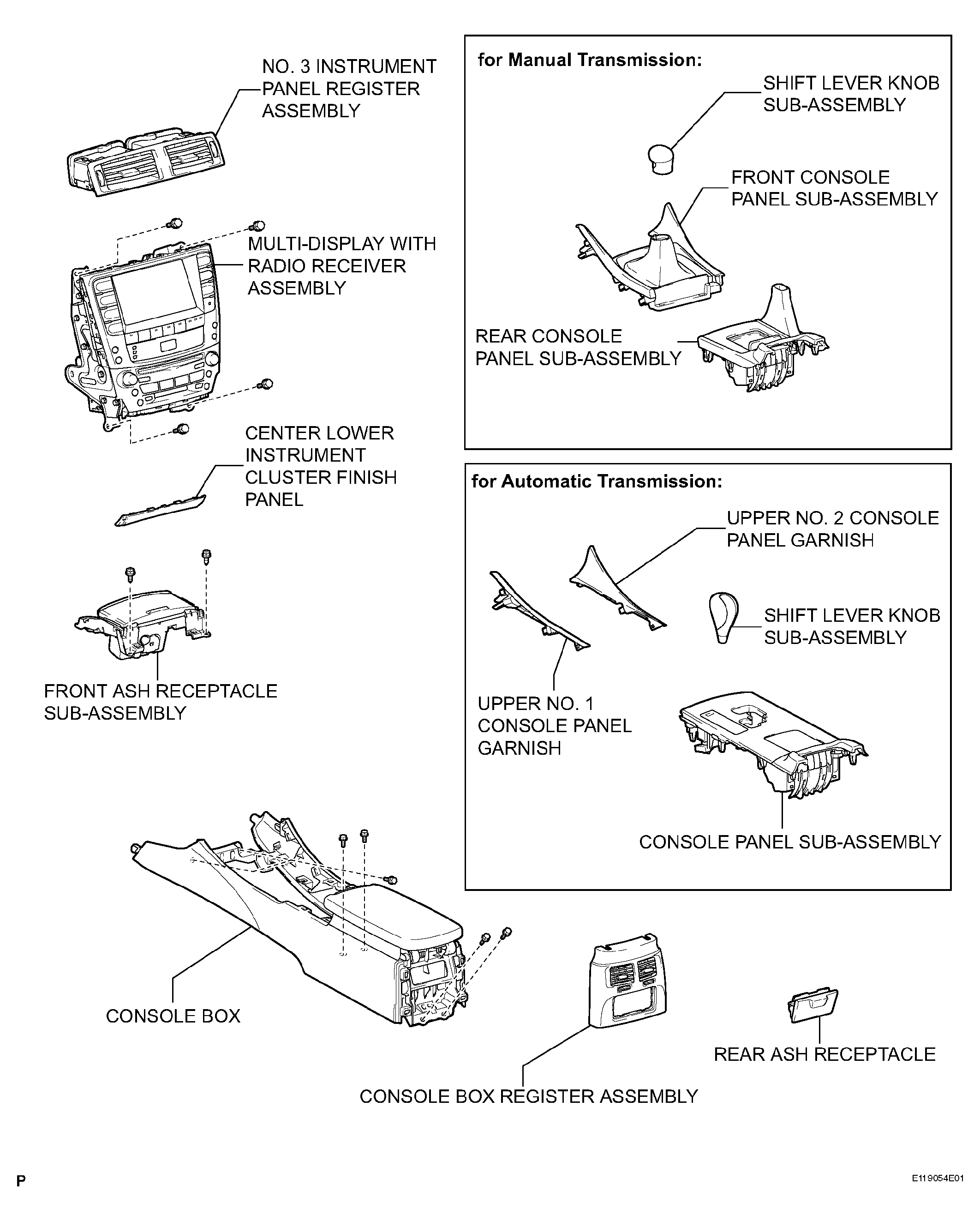

Fig 1: Exploded View Of Navigation ECU (1 Of 2)
G04050531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

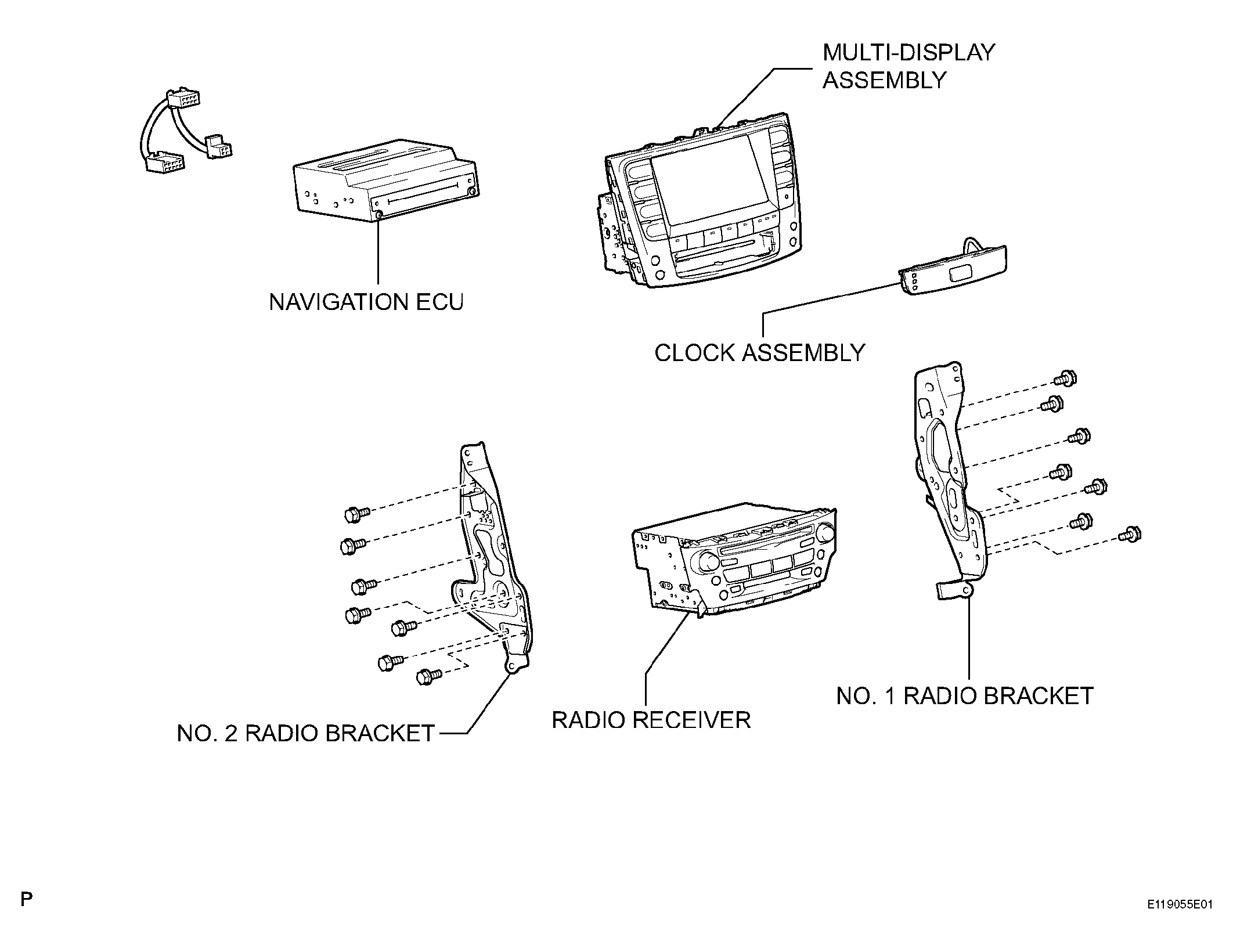

Fig 2: Exploded View Of Navigation ECU (2 Of 2)
G04050532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
