Rear Shock Absorber: Inspection

1. Check that shock absorber oil is not seeping or leaking from the sliding parts of the shock absorber rod.
2. Extend and compress the rear shock absorber.

Standard:

When extending and compressing the rear shock absorber at a constant speed, it can be moved without any abnormal resistance or noise and load is constant through the entire stroke. It also extends at a constant speed after being compressed.

If there is any abnormality, replace the rear shock absorber with a new one.

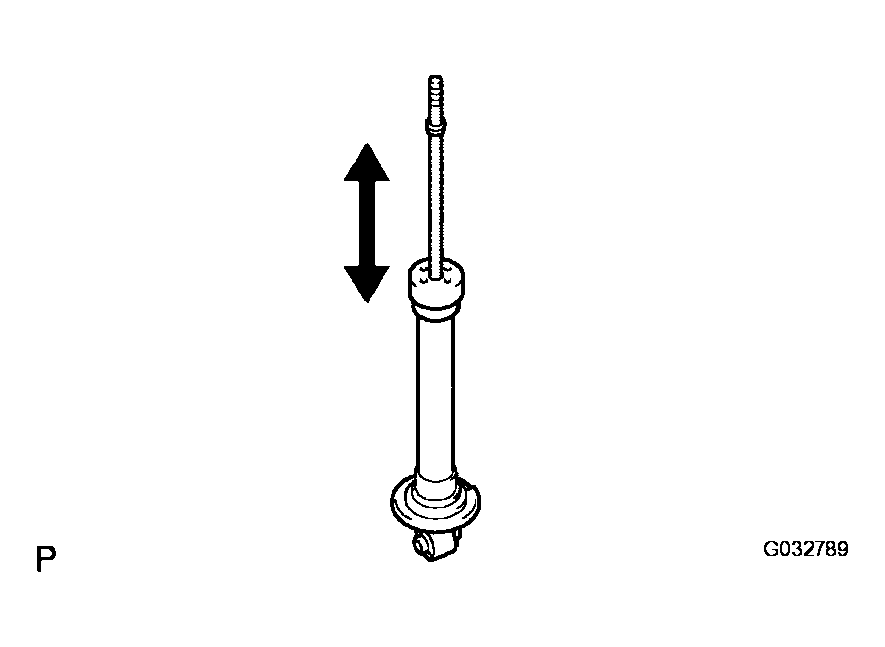

Fig 1: Inspecting Rear Shock Absorber

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
