Fuel Pump Resistor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  3. REMOVE ENGINE ROOM RH SIDE COVER (See Step 3 in  REMOVAL  )
  4. REMOVE FUEL PUMP RESISTOR
    1. Disconnect the connector and clamp from the fuel pump resistor.
    2. Remove the 3 bolts and fuel pump resistor, and disconnect the ground wires.

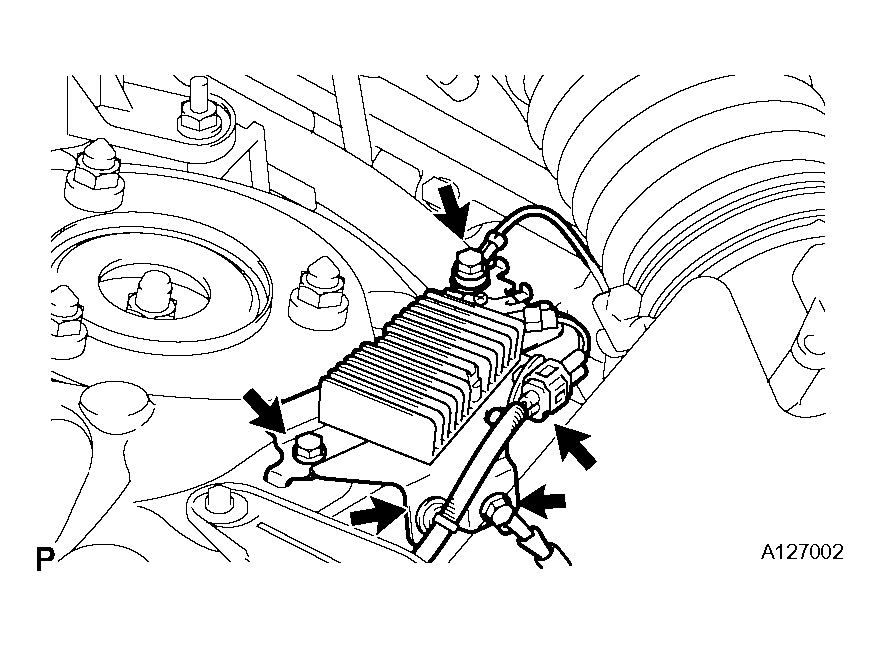

    Fig 1: Removing Fuel Pump Resistor
    G04044637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
