Parts Location

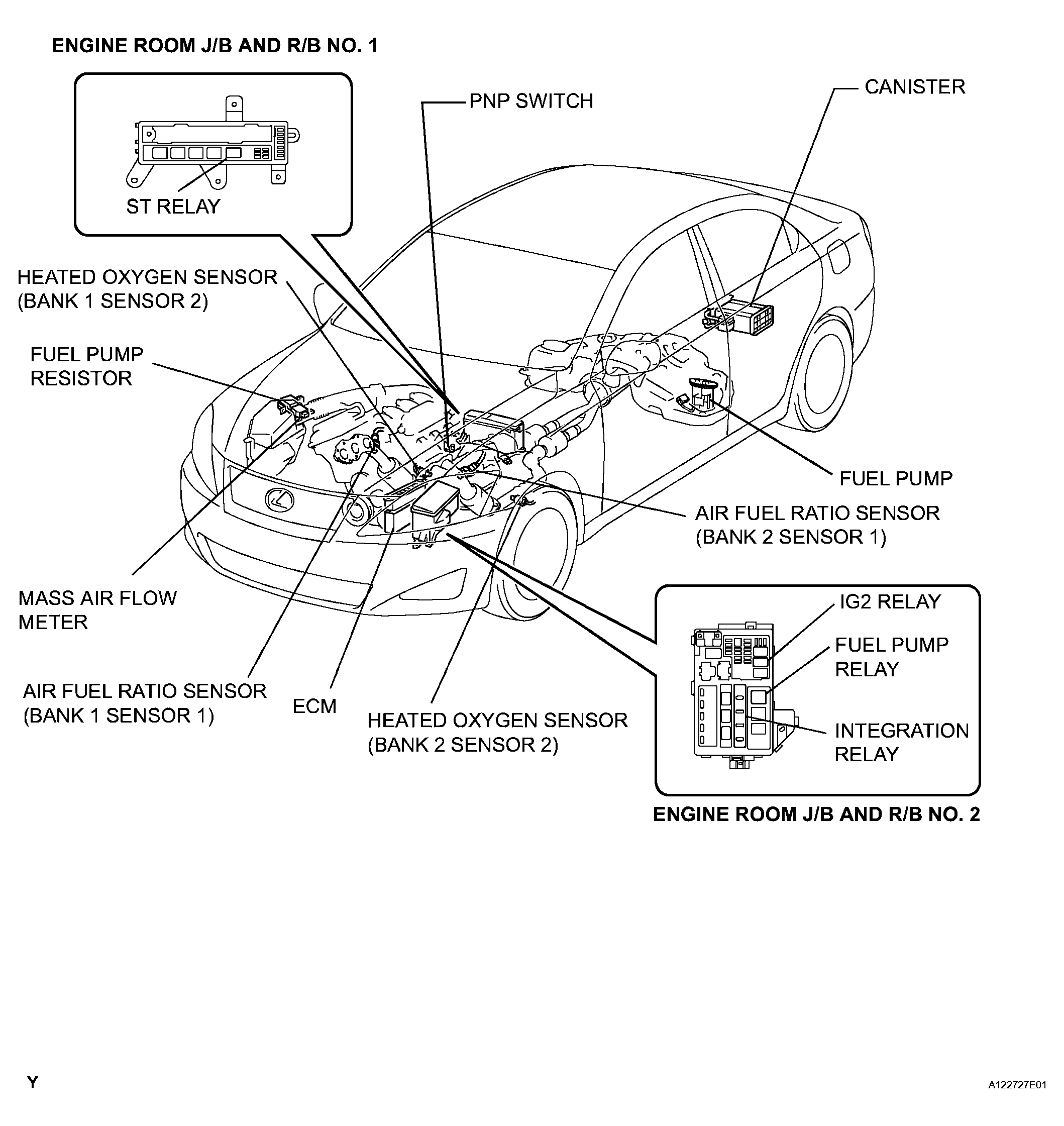

Fig 1: Identifying SFI System Parts Location (1 Of 3)
G04043440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

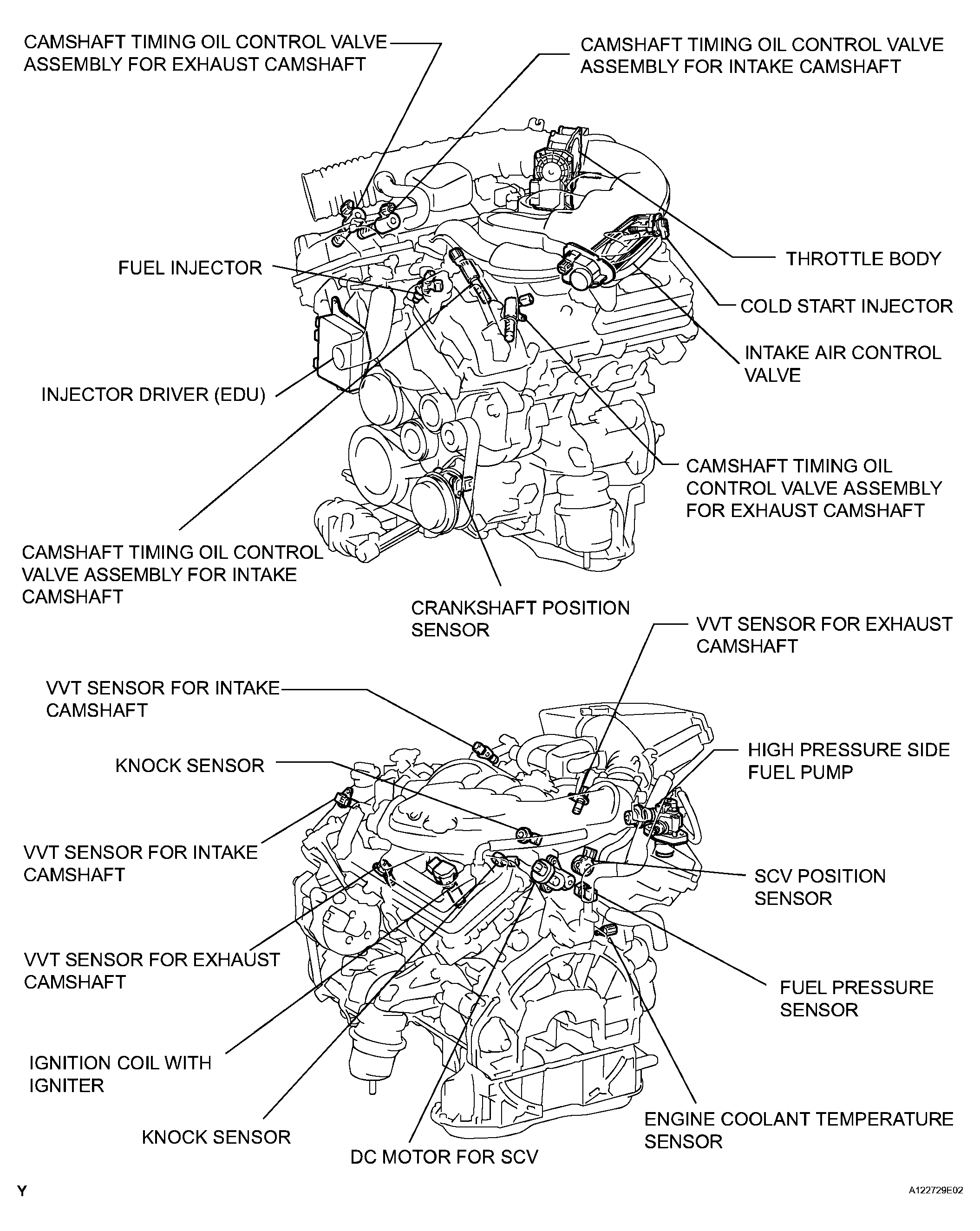

Fig 2: Identifying SFI System Parts Location (2 Of 3)
G04043441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

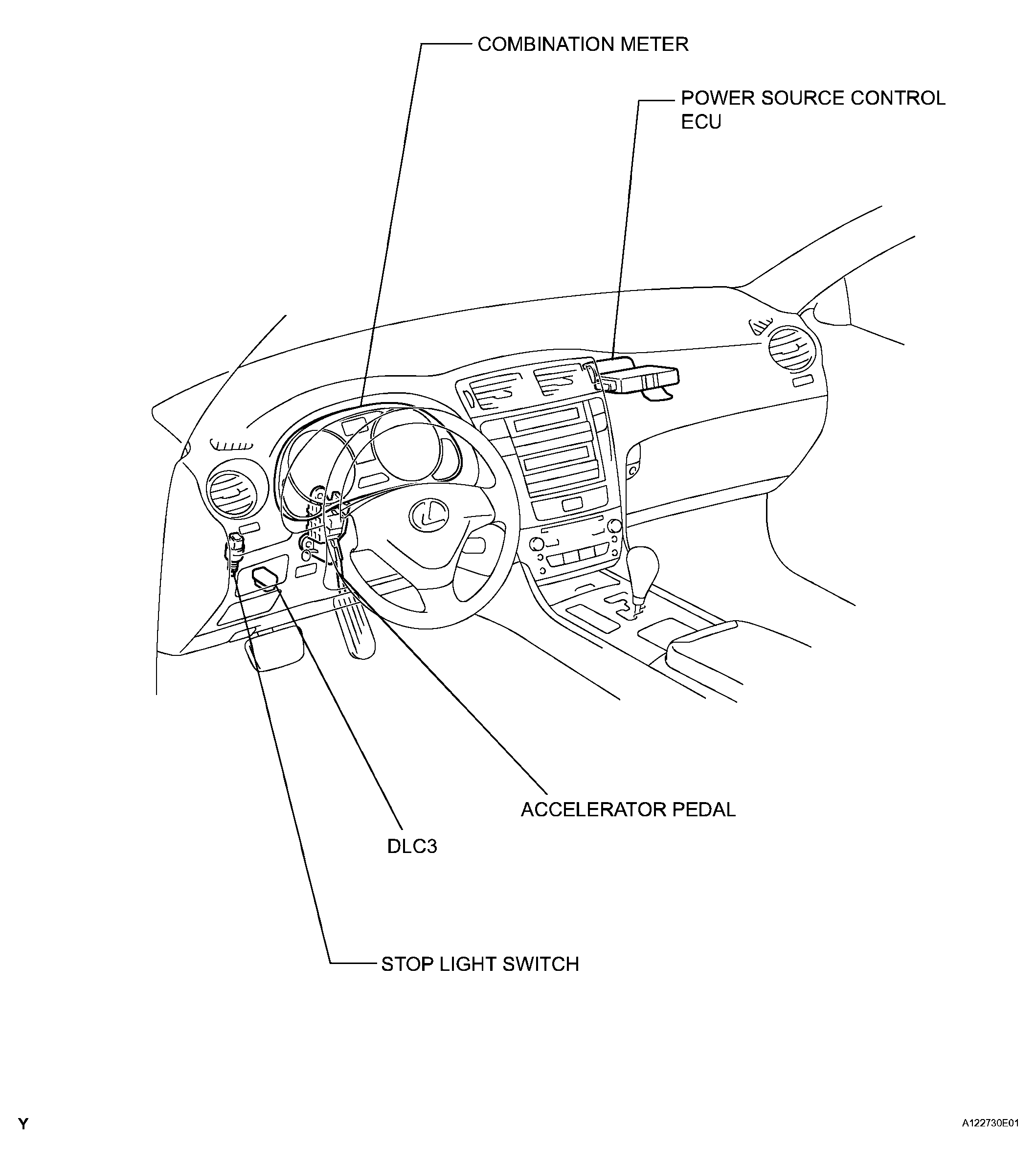

Fig 3: Identifying SFI System Parts Location (3 Of 3)
G04043442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
