Cold Start Injector: Installation

INSTALL COLD START INJECTOR
1. Install a new gasket to the intake air surge tank.

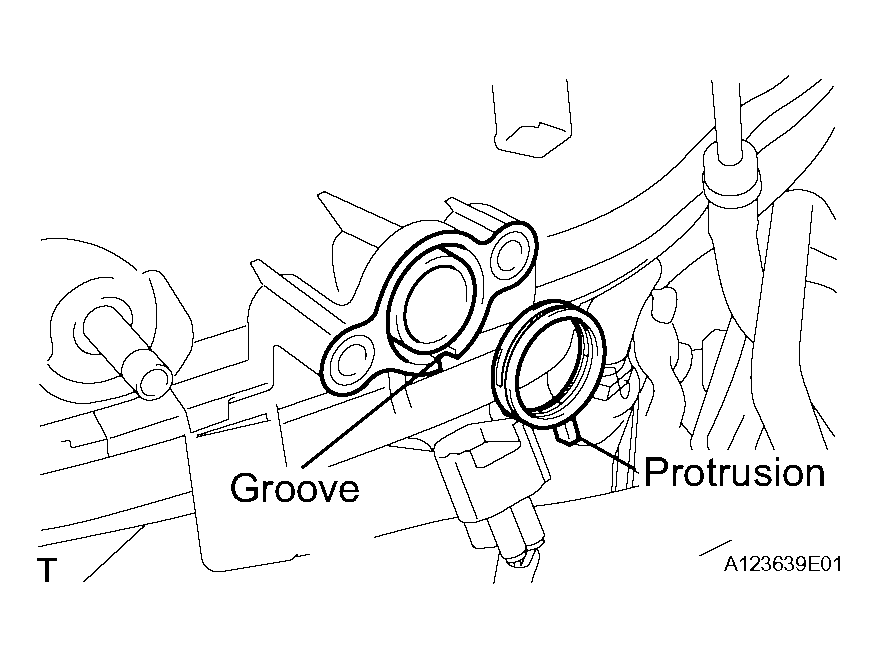

  Fig 1: Installing New Gasket To Intake Air Surge Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Align the protrusion of the gasket on the intake air surge tank.
2. Install the cold start injector with the 2 bolts.

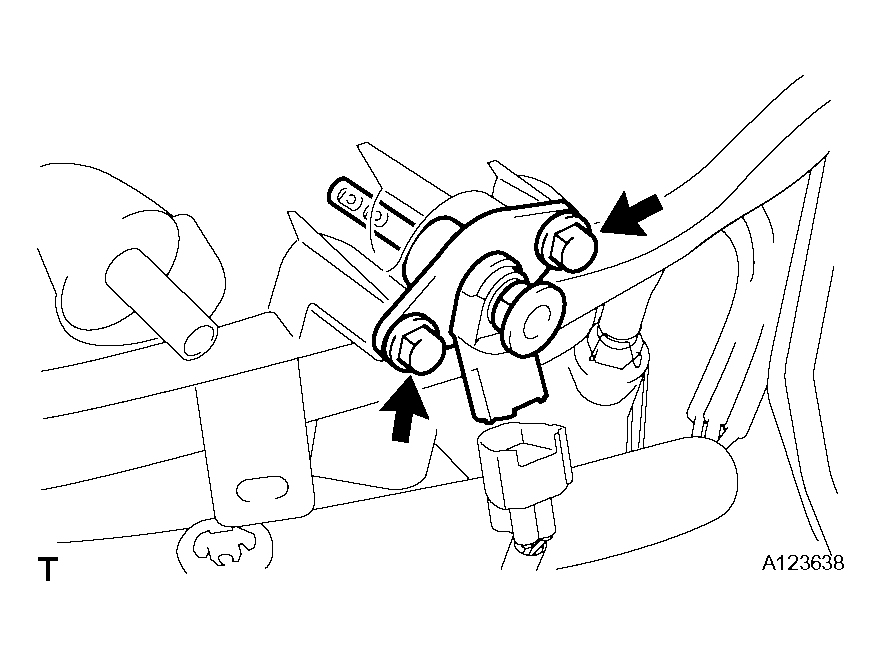

  Fig 2: Installing Cold Start Injector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
3. Install 2 new gaskets and the hose to the cold start injector with the bolt.

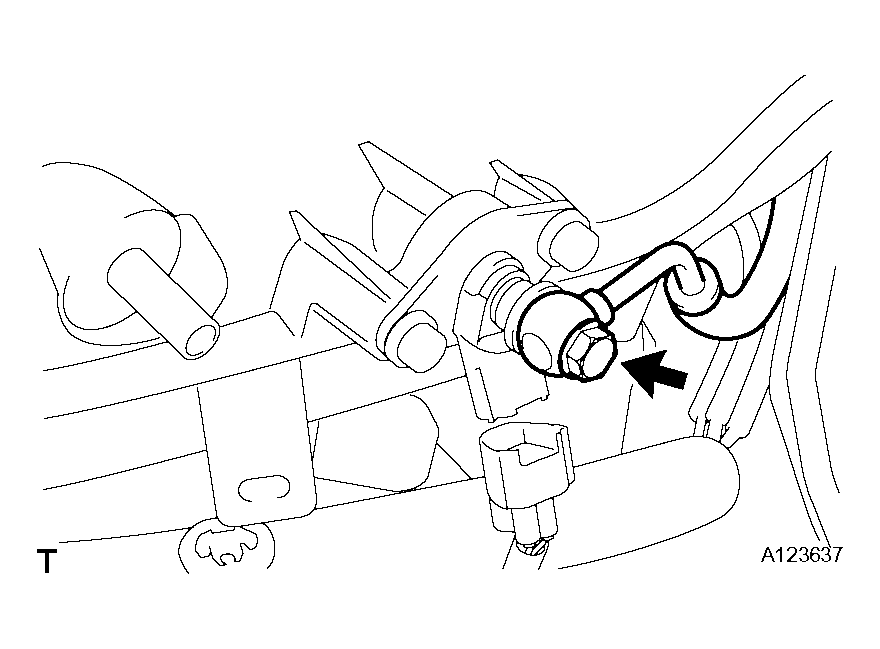

  Fig 3: Installing Hose To Cold Start Injector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)
  NOTE:
  - Be careful not to damage the gasket.
  - Do not fold or bend the hose.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See Step 93 in INSTALLATION )
CHECK FOR FUEL LEAKAGE (See ON-VEHICLE INSPECTION )
INSTALL V-BANK COVER SUB-ASSEMBLY (See Step 115 in INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (See INITIALIZATION ).
  HINT:

  Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
