Speed Sensor: Removal

  1. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)
    1. Disconnect the transmission revolution sensor connector.
    2. Remove the bolt and transmission revolution sensor.
    3. Remove the O-ring from the transmission revolution sensor.

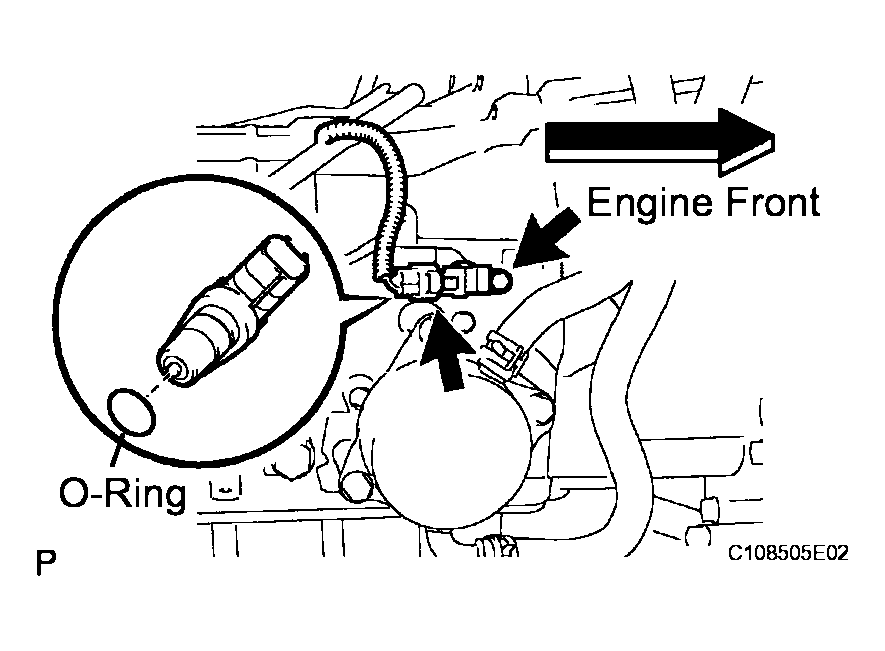

    Fig 1: Removing O-Ring From Transmission Revolution Sensor
    G04045232Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  2. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2)
    1. Disconnect the transmission revolution sensor connector.
    2. Remove the bolt and transmission revolution sensor.
    3. Remove the O-ring from the transmission revolution sensor.

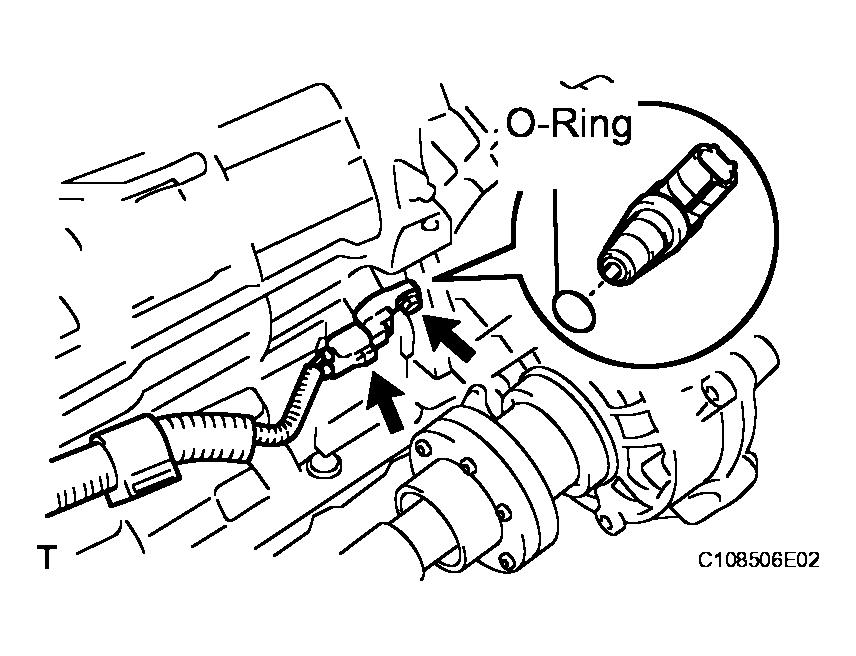

    Fig 2: Removing Transmission Revolution Sensor (SP2)
    G04045233Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
