Speed Sensor: Installation

  1. INSTALL TRANSMISSION REVOLUTION SENSOR (SP2)
    1. Coat a new O-ring with ATF WS and install it to the transmission revolution sensor.
    2. Install the transmission revolution sensor with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    3. Connect the transmission revolution sensor connector.

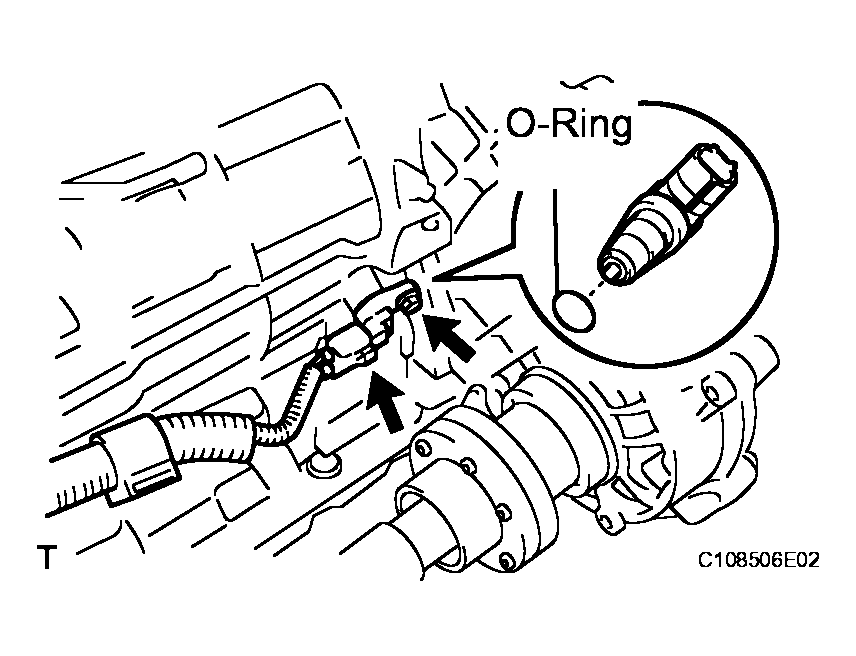

    Fig 1: Installing Transmission Revolution Sensor (SP2)
    G04045236Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  2. INSTALL TRANSMISSION REVOLUTION SENSOR (NT)
    1. Coat a new O-ring with ATF WS and install it to the transmission revolution sensor.
    2. Install the transmission revolution sensor with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    3. Connect the transmission revolution sensor connector.

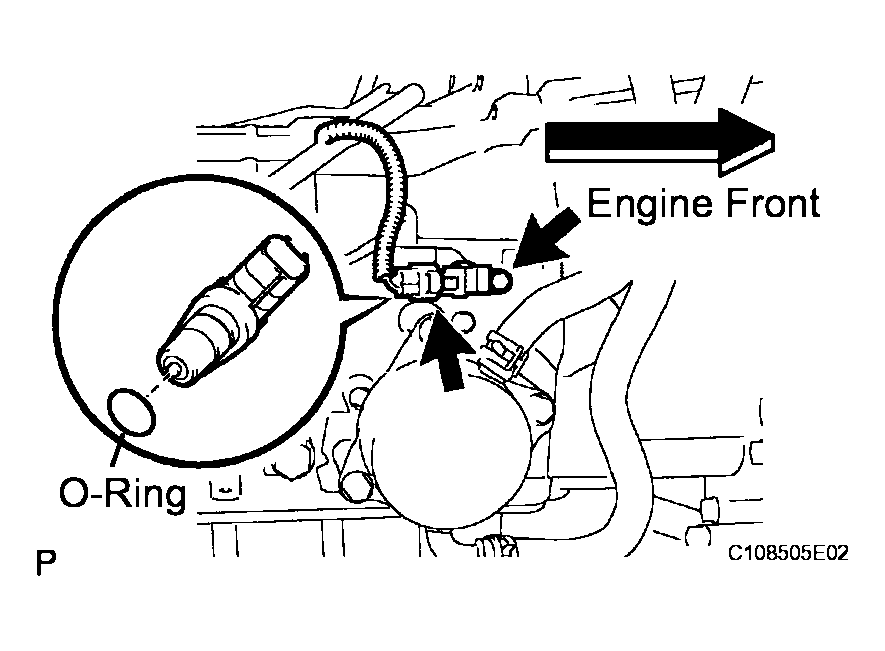

    Fig 2: Installing Transmission Revolution Sensor (NT)
    G04045237Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
