Speed Sensor
>>
Components
Speed Sensor: Components

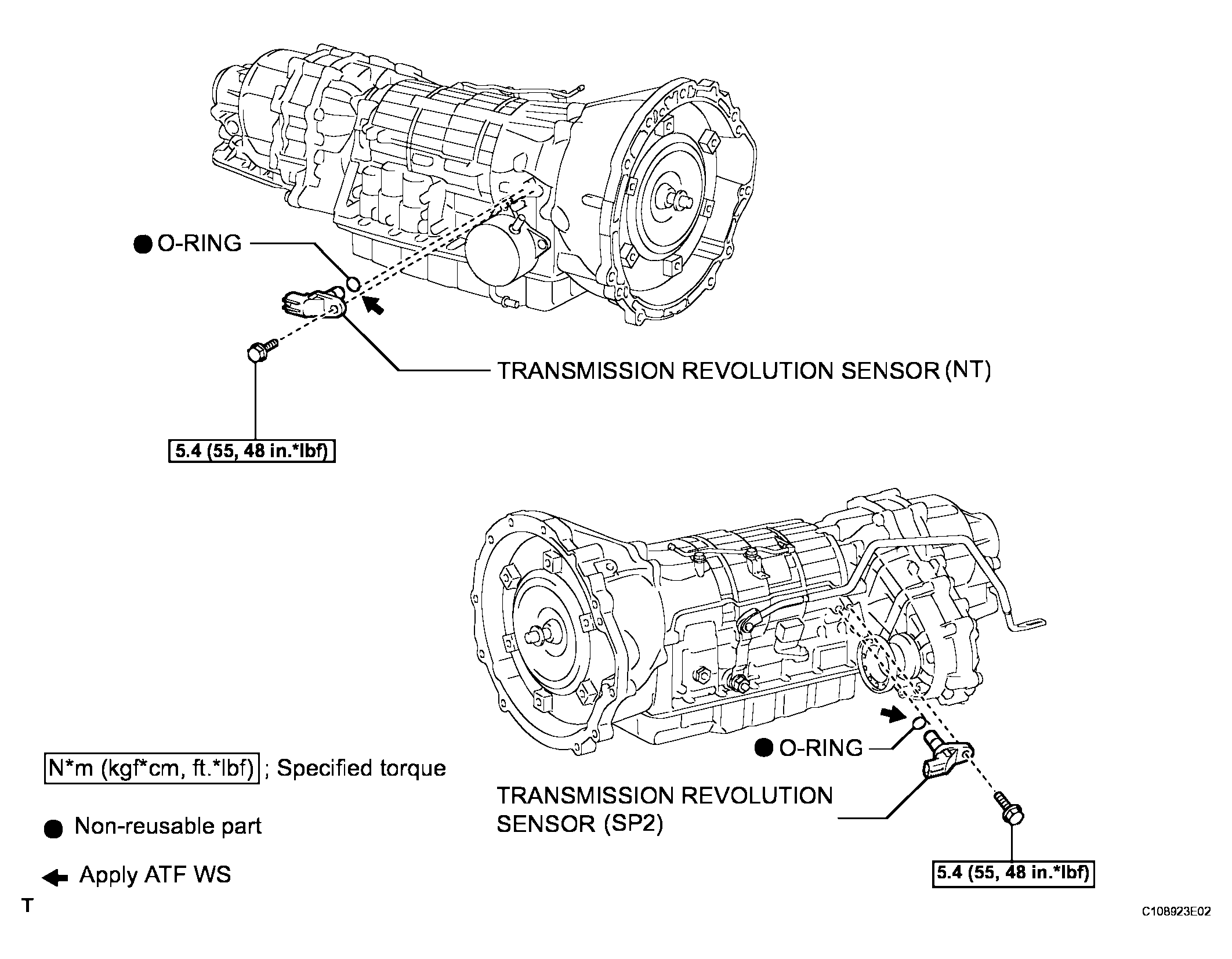

Fig 1: Speed Sensor Replacement Components With Torque Specifications
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
