Shift Paddle Switch: Installation

1. INSTALL SHIFT PADDLE SWITCH
   1. Install the 2 shift paddle switches and 2 brackets with the 4 screws.

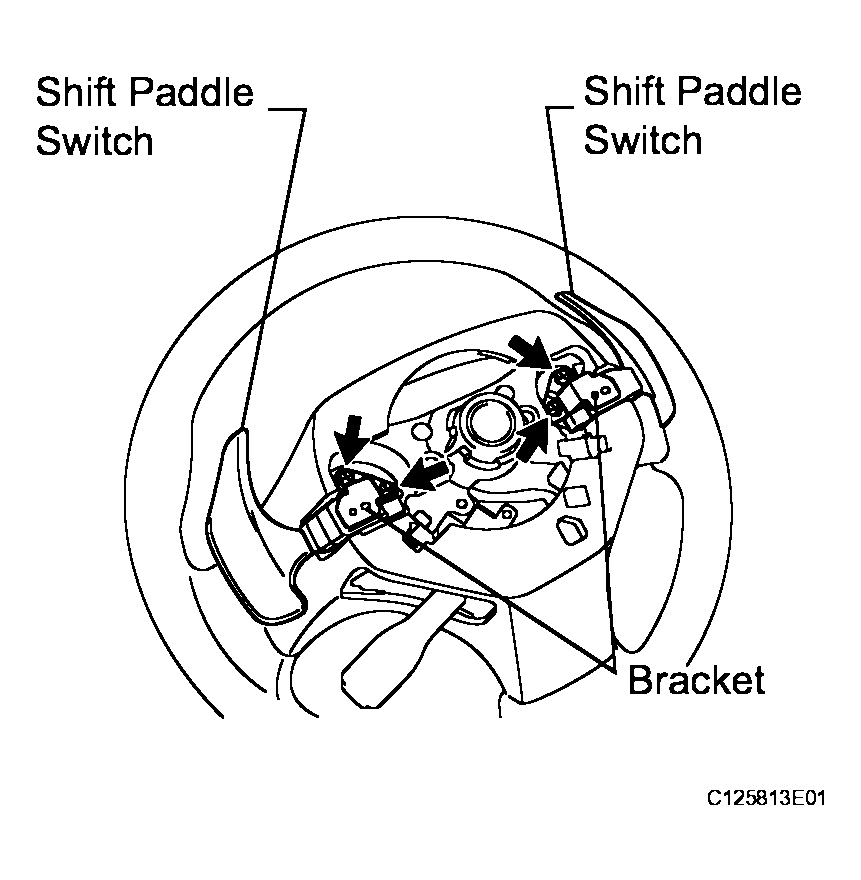

      Fig 1: Installing Shift Paddle Switches & Brackets With Screws

      Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

      Torque: 1.7 N*m (17 kgf*cm, 15 in.*lbf)

      NOTE: Make sure that the brackets are securely installed.
   2. Connect the 2 switch wire connectors to the shift paddle switches.

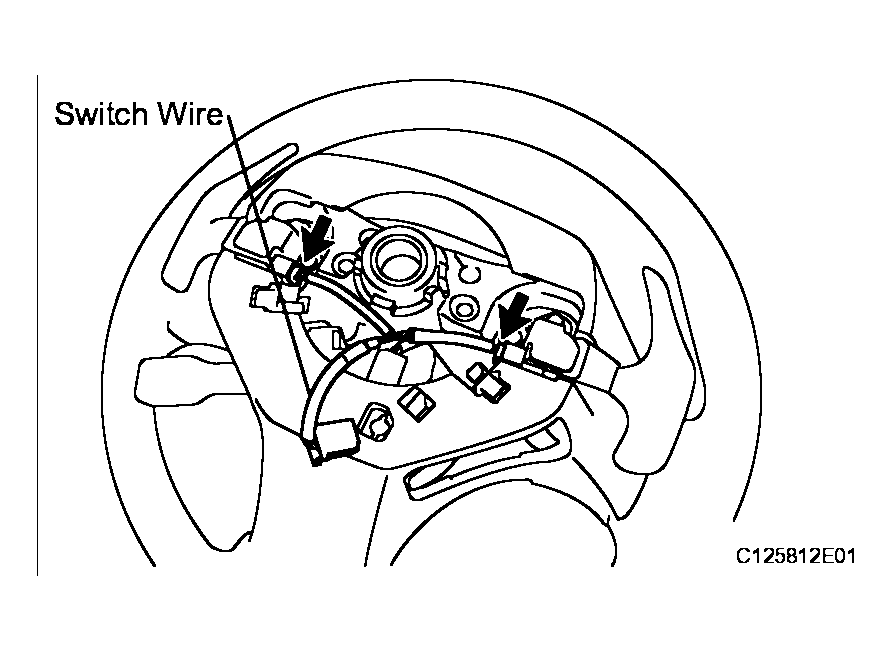

      Fig 2: Connecting Switch Wire Connectors To Shift Paddle Switches

      Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
   3. Install the connector to the steering wheel assembly.
   4. Install the clamp to the steering wheel assembly.

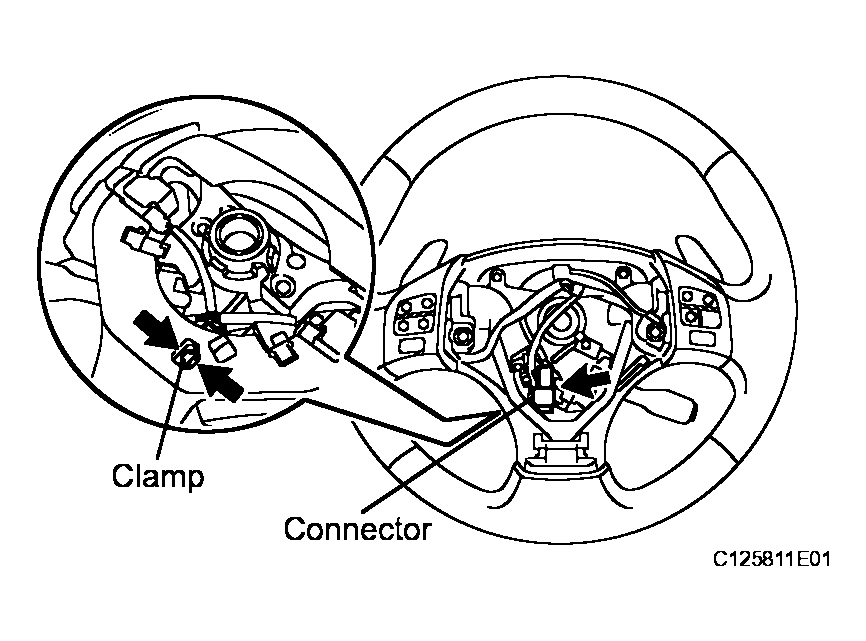

      Fig 3: Installing Clamp To Steering Wheel Assembly

      Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. ADJUST SPIRAL CABLE SUB-ASSEMBLY (See  INSPECTION  )
3. INSTALL STEERING WHEEL ASSEMBLY (See step 9 in  INSTALLATION  )
4. INSTALL STEERING PAD (See  INSTALLATION  )
5. INSTALL LOWER NO. 3 STEERING WHEEL COVER (See step 2 in  INSTALLATION  )
6. INSTALL LOWER NO. 2 STEERING WHEEL COVER (See step 3 in  INSTALLATION  )
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION

   Some systems need initialization after reconnecting the cable to the negative battery terminal (See INITIALIZATION ).

9. INSPECT STEERING PAD (See  ON-VEHICLE INSPECTION  )
10. INSPECT SRS WARNING LIGHT

(See PROBLEM SYMPTOMS TABLE )
