Shift Paddle Switch: Inspection

INSPECT SHIFT PADDLE SWITCH

Disconnect the switch wire connector from the transmission shift switch.
Measure the resistance between each terminal when the paddle shift is moved to each position.

Standard resistance

SHIFT PADDLE SWITCH

Paddle Shift Position	Tester Connection	Specified Condition
Pull continuously "+" (Up shift)	SFTU - ECC	Below 1 ohms
Release "+" (Up shift)	SFTU - ECC	10 k ohms or higher
Pull continuously "-" (Down shift)	SFTD - ECC	Below 1 ohms
Release "-" (Down shift)	SFTD - ECC	10 k ohms or higher

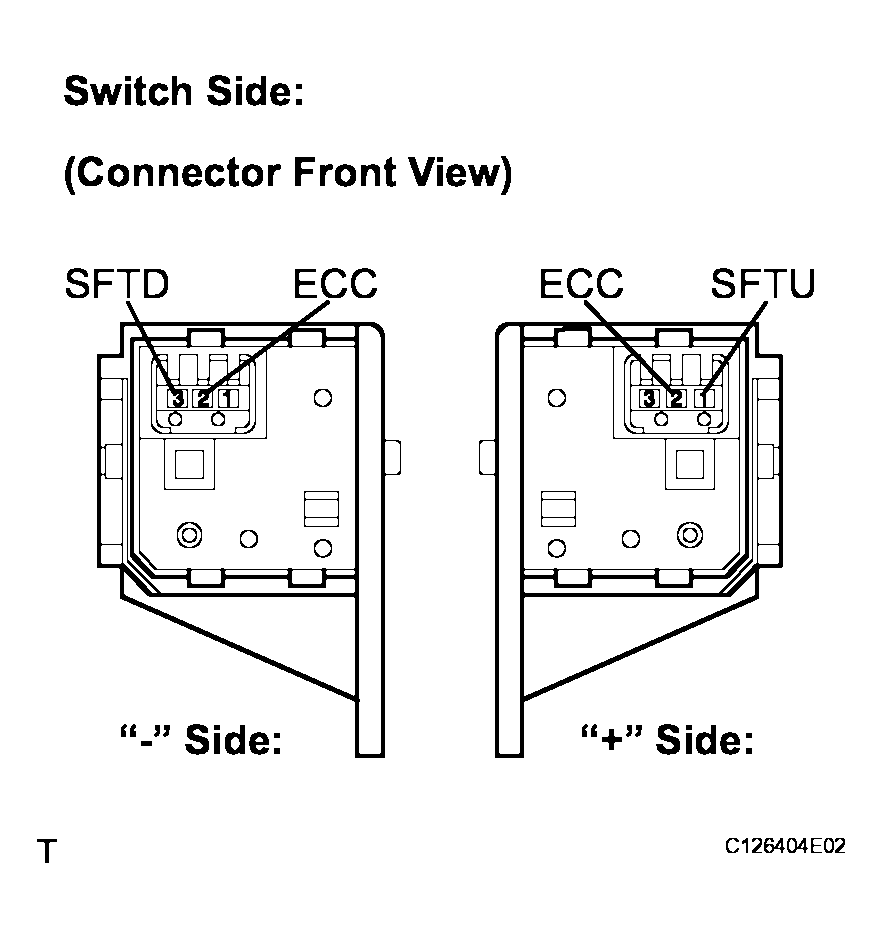

Fig 1: Identifying Shift Paddle Switch

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

If the resistance value is not as specified, replace the shift paddle switch.
