Automatic Transmission (A760H)
>>
Shift Paddle Switch
>>
Components
Shift Paddle Switch: Components

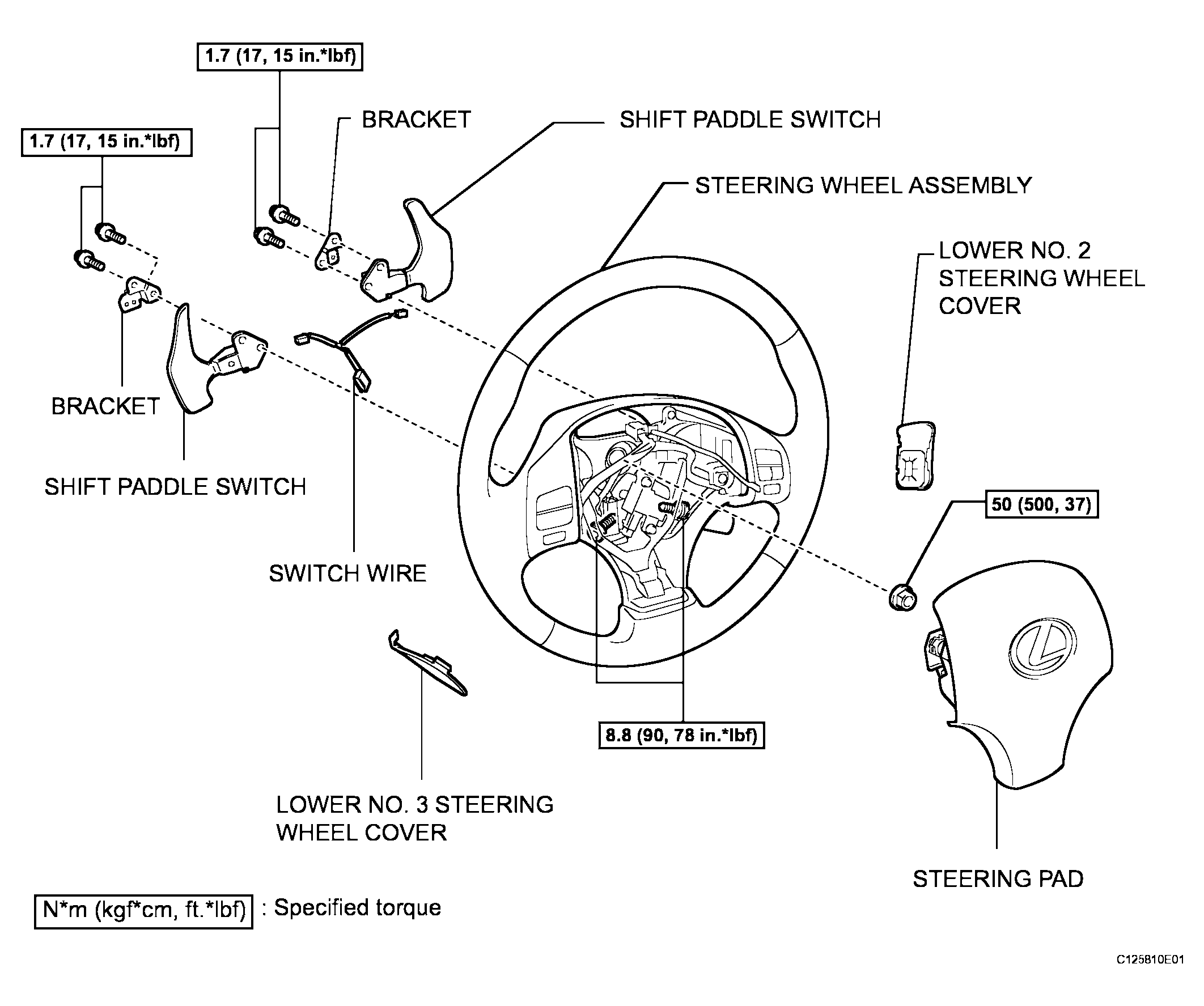

Fig 1: Identifying Shift Paddle Switch Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
