Shift Lever Assembly: Reassembly

INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
1. Install the shift lock control ECU sub-assembly with the 2 screws.

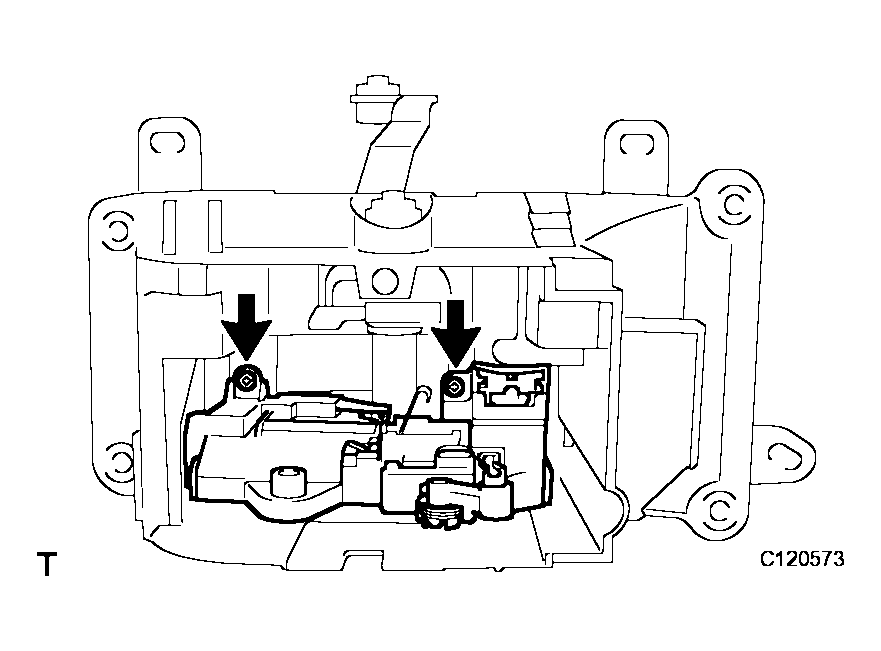

Fig 1: Installing Shift Lock Control ECU Sub-Assembly With 2 Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSTALL TRANSMISSION CONTROL SWITCH
1. Install the shift lever with the pin and shift lever nut.

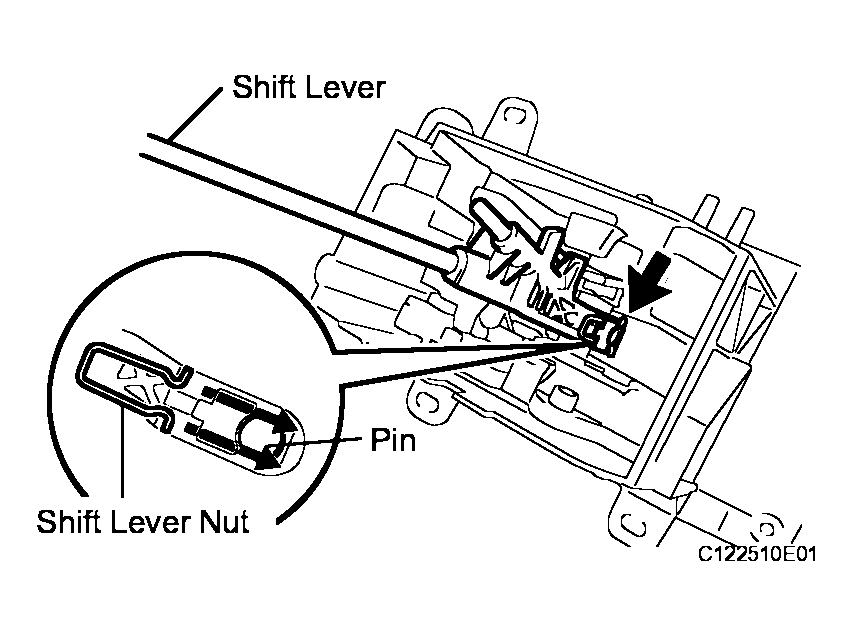

  Fig 2: Installing Shift Lever With Pin And Shift Lever Nut
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Apply MP grease to the hatched area of the shift lever guide housing as indicated in the illustration.

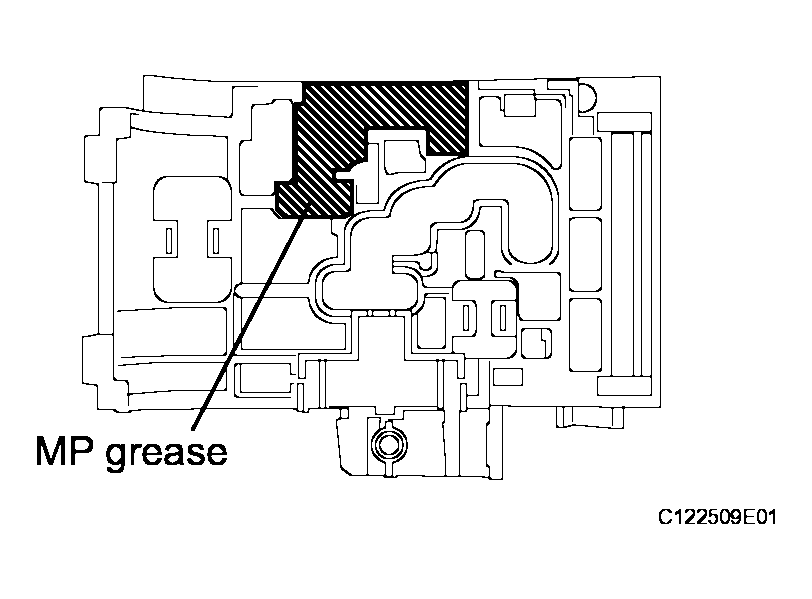

  Fig 3: Applying MP Grease To Hatched Area Of Shift Lever Guide Housing
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3. Install the transmission control switch to the shift lever guide housing.
  NOTE: Securely engage the claws.

  Fig 4: Installing Transmission Control Switch To Shift Lever Guide Housing
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4. Install the shift lever guide housing with the shift lever lock pin and a new shift lever support.
  NOTE:
  - Install the shift lever nut and lock pin after first engaging the 2 claws.
  - Securely engage the claws.
  Fig 5: Installing Shift Lever Guide Housing
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5. Connect the transmission control switch connector to the floor shift assembly.

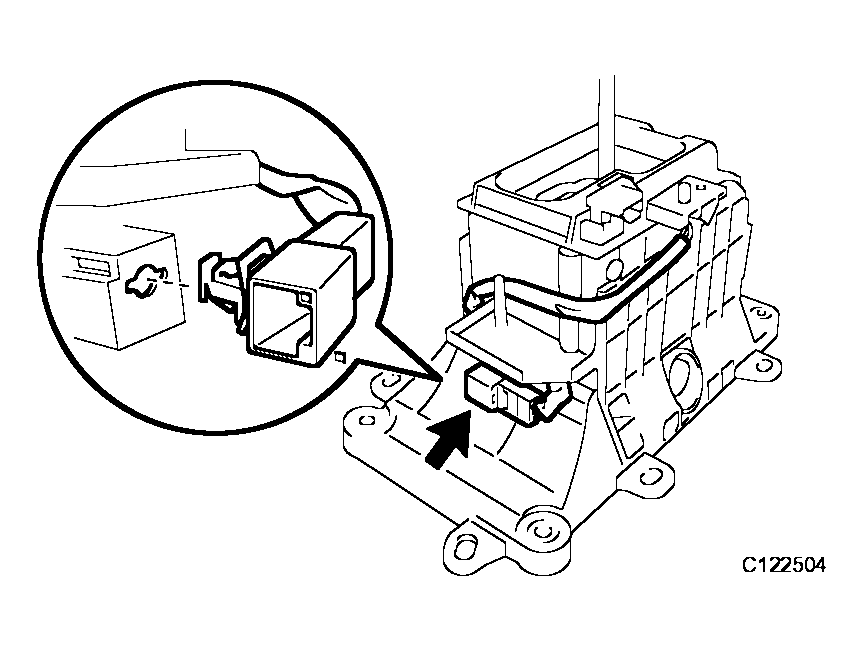

Fig 6: Connecting Transmission Control Switch Connector To Floor Shift Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSTALL SHIFT POSITION INDICATOR
1. Install the shift position indicator to the console panel upper with the 4 screws.

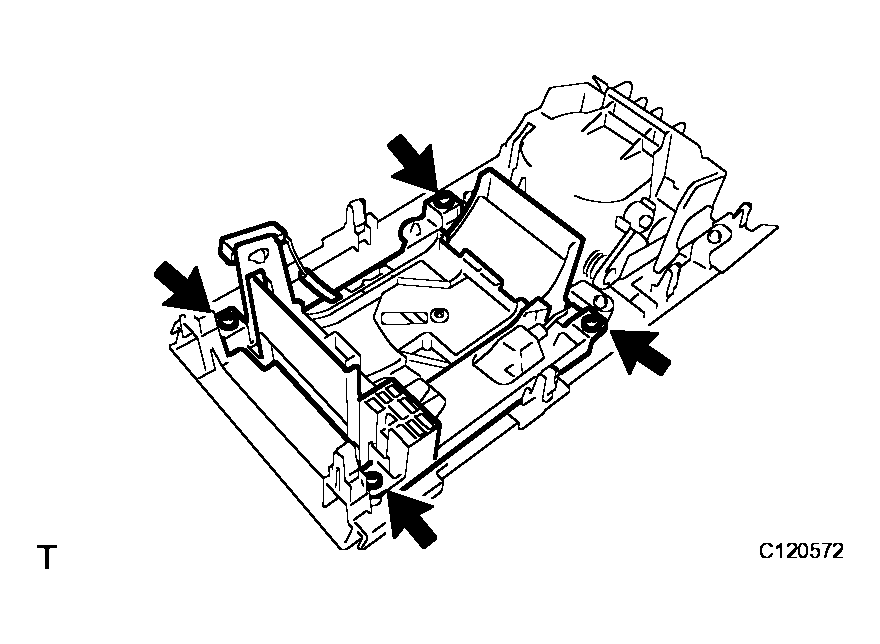

Fig 7: Installing Shift Position Indicator To Console Panel Upper With 4 Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
