Shift Lever Assembly: Disassembly

REMOVE SHIFT POSITION INDICATOR
1. Remove the 4 screws and shift position indicator.

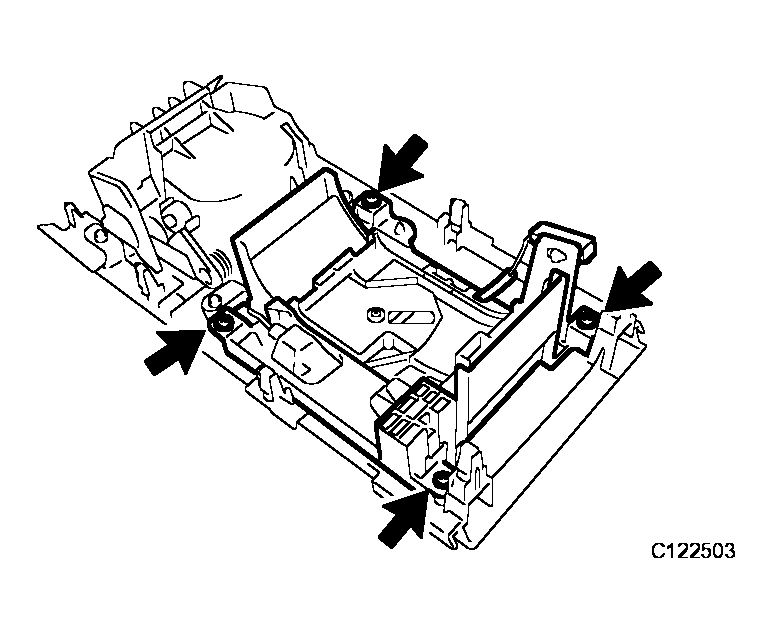

Fig 1: Removing Screws & Shift Position Indicator
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REMOVE TRANSMISSION CONTROL SWITCH
1. Remove the transmission control switch connector from the floor shift assembly.

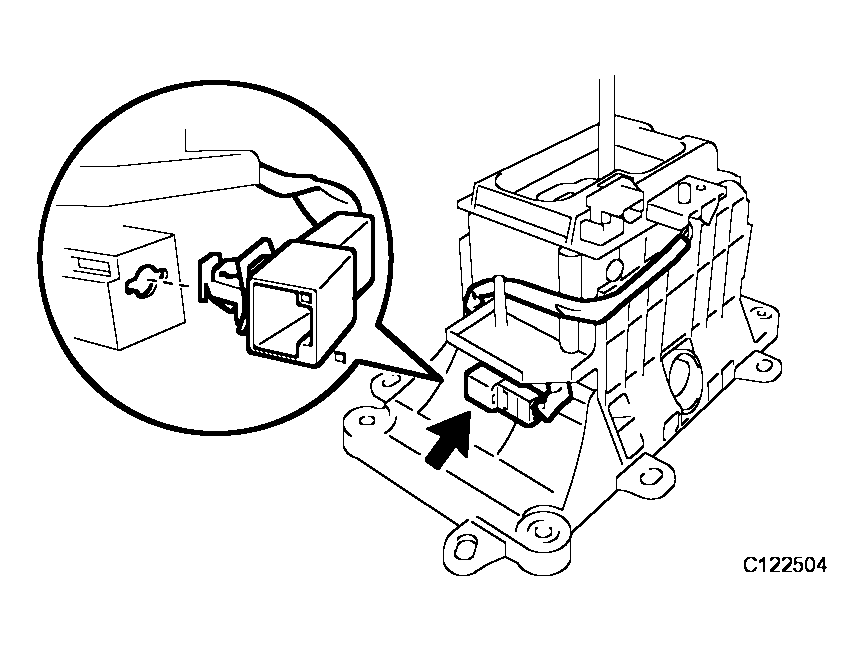

  Fig 2: Removing Transmission Control Switch Connector From Floor Shift Assembly
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Remove the shift lever support and lock pin from the floor shift assembly.
3. Remove the shift lever guide housing from the floor shift assembly.

  Fig 3: Removing Shift Lever Support & Lock Pin From Floor Shift Assembly
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

  NOTE: First remove the shift lever nut and lock pin, then disengage the 2 claws.
4. Remove the transmission control switch from the shift lever guide housing.
Fig 4: Removing Transmission Control Switch From Shift Lever Guide Housing
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REMOVE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
1. Remove the shift lever nut, and pull the pin.
2. Remove the shift lever.

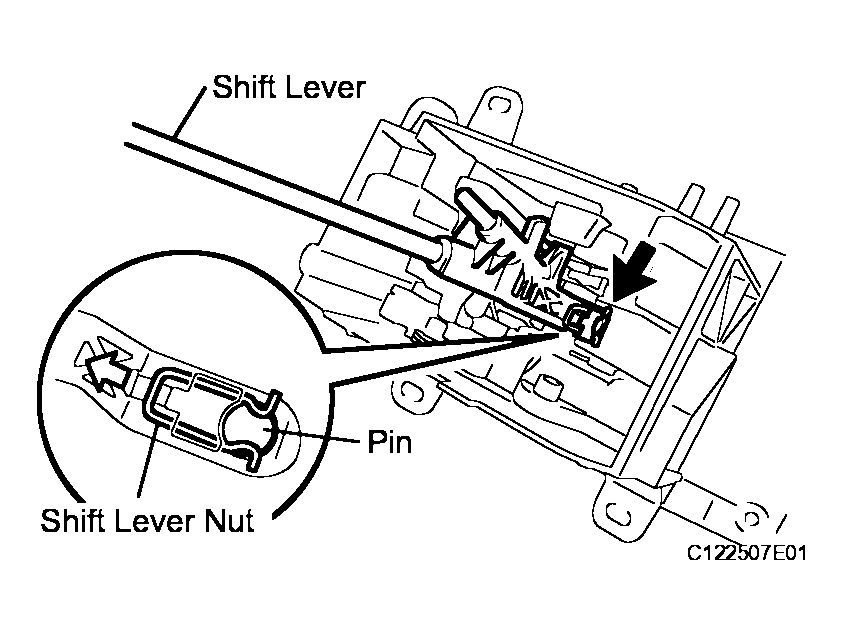

  Fig 5: Removing Shift Lever Nut & Pulling Pin
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3. Remove the 2 screws and shift lock control ECU sub-assembly.

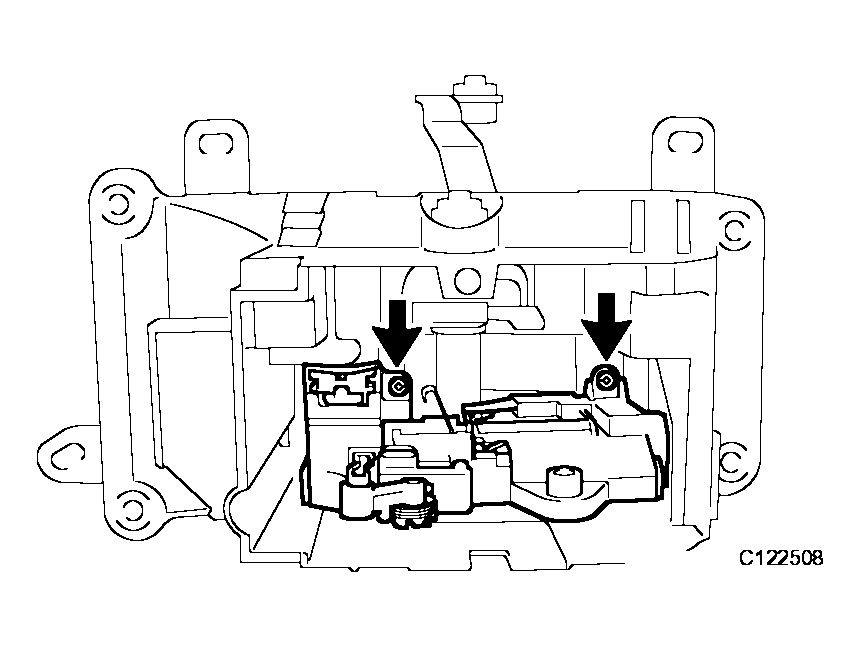

Fig 6: Removing Screws & Shift Lock Control ECU Sub-Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
