Shift Lever Assembly: Components

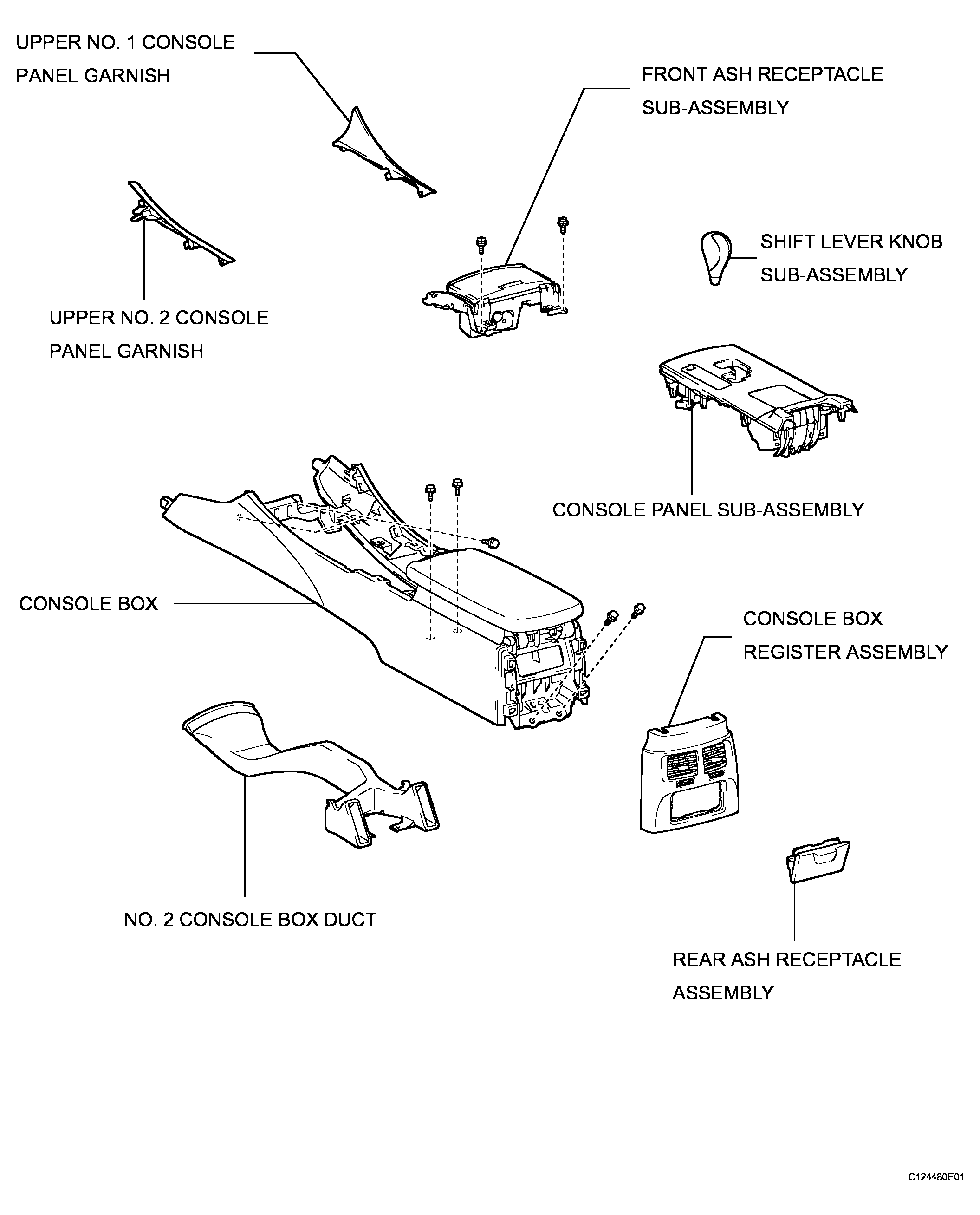

Fig 1: Identifying Shift Lever Assembly Components (1 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

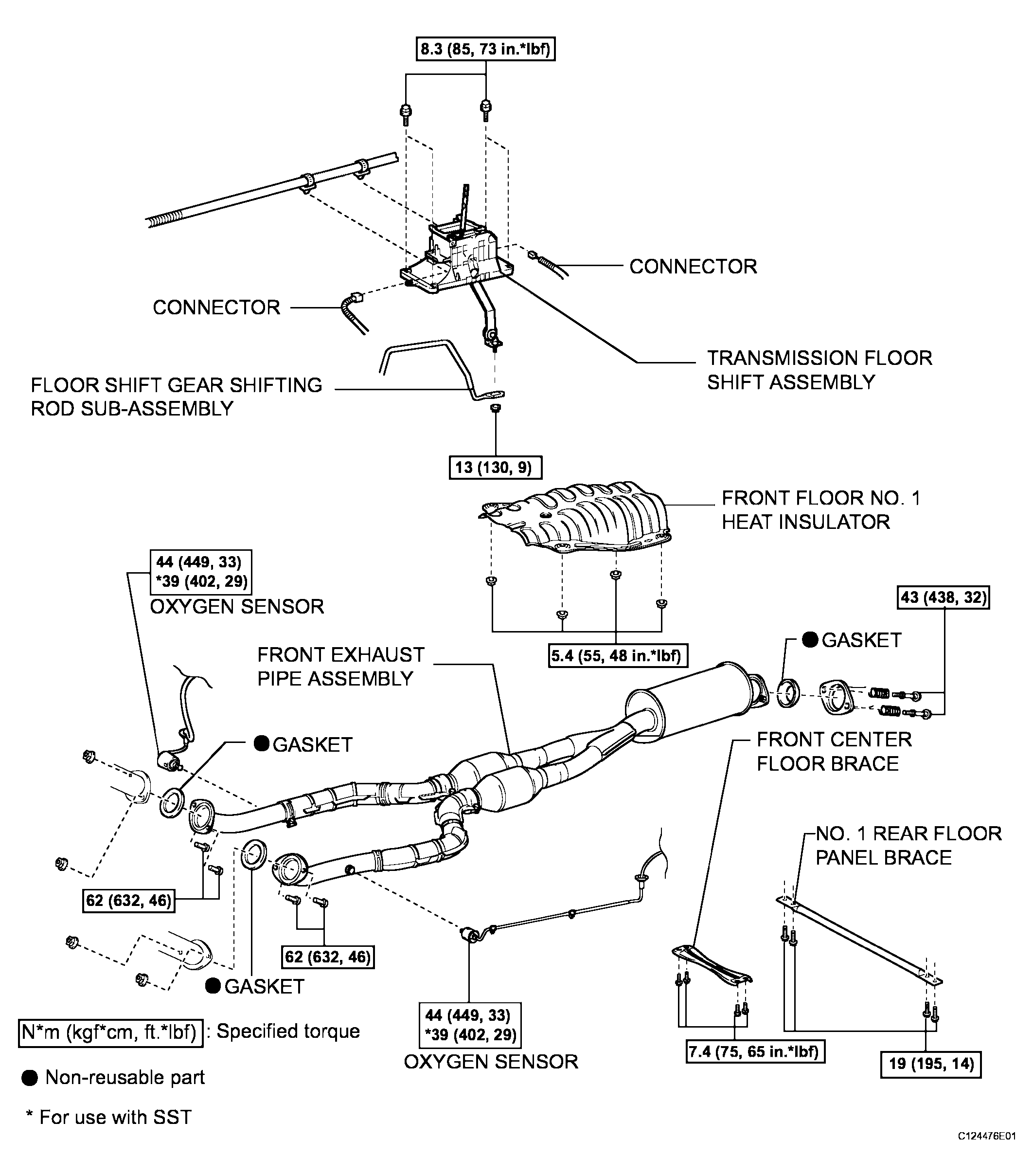

Fig 2: Shift Lever Assembly Replacement Components With Torque Specifications (2 Of 3) (
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

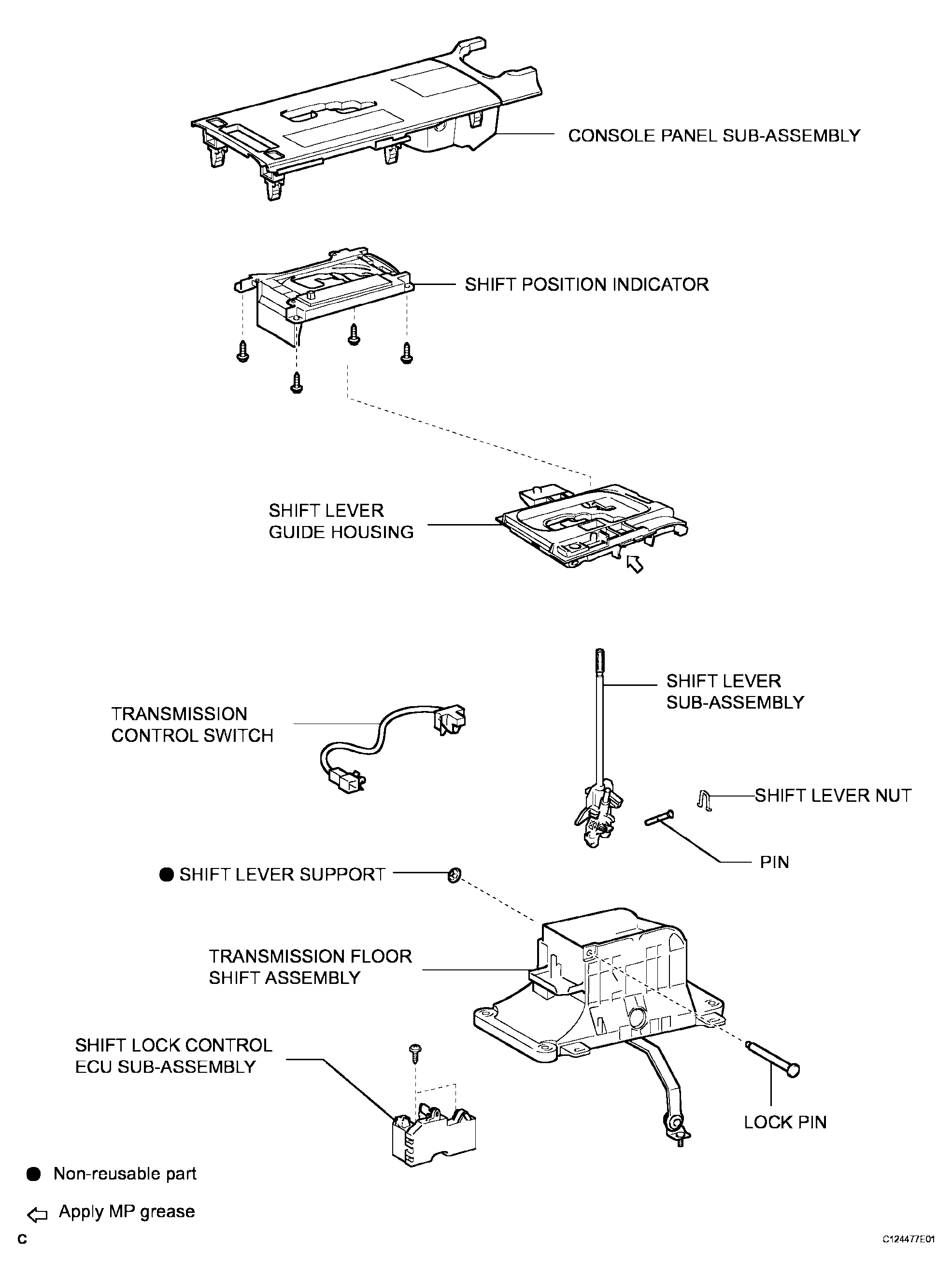

Fig 3: Identifying Shift Lever Assembly Components (3 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
