Pattern Select Switch: Removal

REMOVE FRONT DOOR SCUFF PLATE LH (See step 50 in REMOVAL )
REMOVE FRONT DOOR OPENING TRIM COVER LH (See step 27 in REMOVAL )
REMOVE SIDE INSTRUMENT PANEL LH (See step 28 in REMOVAL )
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See step 30 in REMOVAL )
REMOVE SWITCH BASE
1. Disengage the 4 claws, and remove the switch base from the lower instrument panel finish panel.

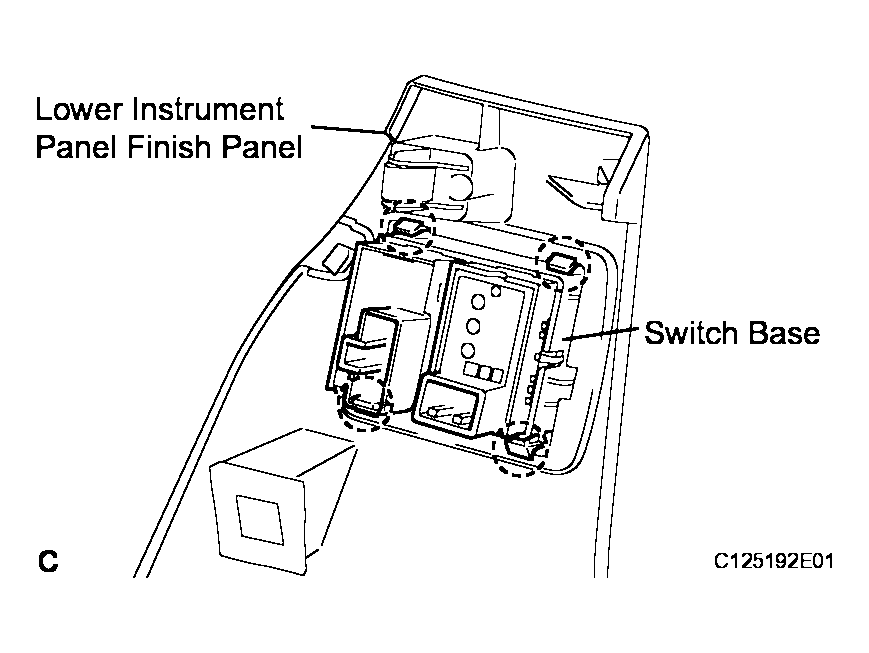

  Fig 1: Removing Switch Base From Lower Instrument Panel Finish Panel
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REMOVE NO. 1 PATTERN SELECT SWITCH ASSEMBLY
1. Disengage the 2 claws, and remove the pattern select switch from the switch base.
Fig 2: Removing Claws & Pattern Select Switch From Switch Base
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
