Oil Pump: Components

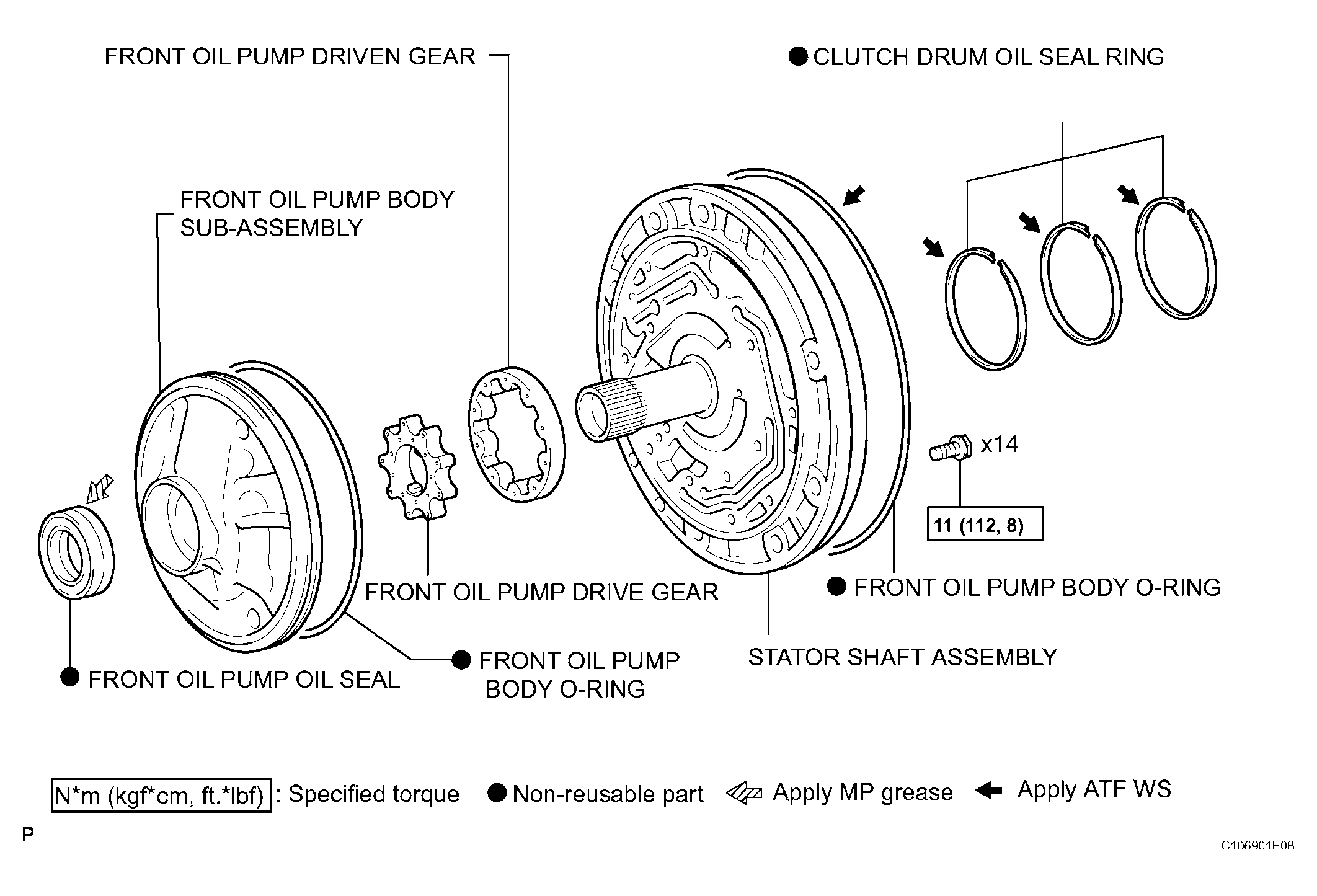

Fig 1: Oil Pump Replacement Components With Torque Specifications
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
