System Diagram

The configuration of the electronic control system in the A760H automatic transmission is as shown.

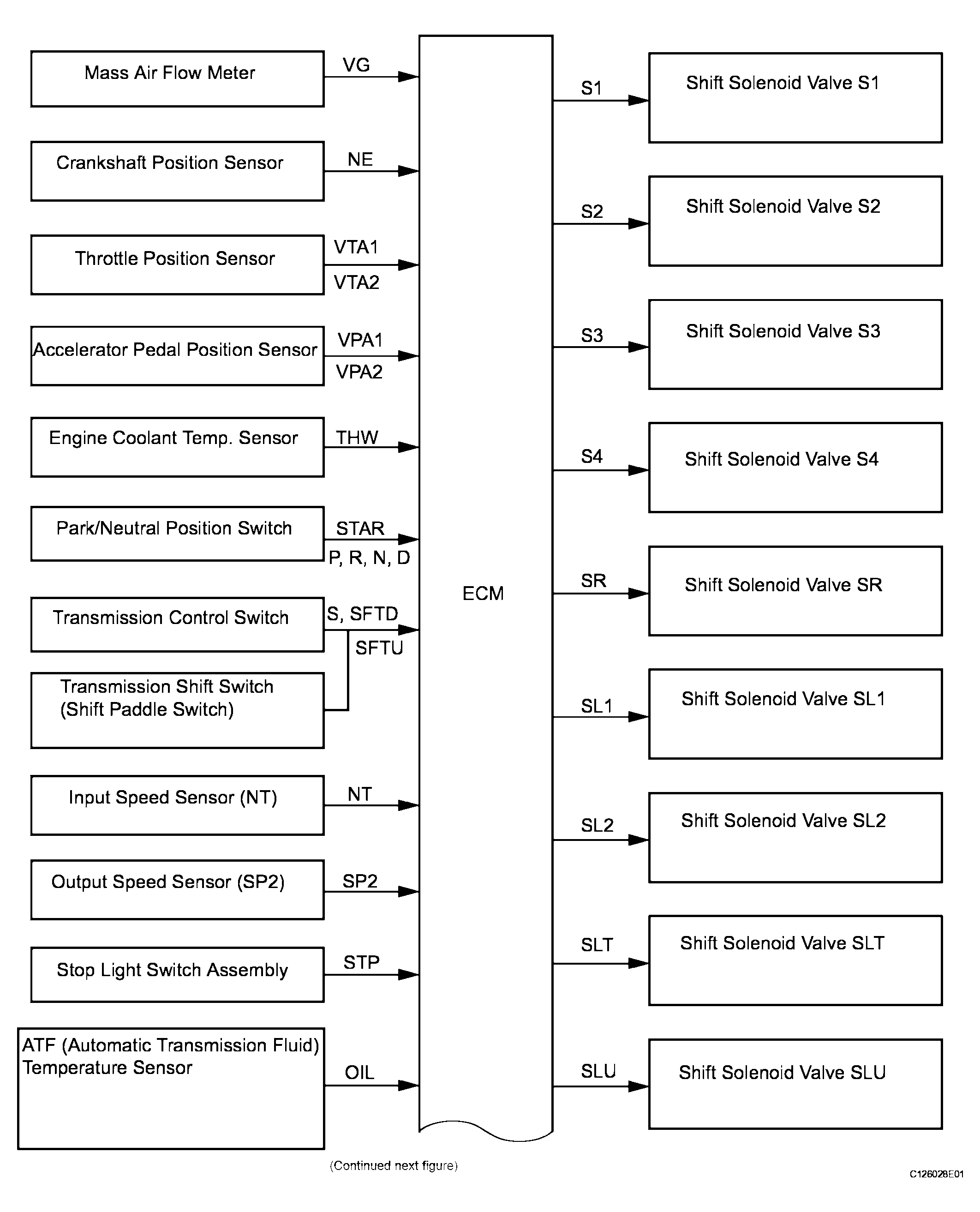

Fig 1: Identifying Automatic Transmission System Diagram (A760H) (1 Of 4)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

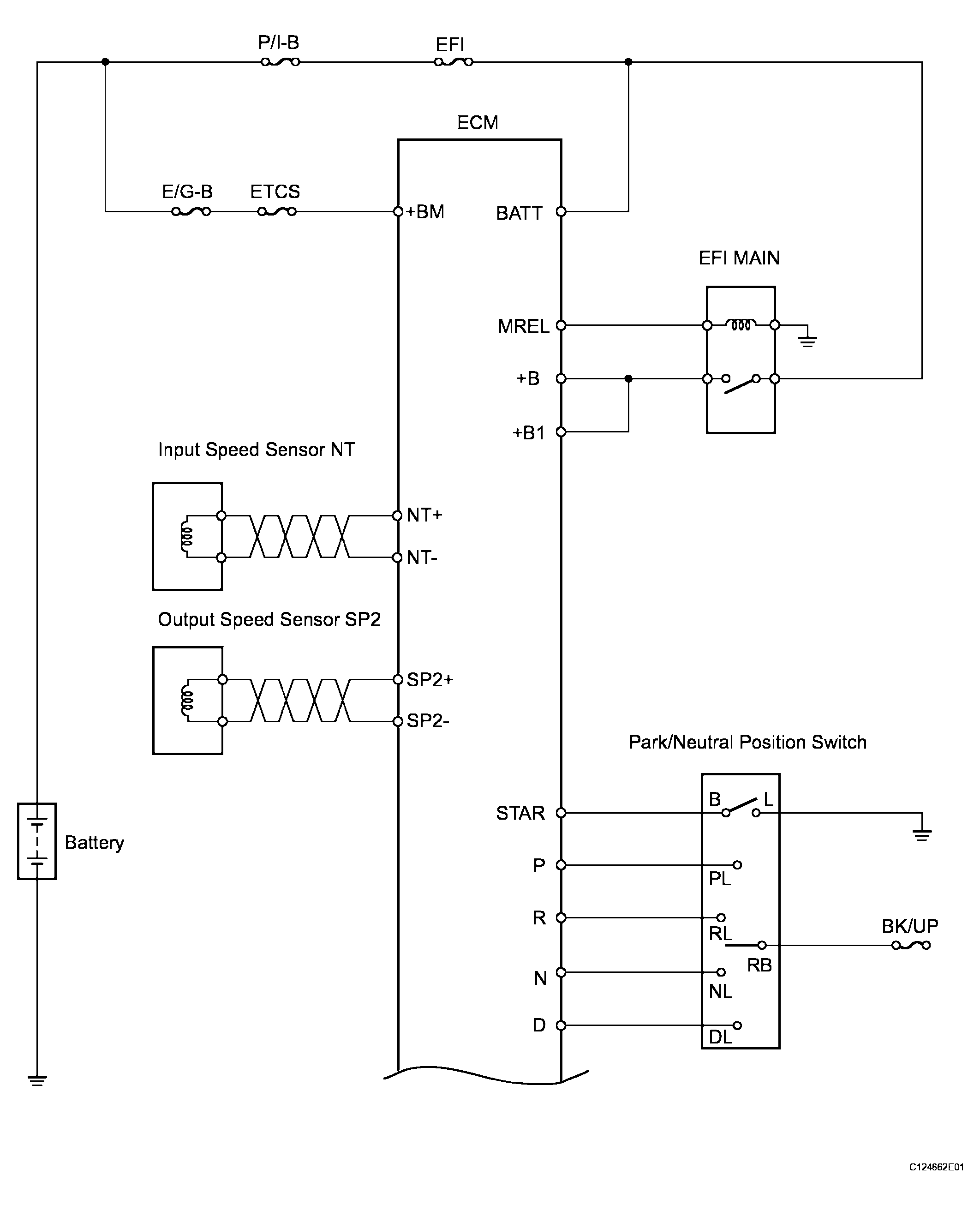

Fig 2: Identifying Automatic Transmission System Diagram (A760H) (2 Of 4)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

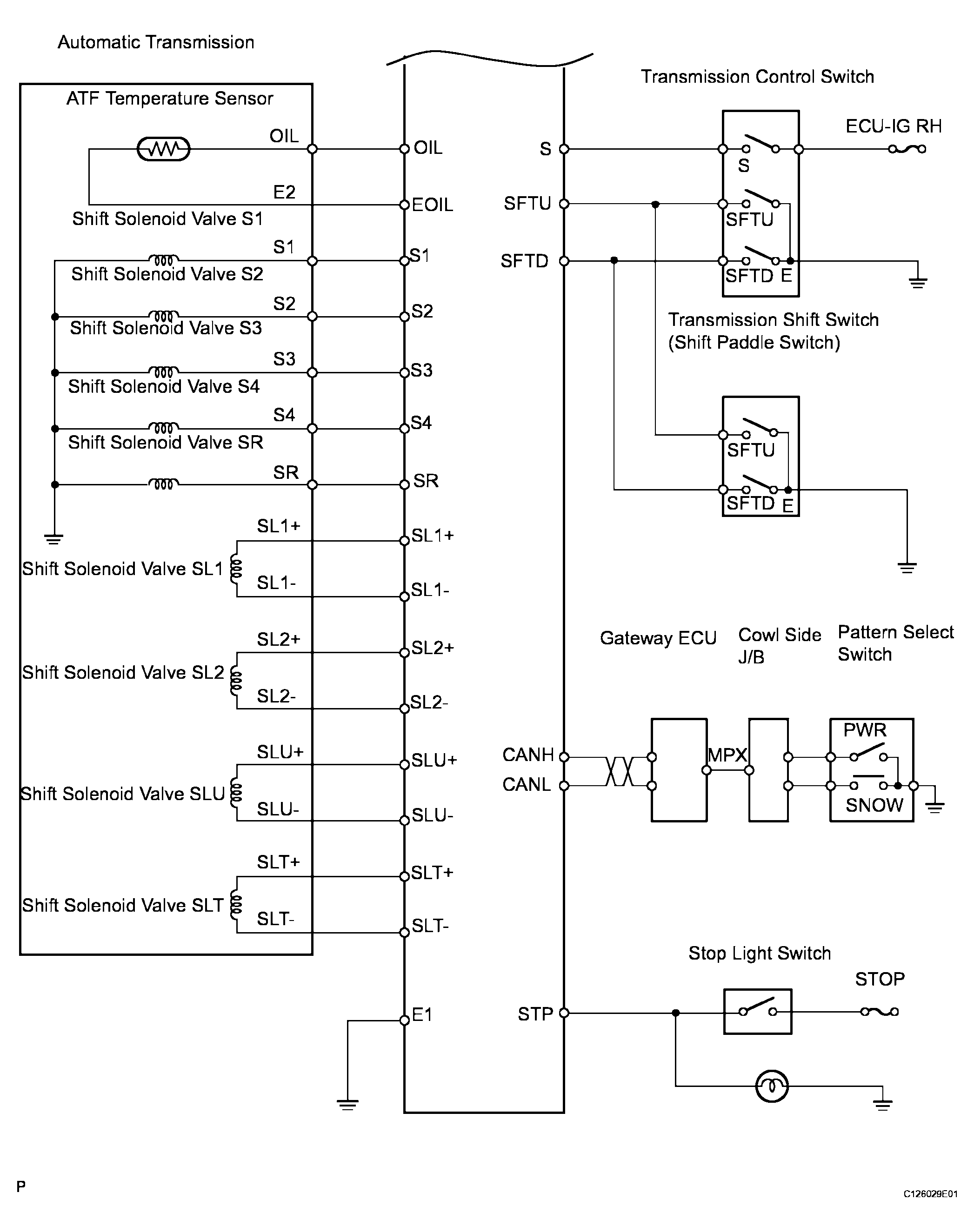

Fig 3: Identifying Automatic Transmission System Diagram (A760H) (3 Of 4)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

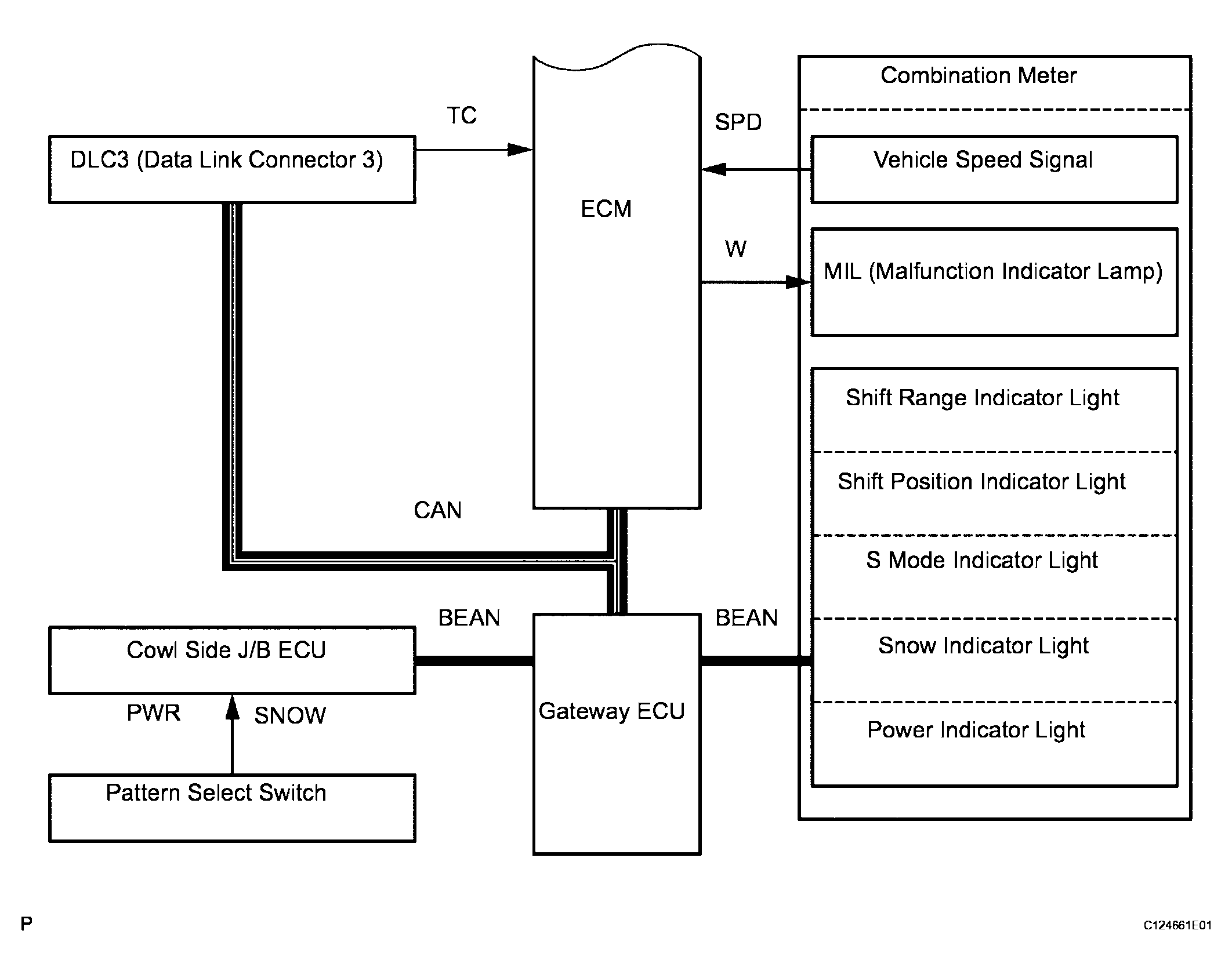

Fig 4: Identifying Automatic Transmission System Diagram (A760H) (4 Of 4)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
