Inspection Procedure

  1. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE - BODY GROUND)
    1. Disconnect the steering pad switch connector and spiral cable connector.
    2. Measure the resistance according to the value(s) in SPIRAL CABLE - BODY GROUND  .

    Standard resistance

    SPIRAL CABLE - BODY GROUND

    Tester Connection Specified Condition
    2 - Body ground Below 1 ohms
    Fig 1: Checking Harness And Connector (Spiral Cable - Body Ground)
    G04045214Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go To Next Step

  2. INSPECT SPIRAL CABLE SUB-ASSEMBLY
    1. Measure the resistance according to the value(s) in SPIRAL CABLE SUB-ASSEMBLY  .

    Standard resistance

    SPIRAL CABLE SUB-ASSEMBLY

    Shift Position Tester Connection Specified Condition
    J24-2 - k1-6 Always Below 1 ohms
    J24-9 - k1-2 Always Below 1 ohms
    J24-10 - k1-3 Always Below 1 ohms

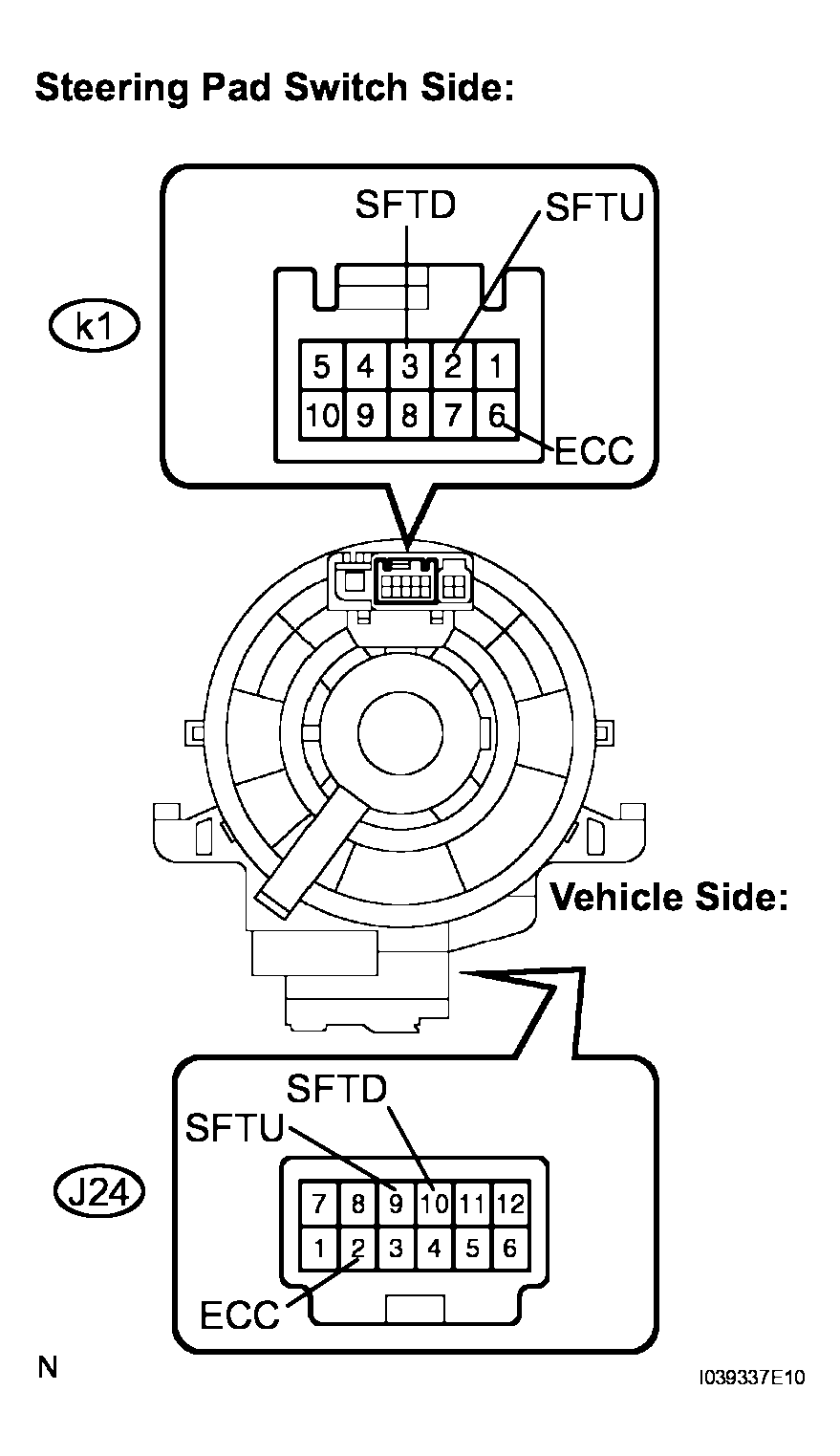

    Fig 2: Inspecting Spiral Cable Sub-Assembly
    G04045215Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: REPLACE SPIRAL CABLE SUB-ASSEMBLY

    OK: Go To Next Step

  3. INSPECT TRANSMISSION SHIFT SWITCH ASSEMBLY
    1. Disconnect the switch wire connector from the transmission shift switch.
    2. Measure the resistance between each terminal when the paddle shift is moved to each position.

    Standard resistance

    TRANSMISSION SHIFT SWITCH ASSEMBLY

    Paddle Shift Position Tester Connection Specified Condition
    Pull continuously "+" (Up shift) SFTU - ECC Below 1 ohms
    Release "+" (Up shift) 10 k ohms or higher
    Pull continuously "-" (Down shift) SFTD - ECC Below 1 ohms
    Release "-" (Down shift) 10 k ohms or higher

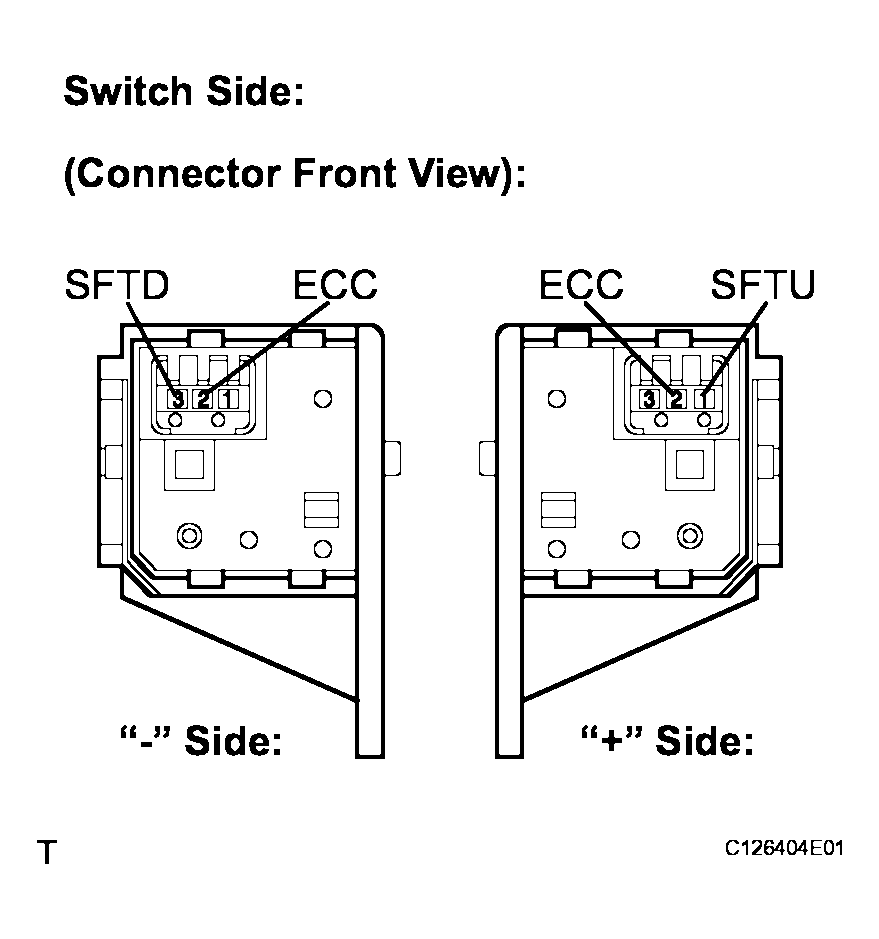

    Fig 3: Inspecting Transmission Shift Switch Assembly
    G04045216Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: REPLACE TRANSMISSION SHIFT SWITCH ASSEMBLY

    OK: Go To Next Step

  4. INSPECT SWITCH WIRE
    1. Connect the switch wire connector to the transmission shift switch.
    2. Measure the resistance between each terminal when the paddle shift is moved to each position.

    Standard resistance

    SWITCH WIRE

    Paddle Shift Position Tester Connection Specified Condition
    Pull continuously "+" (Up shift) 2 - 6 Below 1 ohms
    Release "+" (Up shift) 10 k ohms or higher
    Pull continuously "-" (Down shift) 3 - 6 Below 1 ohms
    Release "-" (Down shift) 10 k ohms or higher
    Fig 4: Inspecting Switch Wire
    G04045217Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: REPLACE SWITCH WIRE

    OK: Go To Next Step

  5. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE - ECM)
    1. Connect the spiral cable connector and steering pad switch connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in SPIRAL CABLE - ECM  when the paddle shift is moved to each position.

    Standard resistance

    SPIRAL CABLE - ECM

    Paddle Shift Position Tester Connection Specified Condition
    Pull continuously "+" (Up shift) A6-30 (SFTU) - Body ground Below 1 ohms
    Release "+" (Up shift) 10 k ohms or higher
    Pull continuously "-" (Down shift) A6-19 (SFTD) - Body ground Below 1 ohms
    Release "-" (Down shift) 10 k ohms or higher
    Fig 5: Checking Harness And Connector (Spiral Cable - ECM)
    G04045218Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
