Pattern Select Switch Snow Mode Circuit: Wiring Diagram

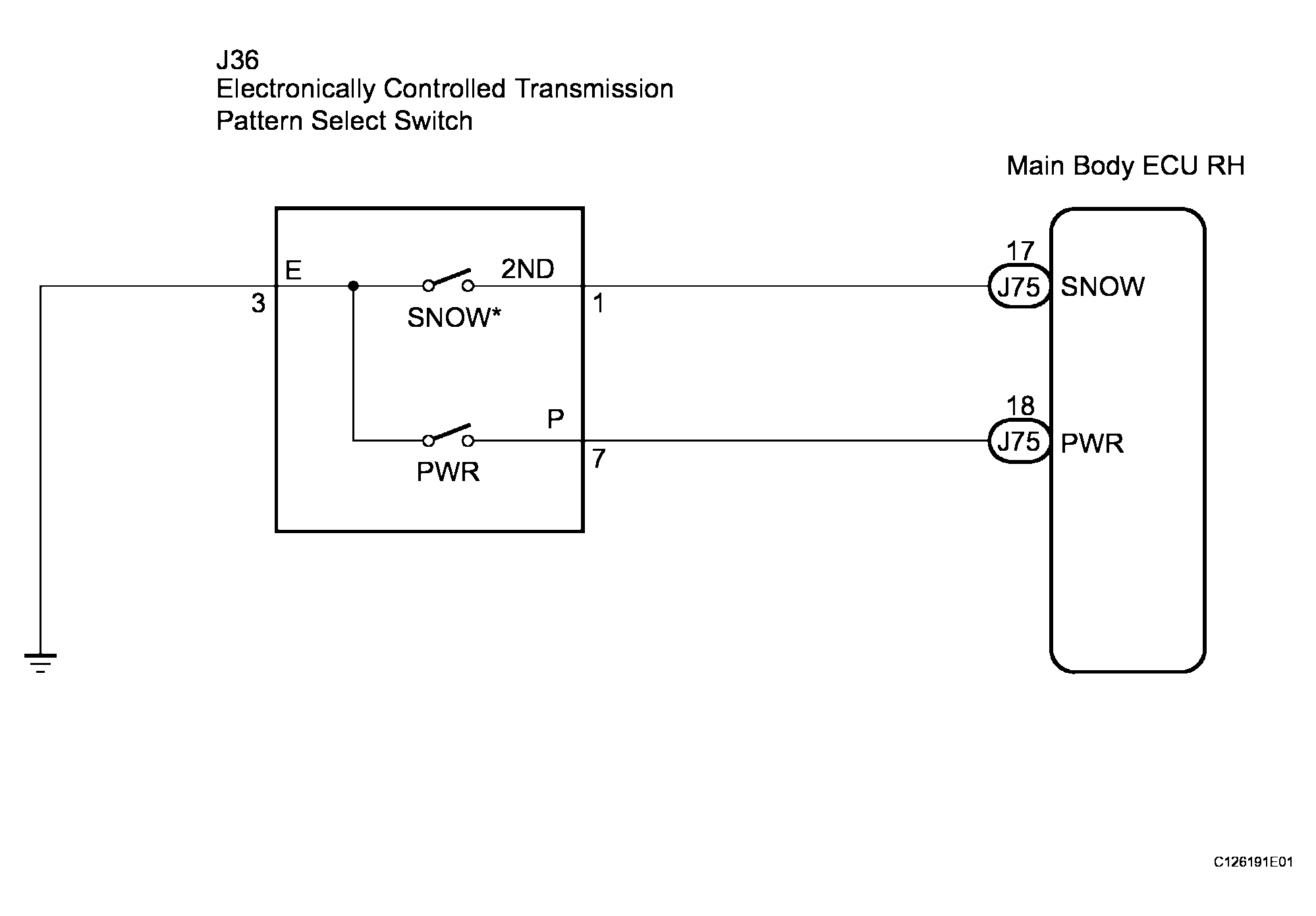

Fig 1: Identifying Pattern Select Switch Snow Mode Circuit Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

HINT:

(*) Pattern Select Switch (ECT SNOW Switch)

When the ECT SNOW switch is pushed, the switch contact is made and the ECT SNOW mode is selected.

To cancel the ECT SNOW mode, push the ECT SNOW switch once again.

The ECT SNOW mode is automatically cancelled out when the ignition switch is turned "OFF".
