Automatic Transmission Assembly: Components

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications) (1 Of 3)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig 2: Automatic Transmission Assembly Replacement Components With Torque Specifications (2 Of 3)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

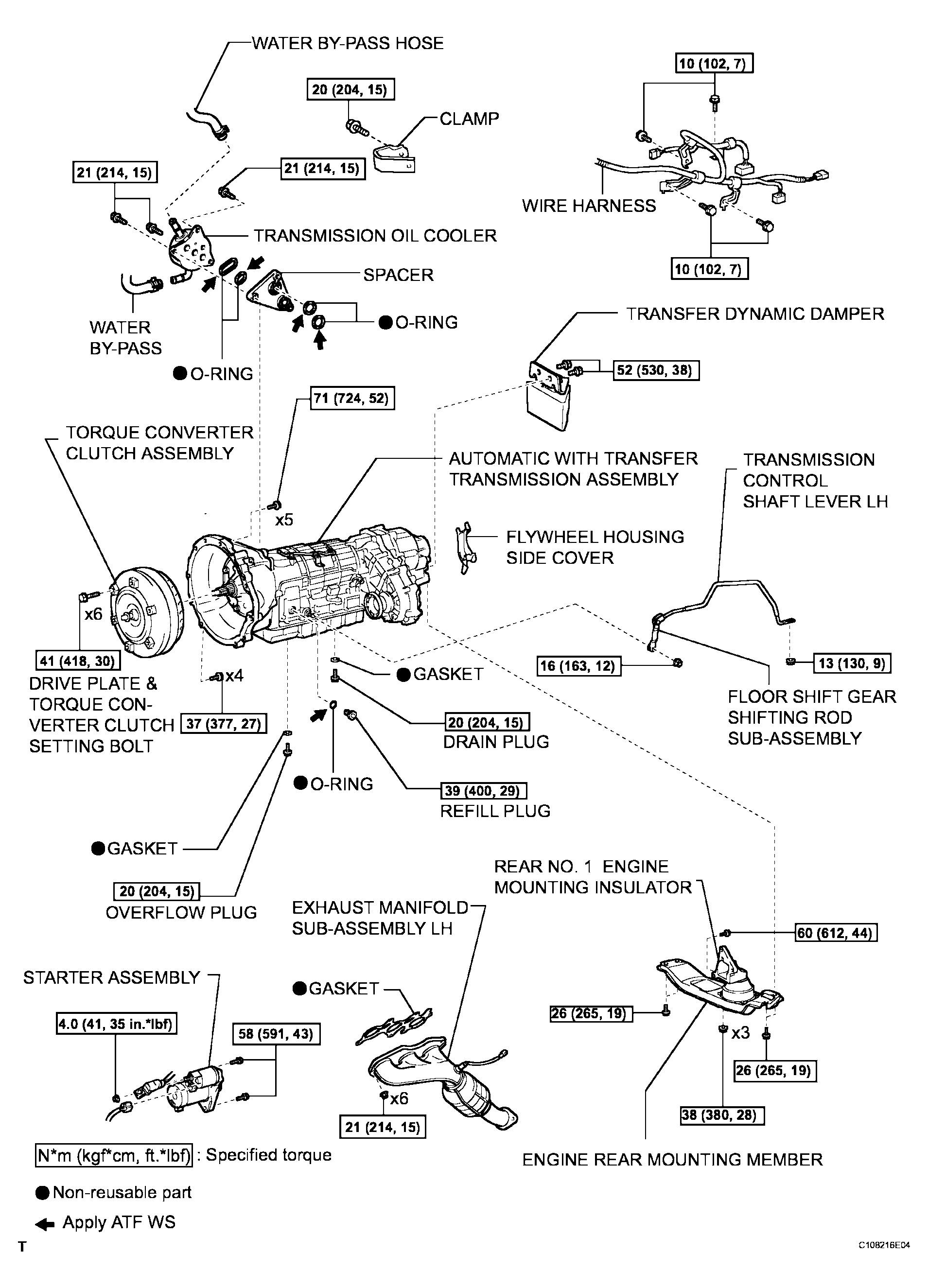

Fig 3: Automatic Transmission Assembly Replacement Components With Torque Specifications) (3 Of 3)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
