Section 2 (Clutch)
>>
Clutch Unit
>>
Components
Clutch Unit: Components
WARNING:
This page is about a different variant/trim than selected.

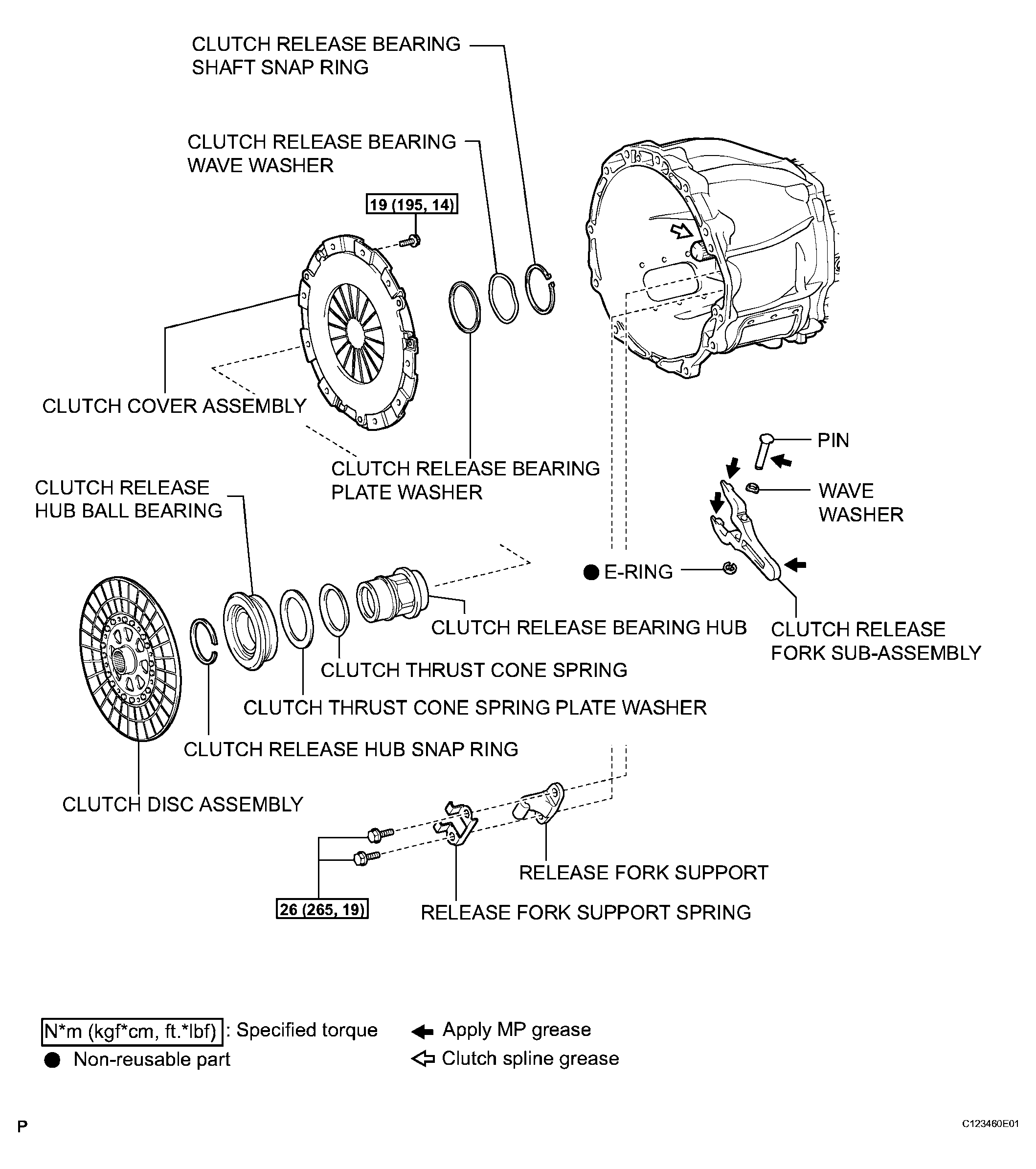

Fig 1: Clutch Unit Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
