Knock Sensor: Components

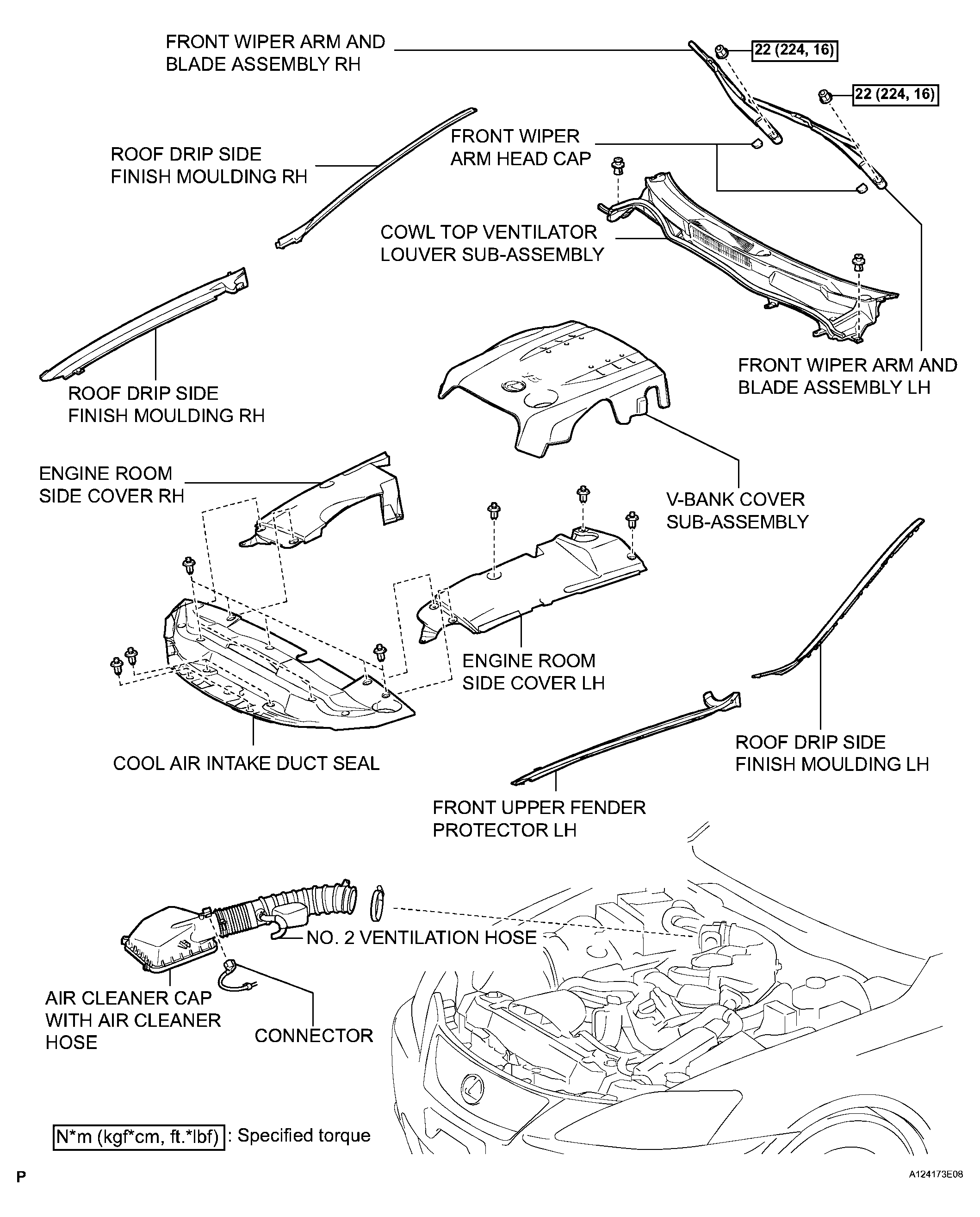

Fig 1: Exploded View Of Knock Sensor With Torque Specifications (1 Of 5)
G04043942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

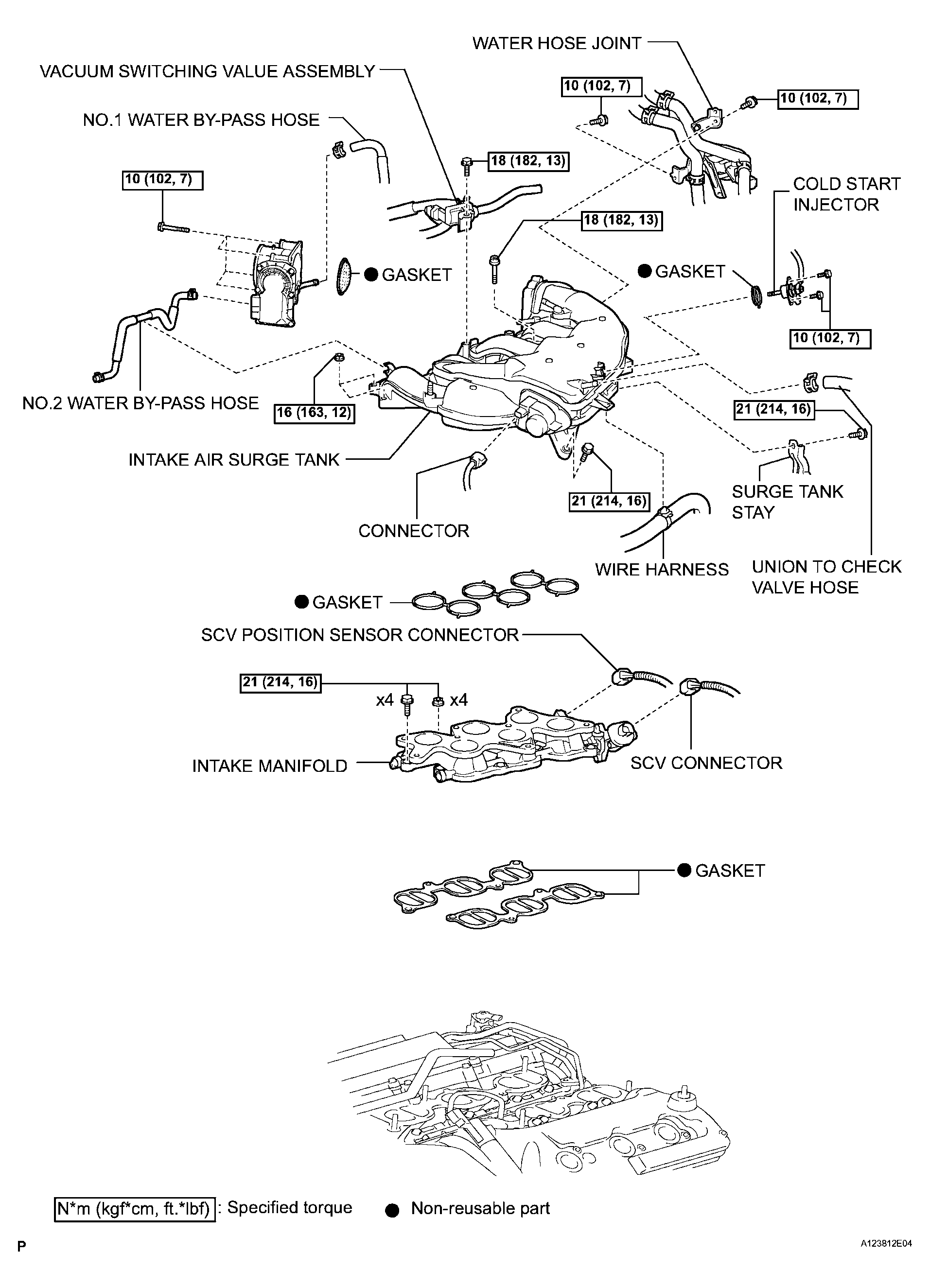

Fig 2: Exploded View Of Knock Sensor With Torque Specifications (2 Of 5)
G04043943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

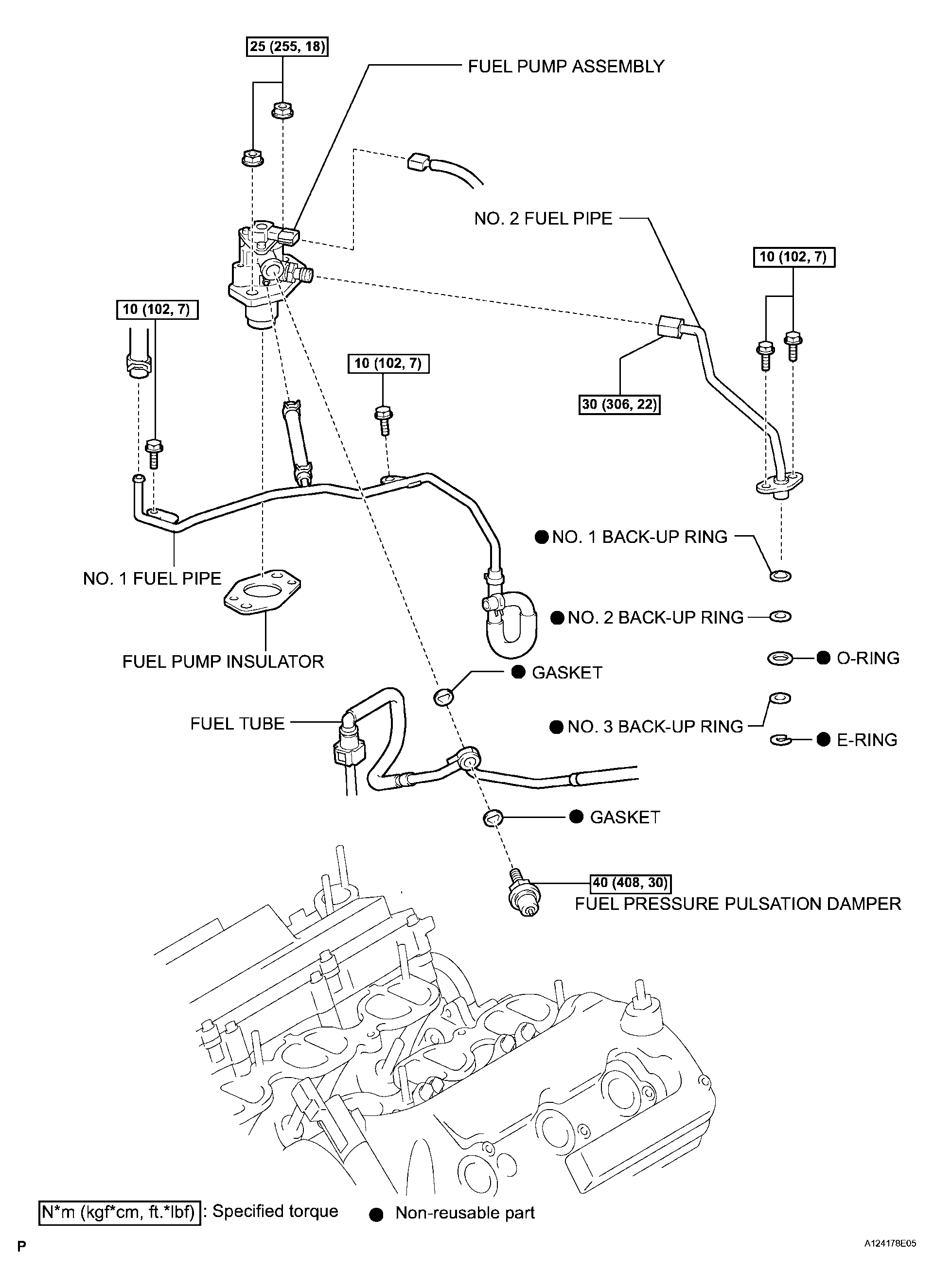

Fig 3: Exploded View Of Knock Sensor With Torque Specifications (3 Of 5)
G04043944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

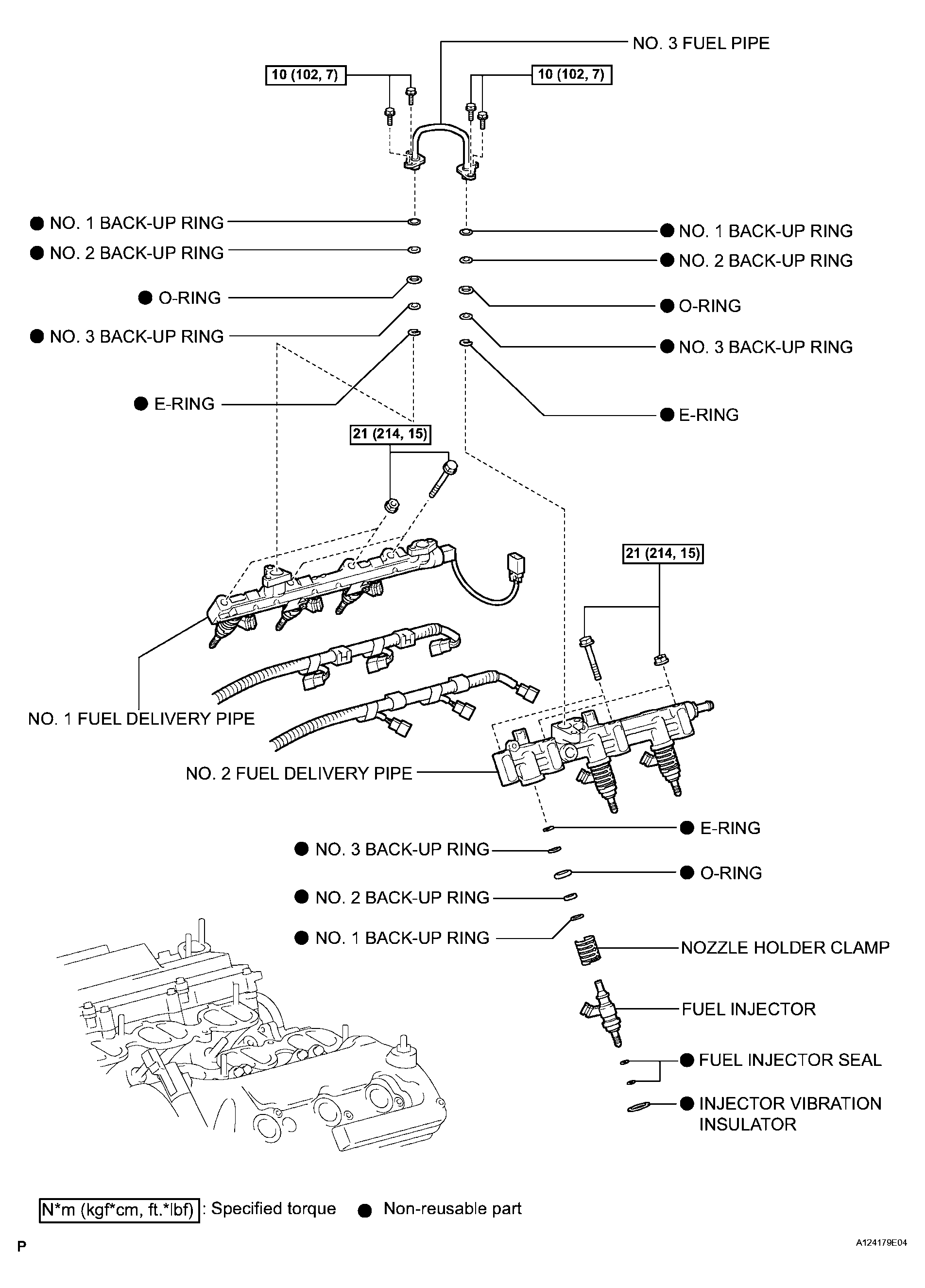

Fig 4: Exploded View Of Knock Sensor With Torque Specifications (4 Of 5)
G04043945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

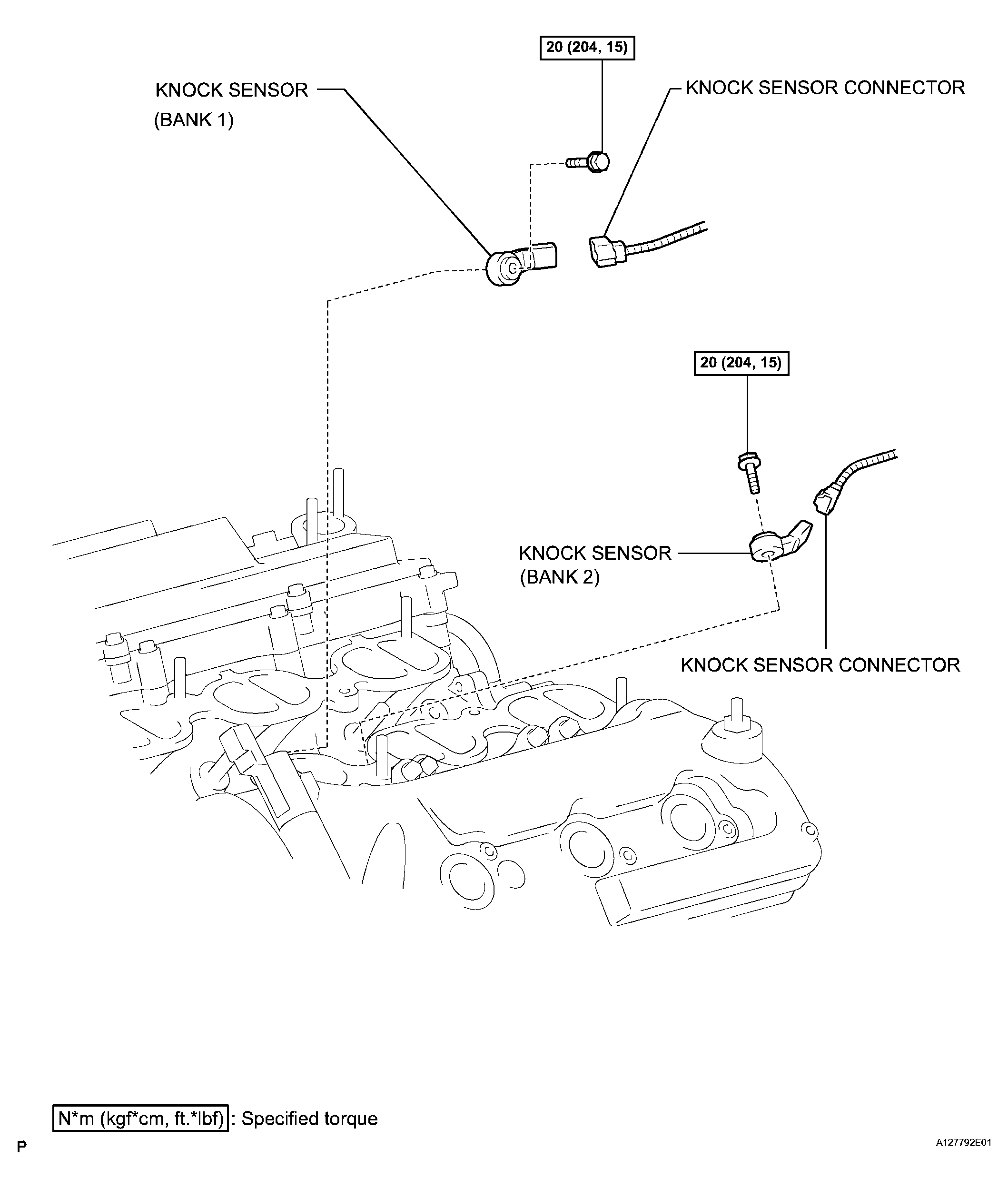

Fig 5: Exploded View Of Knock Sensor With Torque Specifications (5 Of 5)
G04043946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
