Transmission Control Cable ASSY (ATM): Replacement

SEPARATE BATTERY NEGATIVE TERMINAL
REMOVE SHIFT LEVER KNOB SUB-ASSY (See OVERHAUL )
REMOVE SHIFT LEVER KNOB SUB-ASSY (See OVERHAUL )
REMOVE CONSOLE UPPER PANEL GARNISH NO. 1 (SEE REPLACEMENT )
REMOVE CONSOLE UPPER PANEL GARNISH NO. 2 (SEE REPLACEMENT )
REMOVE CONSOLE PANEL UPPER (SEE REPLACEMENT )
REMOVE CONSOLE PANEL UPPER REAR (SEE REPLACEMENT )
SEPARATE TRANSMISSION CONTROL CABLE ASSY
1. Remove the nut and clip, separate the transmission control cable assy from the transmission control cable bracket.

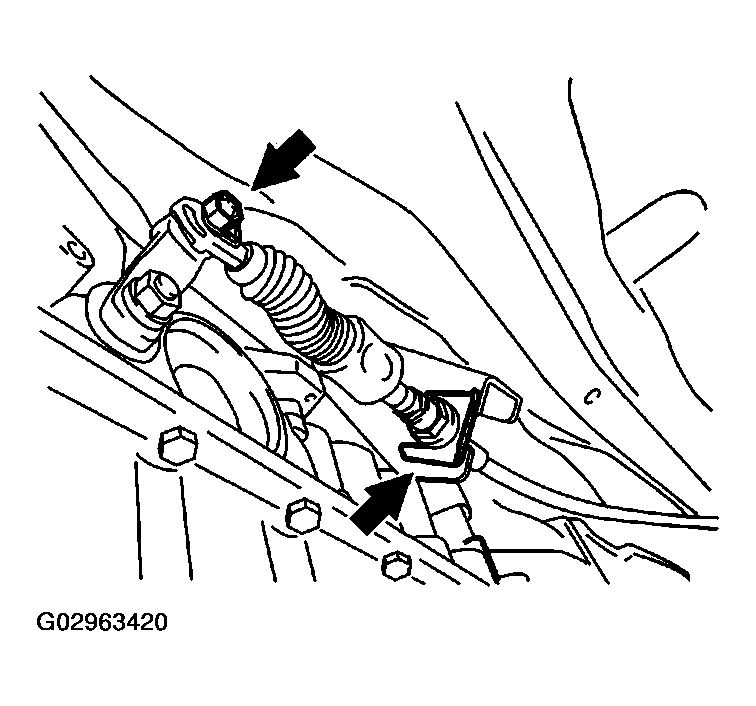

  Fig 1: Separating Transmission Control Cable Assy From Transmission Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove clip, separate the transmission control cable assy from the floor shift lever assy.
HINT:

When the transmission control cable end is pressed, it can be removed from the floor shift lever.

NOTE: The nut may be loosened (up to approx. 1 mm), however, never remove it.

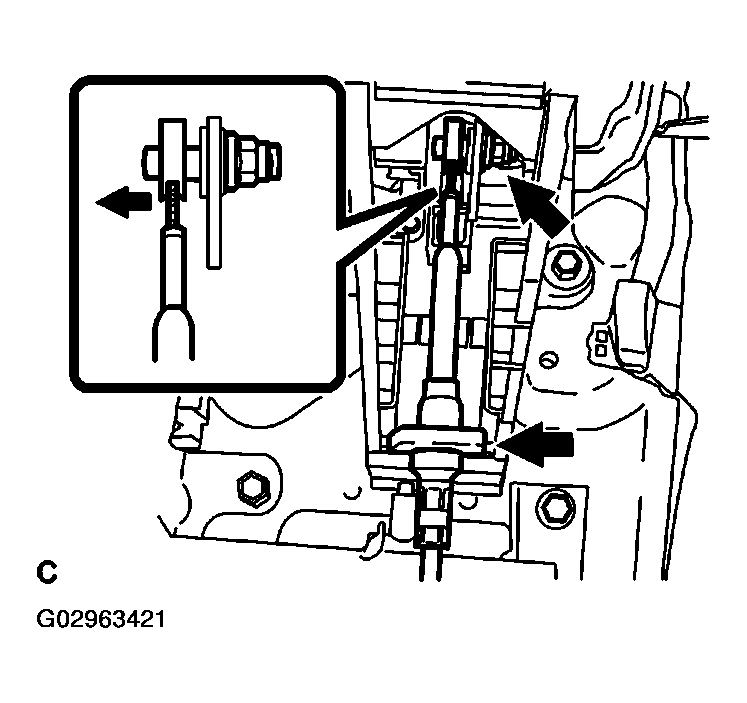

Fig 2: Separating Transmission Control Cable Assy From Floor Shift Lever Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION CONTROL CABLE ASSY
1. Remove the 4 nuts and pull out the transmission control cable assy.

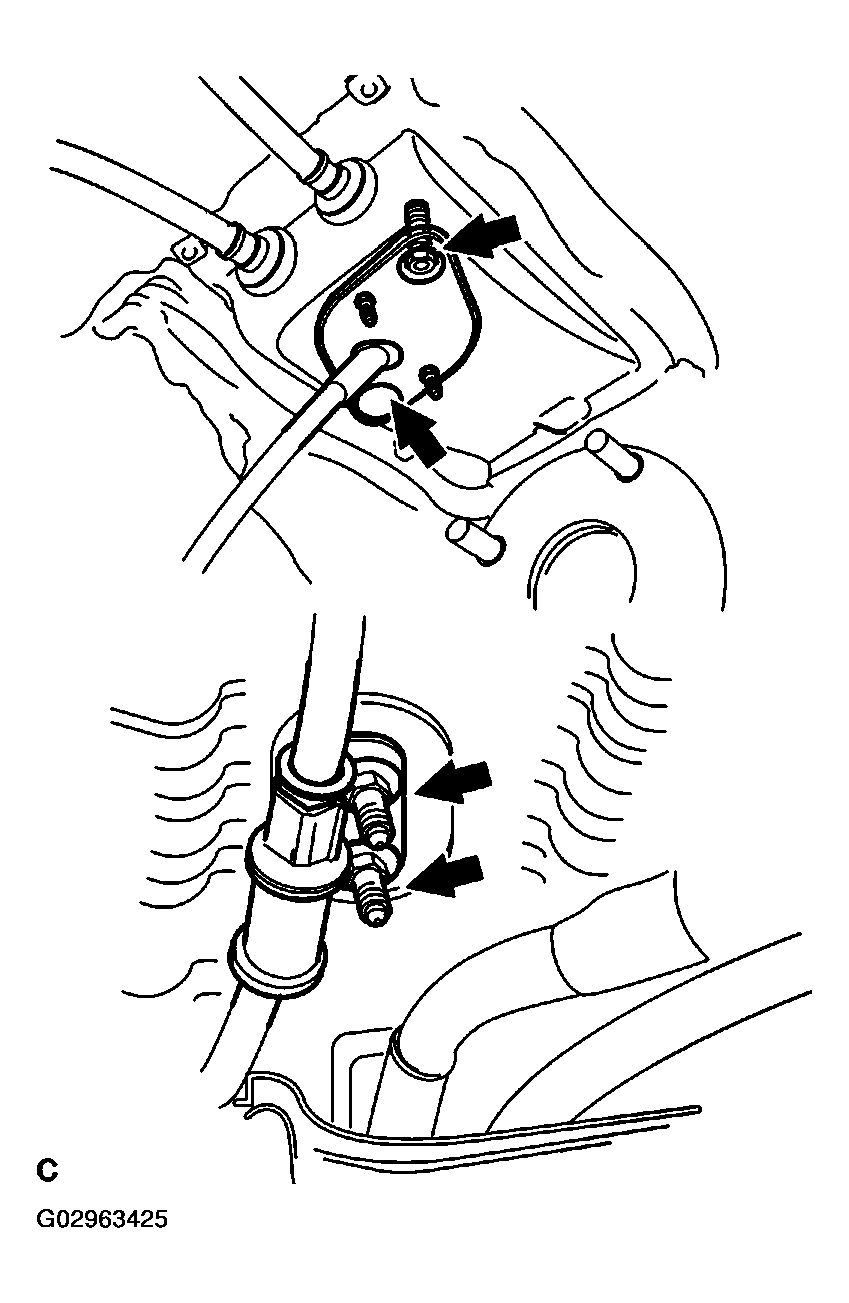

  Fig 3: Removing Transmission Control Cable Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL CABLE ASSY
1. Connect the transmission control cable assy with the nut and clip from the transmission control cable bracket.

  Fig 4: Connecting Transmission Control Cable Assy Nut & Clip From Transmission Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull in the transmission control cable assy to the body.
3. Connect the transmission control cable assy with the nut clip, from the floor shift lever assy.
  Torque: 12 N.m (122 kgf.cm, 9 ft.lbf) NOTICE:
  NOTE:
  - Protrusion facing upward.
  - When the nut is remove, be sure to tighten the nut.

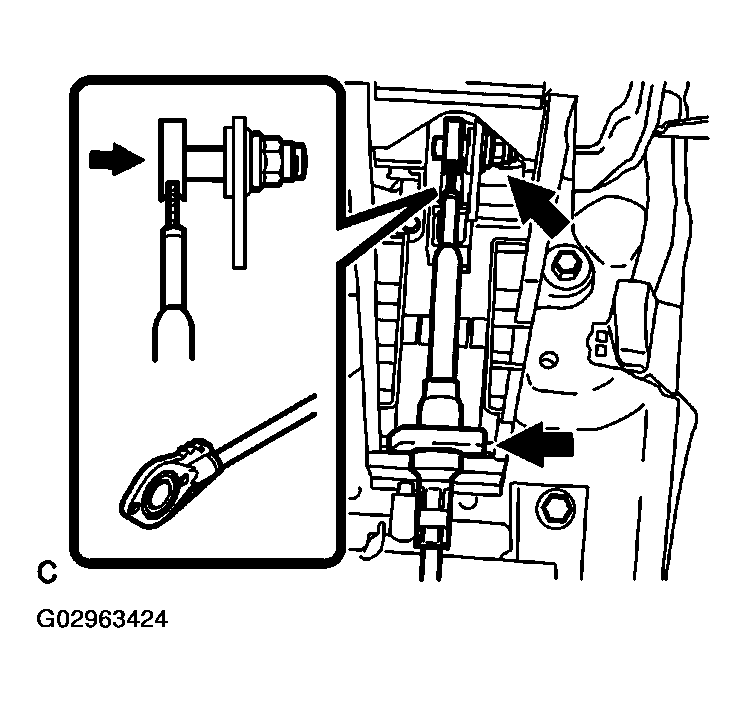

    Fig 5: Connecting Transmission Control Cable Assy Nut Clip From Floor Shift Lever Assy
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the transmission control cable assy with the 4 nuts.
  Torque: 5.0 N.m (51 kgf.cm, 40 in.lbf)

  Fig 6: Installing Transmission Control Cable Assy Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE PANEL UPPER REAR
INSTALL CONSOLE PANEL UPPER
INSTALL CONSOLE UPPER PANEL GARNISH NO. 1
INSTALL CONSOLE UPPER PANEL GARNISH NO. 2
INSTALL SHIFT LEVER KNOB SUB-ASSY (See OVERHAUL )
INSTALL SHIFT LEVER KNOB SUB-ASSY (See OVERHAUL )
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
