Stabilizer Control W/Bracket Valve ASSY (KDSS): Components

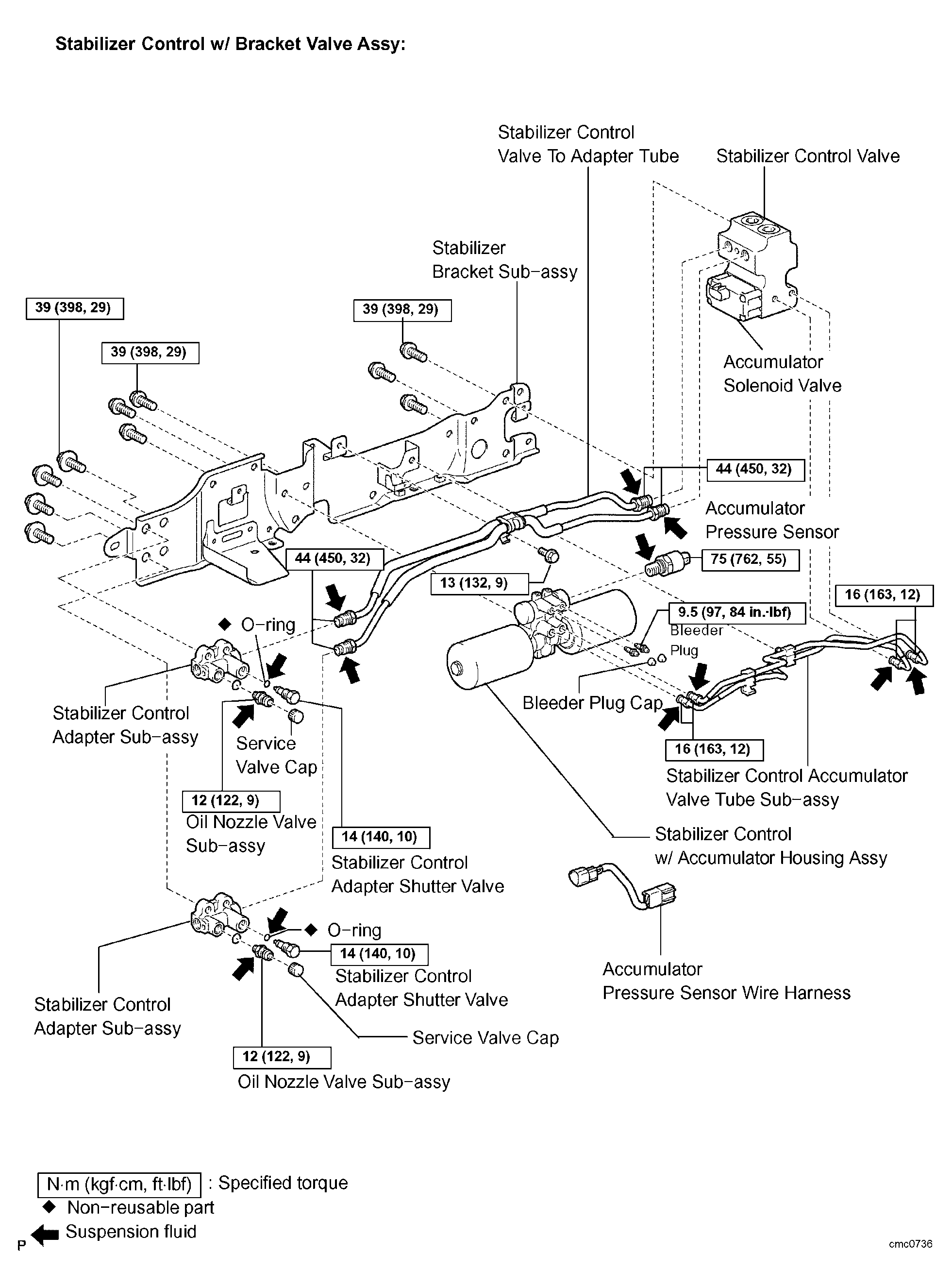

Fig 1: Identifying Stabilizer Control W/Bracket Value Assy Components (KDDSS) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

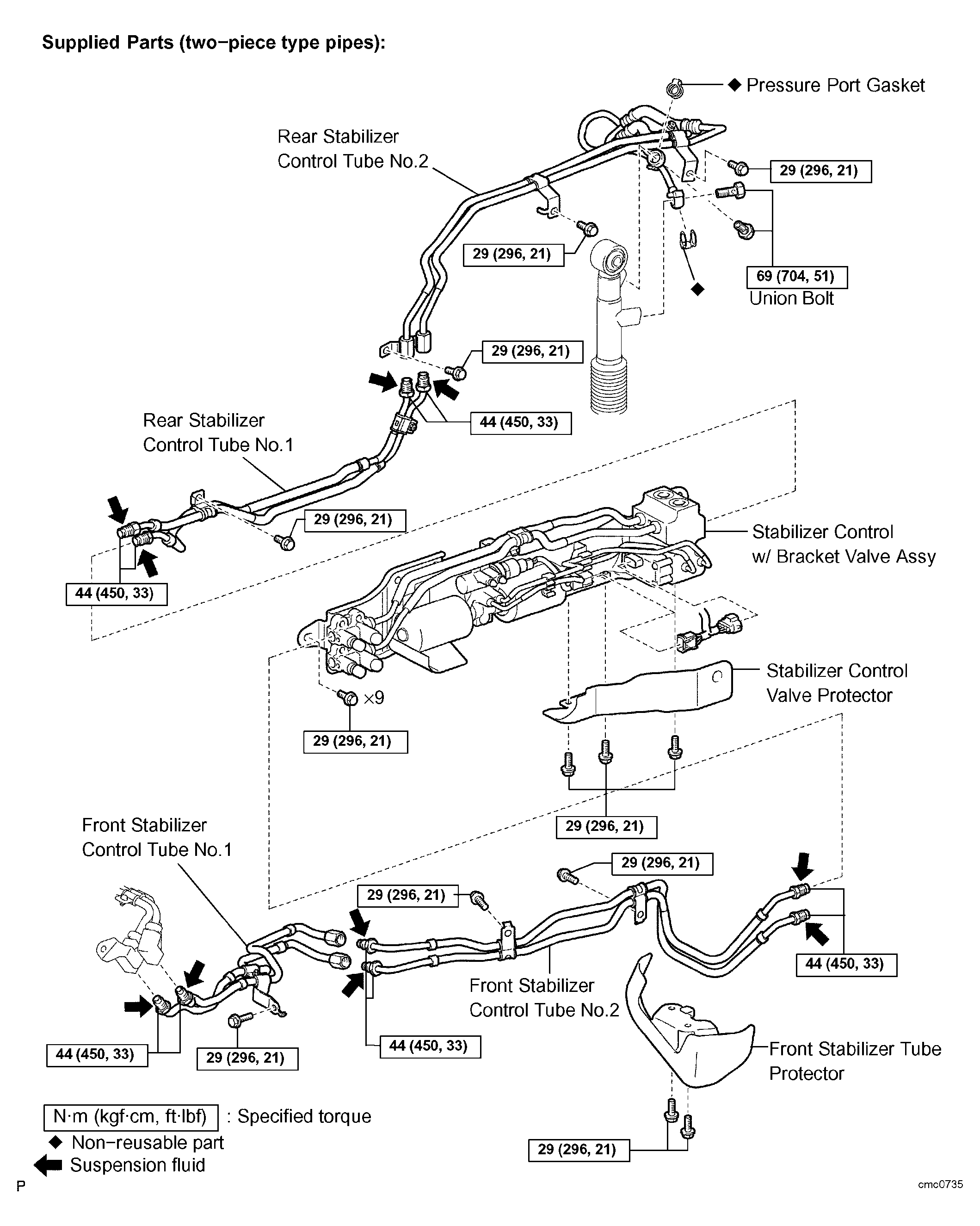

Fig 2: Identifying Stabilizer Control W/Bracket Value Assy Components (KDDSS) (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

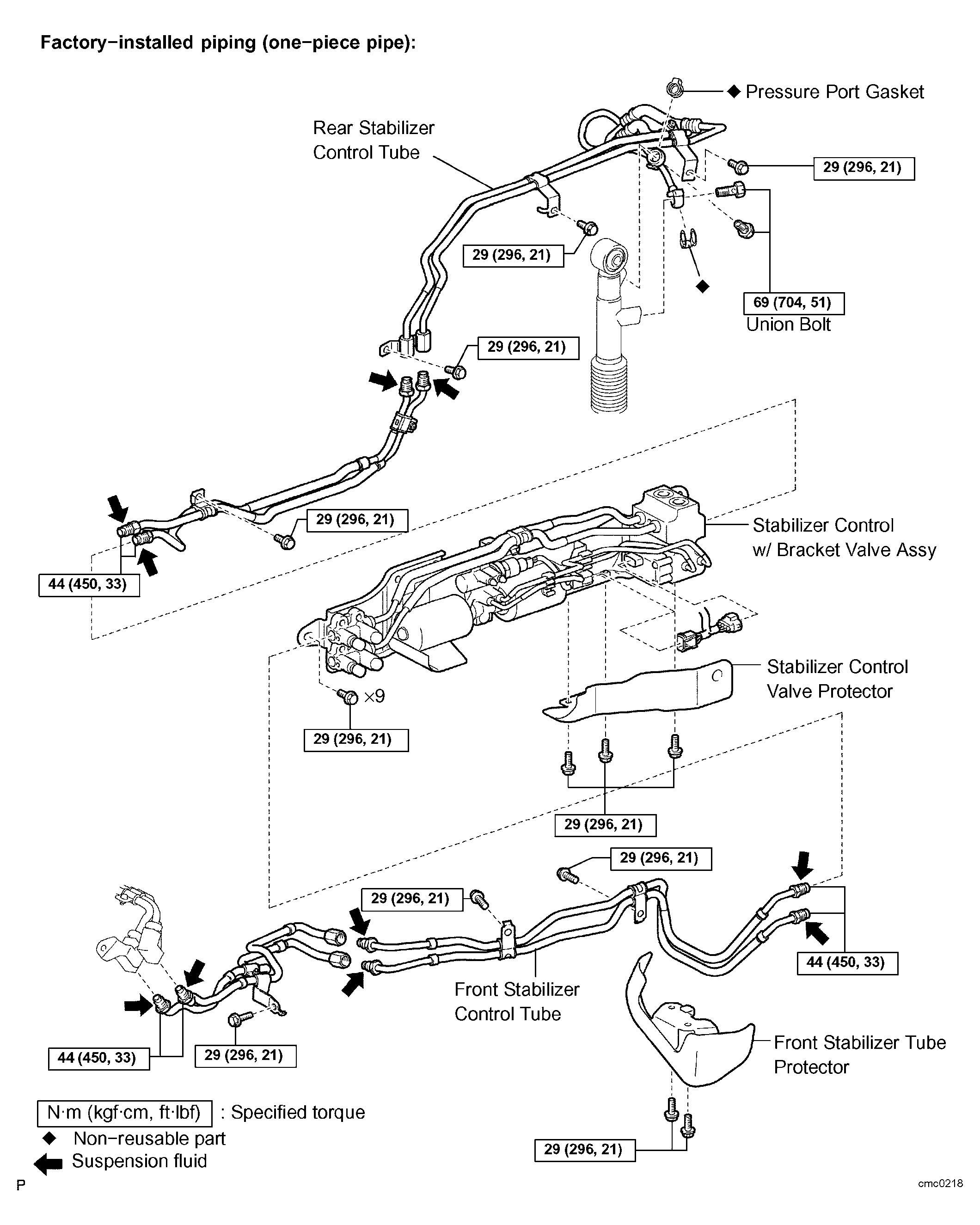

Fig 3: Identifying Stabilizer Control W/Bracket Value Assy Components (KDDSS) (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
