Front Stabilizer (KDSS): Components

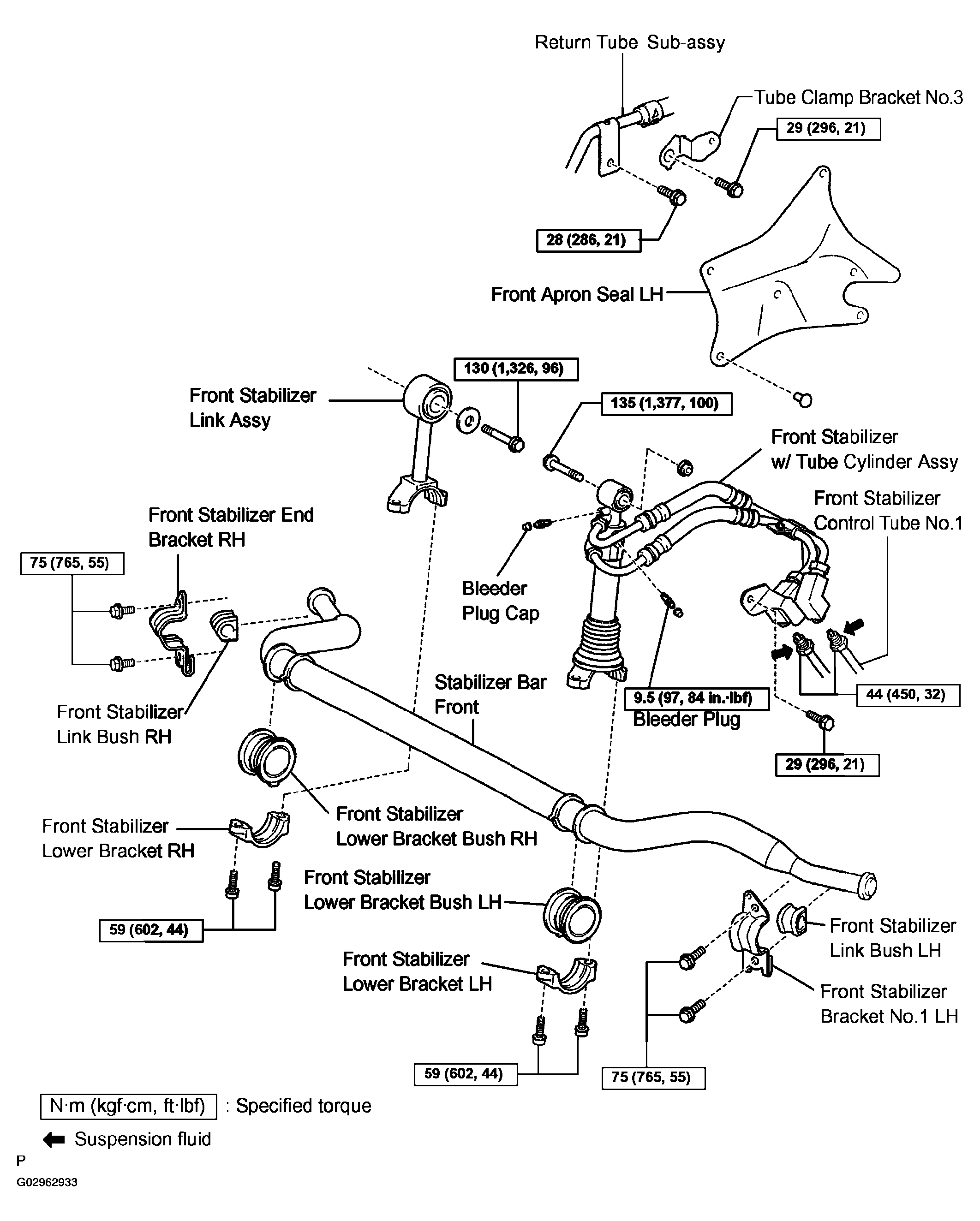

Fig 1: Identifying Front Stabilizer Components & Replacements (KDSS)

G02962933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
