Light Control Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2007 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

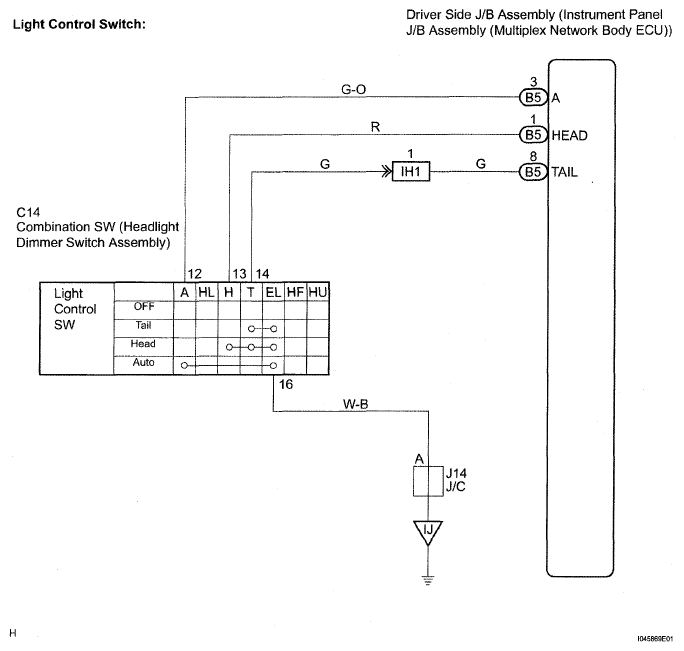

Fig 1: Identifying Light Control Switch Circuit Wiring Diagram (1 Of 2)
G05265738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

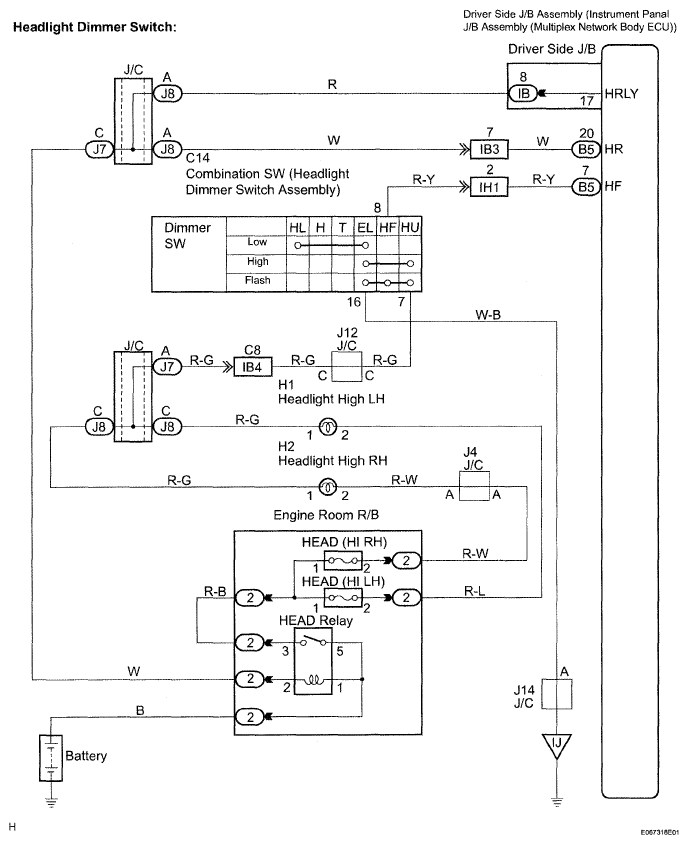

Fig 2: Identifying Light Control Switch Circuit Wiring Diagram (2 Of 2)
G05265739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
