License Plate Light Assembly: Components

WARNING: This page is about a different car, the 2007 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

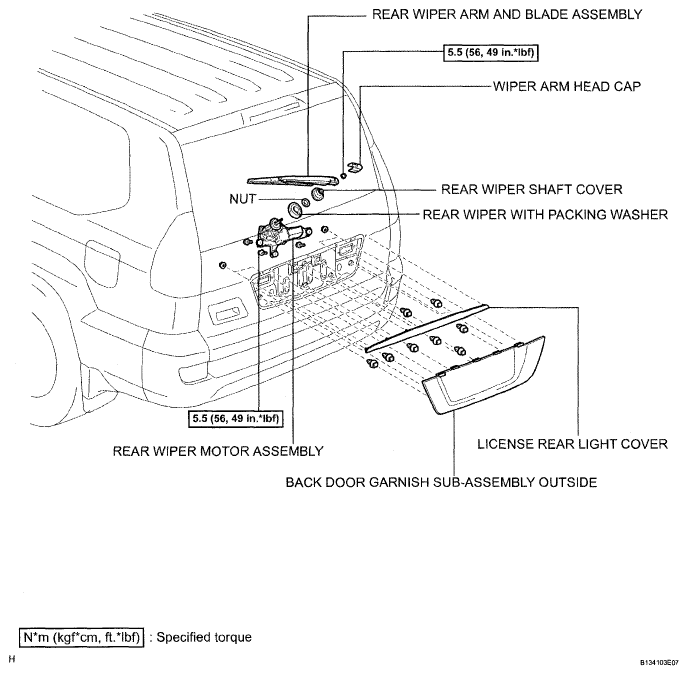

Fig 1: Identifying License Plate Light Assembly Replacement Components With Torque Specifications (1 Of 2)
G05265813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

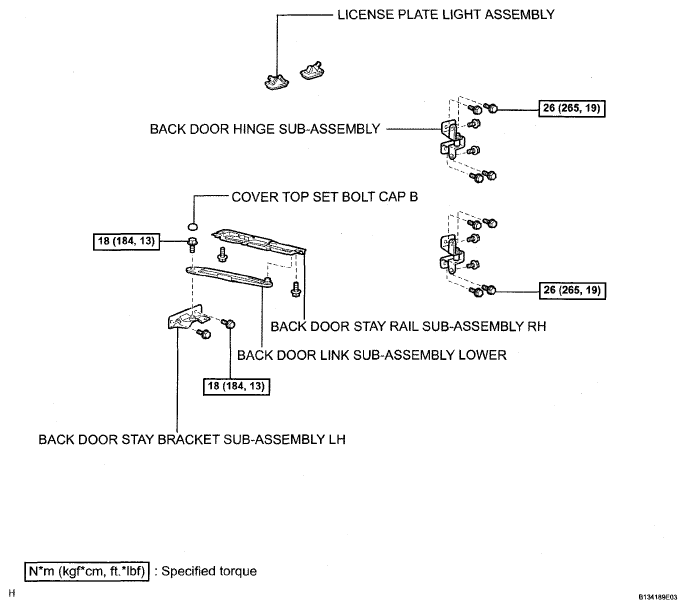

Fig 2: Identifying License Plate Light Assembly Replacement Components With Torque Specifications (2 Of 2)
G05265814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
