Side Airbag Sensor: Components

WARNING: This page is about a different car, the 2007 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

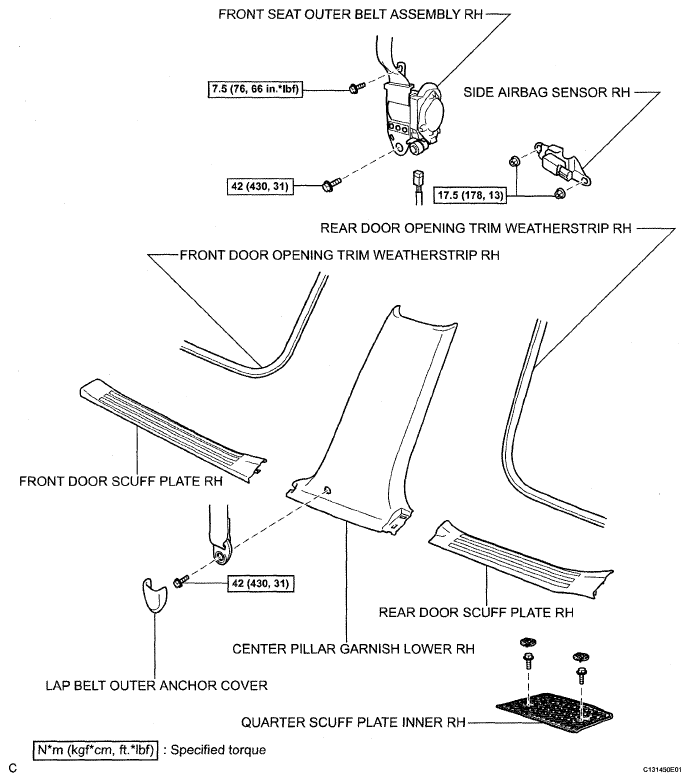

Fig 1: Identifying Side Airbag Sensor Replacement Components With Torque Specifications
G05265586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
